FJX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | Swivel | for 1" Hose ID

FJX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | Swivel | for 1" Hose ID

Sale price$41.16

by Kurt Hydraulics
FJX-WHP - 37 deg. JIC Female Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $38.69
40–79 $34.99
80+ $30.87
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • 1in Female JIC

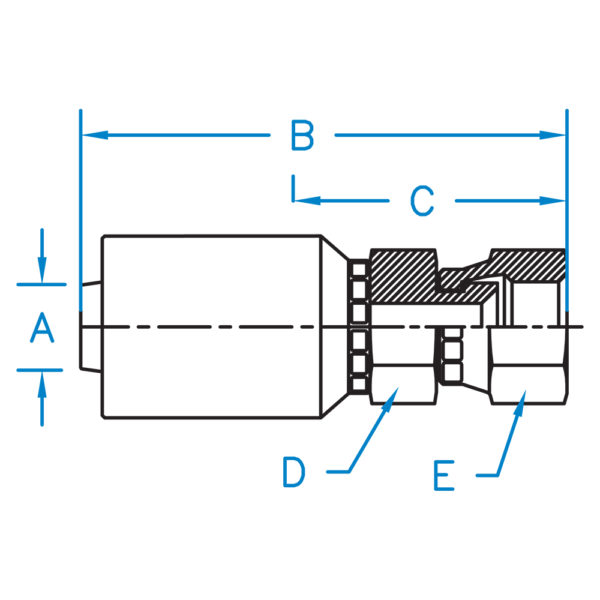

Part Number A B C D E Hose ID
(In)		 Thread
FJX-12-12-WHP 0.750 5.380 2.170 2-1/4 2-1/4 3/4" 1-1/16-12
FJX-16-16-WHP 1.000 4.290 1.760 1-3/8 1-1/2 1.000" 1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
