FJX-16-16-W by Kurt Hydraulics | Female 37 Degree JIC | Swivel | for 1" Hose ID

FJX-16-16-W by Kurt Hydraulics | Female 37 Degree JIC | Swivel | for 1" Hose ID

Sale price$25.81
by Kurt Hydraulics
FJX-W - 37 deg. JIC Female Swivel
Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $24.26
40–79 $21.94
80+ $19.36
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • 1in Female JIC

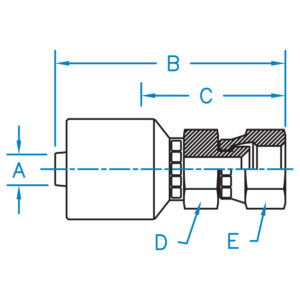

Part Number A B C D E Hose ID
(In)		 Thread
FJX-06-04-W 0.375 2.405 1.035 11/16 9/16 3/8" 7/16-20
FJX-06-05-W 0.375 2.405 1.035 11/16 5/8 3/8" 1/2-20
FJX-06-06-W 0.375 2.500 0.719 3/4 3/4 3/8" 9/16-18
FJX-06-08-W 0.375 2.470 1.240 3/4 7/8 3/8" 3/4-16
FJX-06-10-W 0.375 2.800 1.430 7/8 1.000 3/8" 7/8-14
FJX-08-06-W 0.500 2.524 1.180 11/16 11/16 1/2" 9/16-18
FJX-08-08-W 0.500 2.640 1.300 7/8 7/8 1/2" 3/4-16
FJX-08-10-W 0.500 2.800 1.460 7/8 1-1/16 1/2" 7/8-14
FJX-08-12-W 0.500 2.989 1.558 1.000 1-1/4 1/2" 1-1/16-12
FJX-10-08-W 0.625 3.510 1.410 7/8 7/8 5/8" 3/4-16
FJX-10-10-W 0.625 3.380 1.520 7/8 1-1/16 5/8" 7/8-14
FJX-10-12-W 0.625 N/A N/A N/A N/A 5/8" 1-1/16-12
FJX-12-08-W 0.750 3.294 1.415 1.000 7/8 3/4" 3/4-16
FJX-12-10-W 0.750 3.280 1.490 1-1/16 1-1/16 3/4" 7/8-14
FJX-12-12-W 0.750 3.380 1.590 1-1/16 1-1/4 3/4" 1-1/16-12
FJX-12-14-W 0.750 3.380 1.590 1-1/16 1-1/2 3/4" 1-3/16-12
FJX-12-16-W 0.750 3.450 1.660 1-3/8 1-1/2 3/4" 1-5/16-12
FJX-16-12-W 1.000 3.390 1.600 1-3/8 1-1/4 1.000" 1-1/16-12
FJX-16-16-W 1.000 3.780 1.670 1-3/8 1-1/2 1.000" 1-5/16-12
FJX-16-20-W 1.000 4.020 1.900 1-11/16 2.000 1.000" 1-5/8-12
FJX-20-16-W 1.250 N/A N/A N/A N/A 1-1/4" 1-5/16-12
FJX-20-20-W 1.250 4.370 1.920 1-11/16 2.000 1-1/4" 1-5/8-12
FJX-20-24-W 1.250 4.540 2.090 2.000 2-1/4 1-1/4" 1-7/8-12
FJX-24-24-W 1.250 4.760 2.160 2.000 2-1/4 1-1/2" 1-7/8-12
FJX-32-32-W 2.000 5.950 2.700 2-1/2 2-7/8 2.000" 2-1/2-12


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
