FJX-05-06-SST by Kurt Hydraulics | Jump Size | Female JIC | Swivel | PTFE Coupling | for 5/16" Hose ID
by Kurt Hydraulics
FJX-SST - 37 deg. JIC Female Swivel - PTFE Couplings
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.55 |
| 40–79 | $10.45 |
| 80+ | $9.22 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Special Properties:

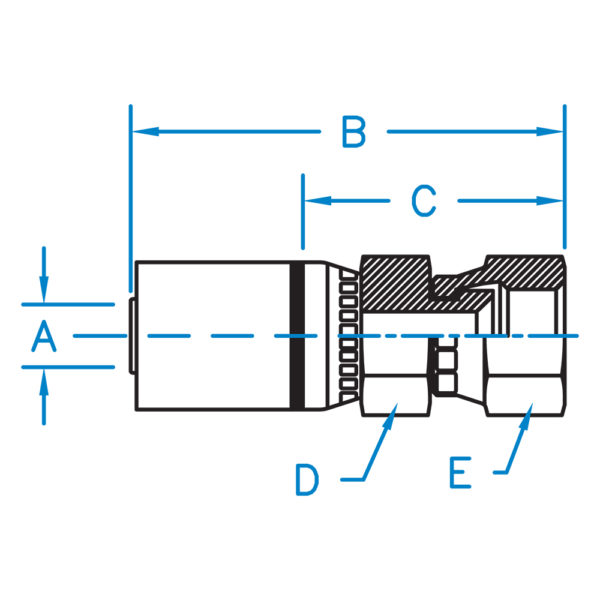

| Part Number | A | B | C | D | E |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|
| FJX-03-04-SST | 0.187 | 2.240 | 1.437 | 5/8 | 5/8 | 3/16" | 7/16-20 |
| FJX-03-05-SST | 0.187 | 2.240 | 1.437 | 5/8 | 3/4 | 3/16" | 1/2-20 |
| FJX-04-04-SST | 0.250 | 2.531 | 1.437 | 9/16 | 5/8 | 1/4" | 7/16-20 |
| FJX-04-05-SST | 0.250 | 2.531 | 1.437 | 5/8 | 3/4 | 1/4" | 1/2-20 |
| FJX-04-06-SST | 0.250 | 2.531 | 1.437 | 9/16 | 3/4 | 1/4" | 9/16-18 |
| FJX-05-04-SST | 0.312 | 2.555 | 1.245 | 5/8 | 9/16 | 5/16" | 7/16-20 |
| FJX-05-05-SST | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| FJX-05-06-SST | 0.312 | 2.507 | 1.197 | 5/8 | 11/16 | 5/16" | 9/16-18 |
| FJX-06-06-SST | 0.375 | 2.813 | 1.375 | 3/4 | 3/4 | 3/8" | 9/16-18 |
| FJX-06-08-SST | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| FJX-07-06-SST | 0.437 | 2.809 | 1.339 | 3/4 | 11/16 | 7/16" | 9/16-18 |
| FJX-07-08-SST | 0.437 | 2.820 | 1.350 | 3/4 | 7/8 | 7/16" | 3/4-16 |
| FJX-08-06-SST | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| FJX-08-08-SST | 0.500 | 3.156 | 1.500 | 7/8 | 15/16 | 1/2" | 3/4-16 |
| FJX-08-10-SST | 0.500 | 3.156 | 1.500 | 7/8 | 1-1/16 | 1/2" | 7/8-14 |
| FJX-10-08-SST | 0.625 | 3.240 | 1.500 | 7/8 | 15/16 | 5/8" | 3/4-16 |
| FJX-10-10-SST | 0.625 | 3.350 | 1.500 | 7/8 | 1-1/16 | 5/8" | 7/8-14 |
| FJX-10-12-SST | 0.625 | 3.450 | 1.625 | 1-1/8 | 1-1/4 | 5/8" | 1-1/16-12 |
| FJX-12-12-SST | 0.750 | 3.437 | 1.625 | 1-1/8 | 1-1/4 | 3/4" | 1-1/16-12 |
| FJX-12-14-SST | 0.750 | 3.437 | 1.625 | 1-1/8 | 1-1/4 | 3/4" | 1-3/16-12 |
| FJX-12-16-SST | 0.750 | 3.500 | 1.687 | 1-3/8 | 1-1/2 | 3/4" | 1-5/16-12 |
| FJX-16-12-SST | 1.000 | 3.620 | 1.625 | 1-1/8 | 1-1/4 | 1.000" | 1-1/16-16 |
| FJX-16-16-SST | 1.000 | 4.062 | 1.687 | 1-3/8 | 1-1/2 | 1.000" | 1-5/16-12 |
