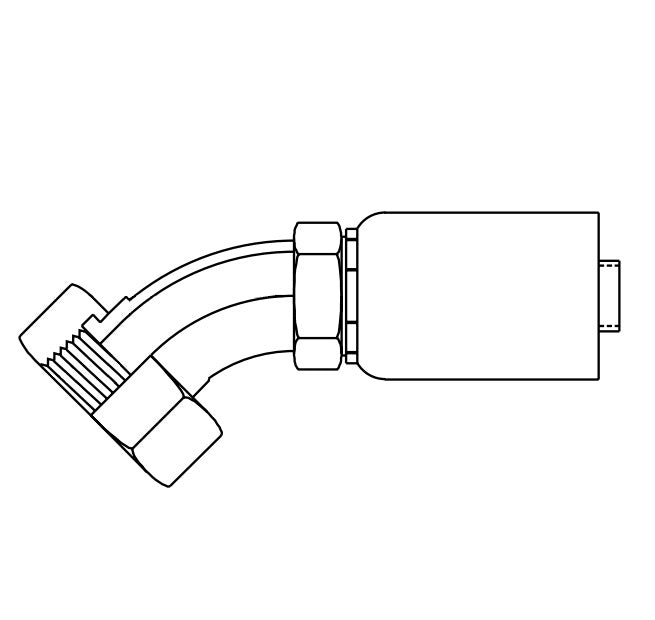

FJ9481-1212S Synflex by Danfoss | Polyon Swage Hose Fitting | 45° Elbow | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Carbon Steel
Synflex by Danfoss
Polyon Swage Hose Fitting - Female O-Ring Face Seal Swivel - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $108.02 |
| 20–59 | $97.68 |
| 60+ | $86.19 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel Part Number |
Terminal End | Thread | Hose Size | A | Cut Off Factor D |
EØ | H | Hex 1 | Hex 2 | |||||
| Dash Size | DN | Dash Size | mm | in | mm | in | mm | in | mm | in | in | in | ||
| FJ9481-0404S | -04 | 9/16 -18 | 6 | -04 | 58,4mm | 2.30" | 35,6mm | 1.40" | 3,8mm | 0.15" | 10,4mm | 0.41" | 0.69" | 0.62" |
| FJ9481-0606S | -06 | 11/16 - 16 | 10 | -06 | 68,6mm | 2.70" | 32,0mm | 1.26" | 6,1mm | 0.24" | 10,9mm | 0.43" | 0.81" | 0.75" |
| FJ9481-0808S | -08 | 13/16 - 16 | 12 | -08 | 82,6mm | 3.25" | 40,9mm | 1.61" | 9,4mm | 0.37" | 15,0mm | 0.59" | 0.94" | 0.88" |
| FJ9481-1212S | -12 | 1-3/16-12 | 19 | -12 | 96,8mm | 3.81" | 49,8mm | 1.96" | 14,7mm | 0.58" | 21,1mm | 0.83" | 1.38" | 1.12" |
