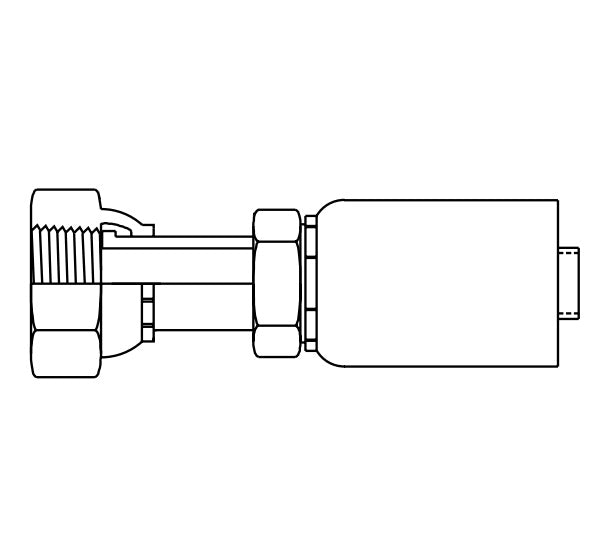

FJ9480-0404S Synflex by Danfoss | Polyon Swage Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Carbon Steel
Synflex by Danfoss
Polyon Swage Hose Fitting - Female O-Ring Face Seal Swivel - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $90.99 |
| 20–59 | $82.28 |
| 60+ | $72.60 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Ends Configuration:
Material(s):
Compatible Series:
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel Part Number |
Terminal End | Thread | Hose Size | A | Cut Off Factor D |
EØ | Hex 1 | Hex 2 | ||||
| Dash Size | DN | Dash Size | mm | in | mm | in | mm | in | in | in | ||
| FJ9480-0404S | -04 | 9/16-18 | 6 | -04 | 61,7mm | 2.43" | 39,1mm | 1.54" | 3,8mm | 0.15" | 0.69" | 0.62" |
| FJ9480-0406S | -04 | 9/16-18 | 10 | -06 | 65,5mm | 2.58" | 28,7mm | 1.13" | 4,3mm | 0.17" | 0.69" | 0.75" |
| FJ9480-0606S | -06 | 11/16-16 | 10 | -06 | 72,6mm | 2.86" | 36,1mm | 1.42" | 6,6mm | 0.26" | 0.81" | 0.75" |
| FJ9480-0608S | -06 | 11/16-16 | 12 | -08 | 74,2mm | 2.92" | 32,5mm | 1.28" | 6,6mm | 0.26" | 0.81" | 0.88" |
| FJ9480-0808S | -08 | 13/16-16 | 12 | -08 | 85,1mm | 3.35" | 43,4mm | 1.71" | 9,7mm | 0.38" | 0.94" | 0.88" |
| FJ9480-1008S | -10 | 1-14 | 12 | -08 | 80,8mm | 3.18" | 38,9mm | 1.53" | 9,7mm | 0.38" | 1.12" | 0.88" |
| FJ9480-1010S | -10 | 1-14 | - | -10 | - | 3.63" | - | 1.81" | - | 0.50" | 1.12" | 1.00" |
| FJ9480-1212S | -12 | 1-3/16-12 | 19 | -12 | 92,7mm | 3.65" | 45,7mm | 1.80" | 14,7mm | 0.58" | 1.38" | 1.12" |
| FJ9480-1616S | -16 | 1-7/16-12 | 25 | -16 | 112,0mm | 4.41" | 51,3mm | 2.02" | 19,8mm | 0.78" | 1.62" | 1.38" |
