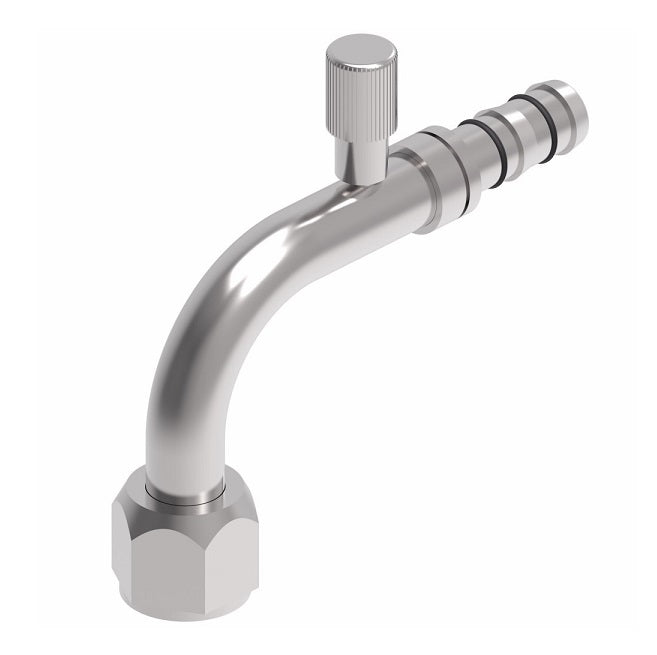

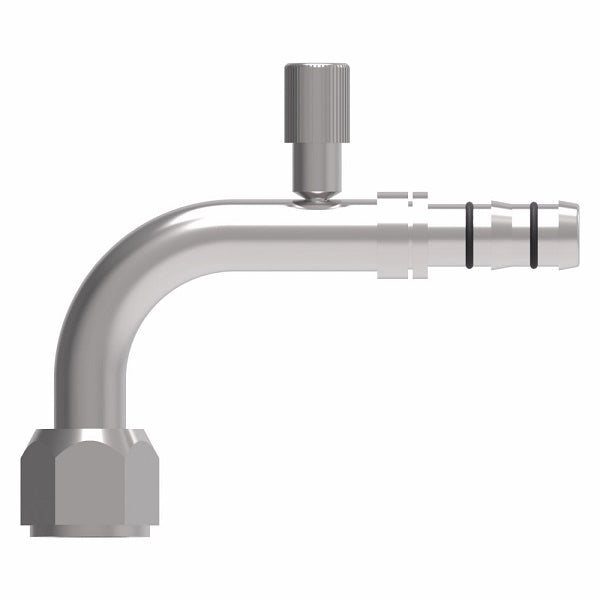

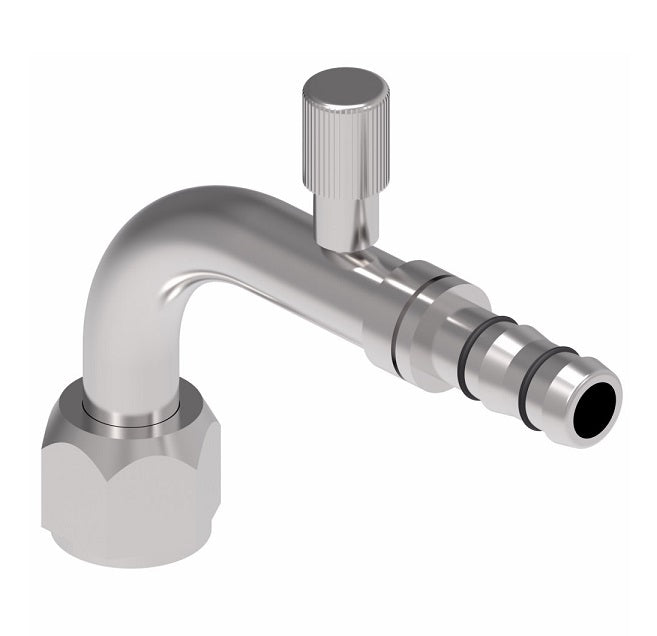

FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel
FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel
FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel

FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel

Sale price$56.52
Buy more, save moreDiscounts applied in cart/checkout.
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3892-01-1010S M24 x 1.5 -10 4.88" 3.33" 0.63 1.89" 1.125" FF14173 22546-15 FF90178-15

Additional Product Data:

Brand:
  • E-Z Clip
Shape:

90 Degree

Ends Configuration:
  • M24 Female O-Ring Long Pilot
  • 5/8in Hose Barb

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
