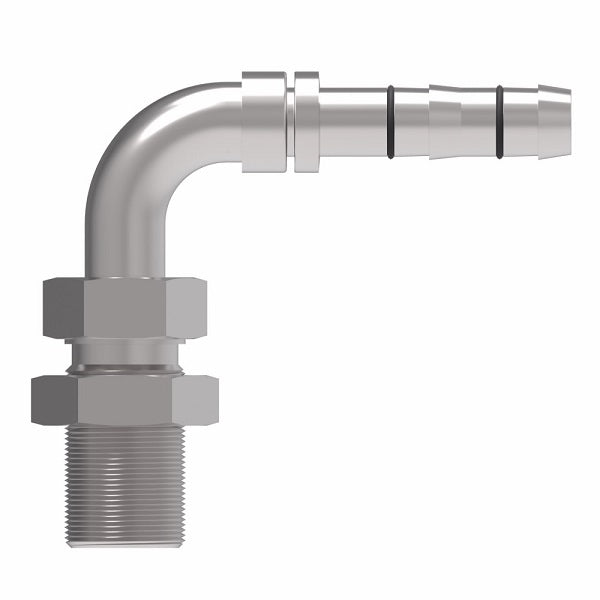

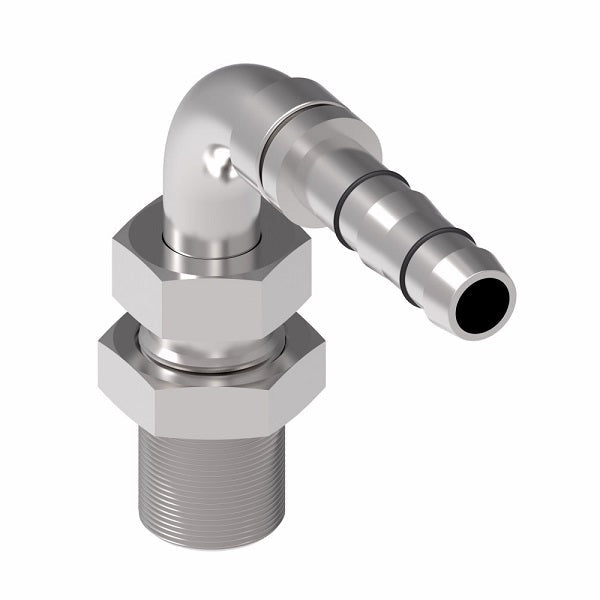

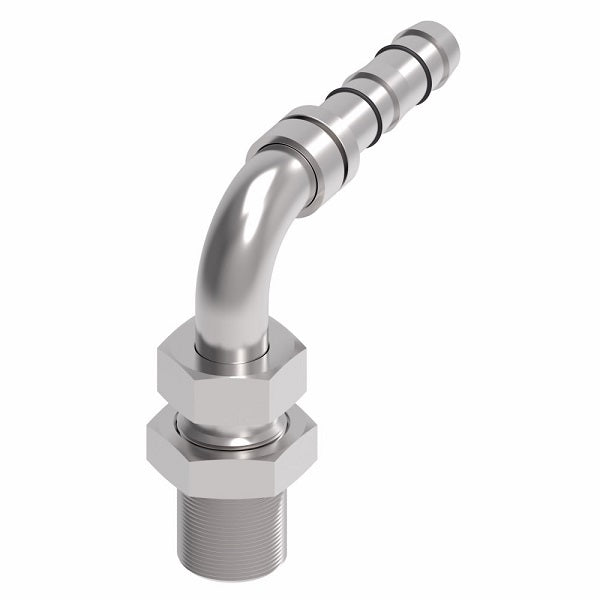

FJ3514-0810S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -08 Male O-Ring Pilot x -10 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Additional Information: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
| FJ3514-0606S | 5/8-18 | -06 | 2.50" | 0.98" | 2.15" | 0.94" | FF14171 |
| FJ3514-0808S | 3/4-16 | -08 | 2.74" | 1.20" | 2.61" | 1.00' | FF14172 |
| FJ3514-0810S | 3/4-16 | -10 | - | - | - | - | FF14173 |
| FJ3514-1010S | 7/8-14 | -10 | 3.08" | 1.53" | 3.26" | 1.13" | FF14173 |
| FJ3514-1012S | 7/8-14 | -12 | 3.11" | 1.53" | 3.26" | 1.13" | FF14174 |
| FJ3514-1212 | 1-1/16-14 | -12 | 3.69" | 2.11" | 3.78" | 1.38" | FF14174 |
| FJ3514-1216S | 1-1/16-14 | -16 | 3.79" | 2.12" | 3.80 | 1.06" | FF14401 |
Additional Product Data:
Brand:
Shape:
90 Degree
Material(s):
Compatible Series:
