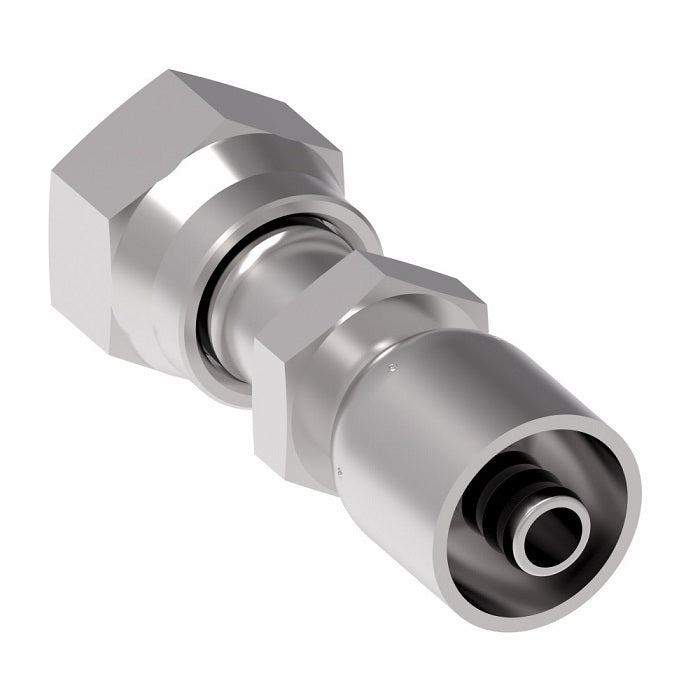

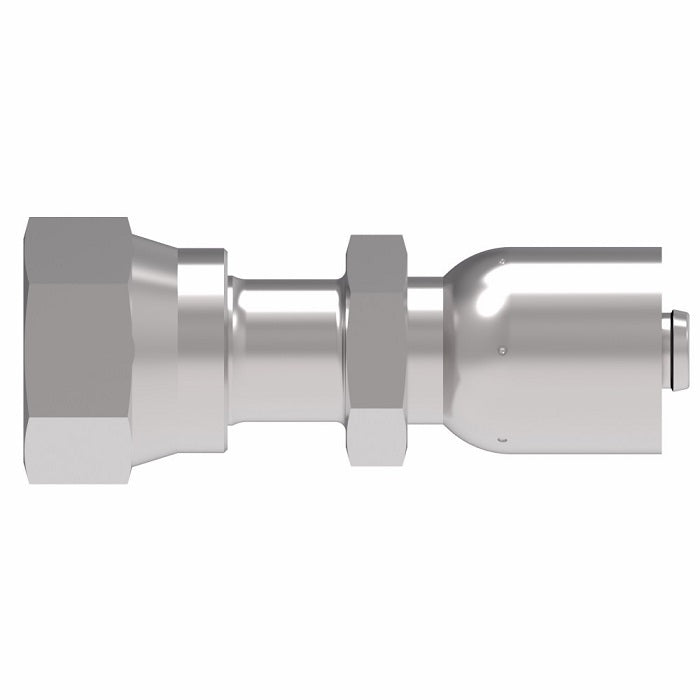

FJ3468-0810S Aeroquip by Danfoss | Female ORS Swivel 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | Hex |
| FJ3468-0404S | -04 | 9/16-18 | 1.83" | 1.05" | 0.69" |
| FJ3468-0606S | -06 | 11/16-16 | 1.99" | 1.21" | 0.81" |
| FJ3468-0806S | -06 | 13/16-16 | 2.15" | 1.36" | 0.94" |
| FJ3468-0608S | -08 | 11/16-16 | 2.07" | 1.28" | 0.81" |
| FJ3468-0808S | -08 | 13/16-16 | 2.16" | 1.38" | 0.94" |
| FJ3468-0810S | -10 | 13/16-16 | 2.25" | 1.37" | 0.94" |
| FJ3468-1010S | -10 | 1-14 | 2.34" | 1.46" | 1.13" |
| FJ3468-1012S | -12 | - | - | - | - |
| FJ3468-1210S | -10 | 1-3/16-12 | 2.50" | 1.62" | 1.38" |
| FJ3468-1212S | -12 | 1-3/16-12 | 2.50" | 1.62" | 1.38" |
| FJ3468-1216S | -16 | 1-3/16-12 | 2.85" | 1.86" | 1.38" |
| FJ3468-1616S | -16 | 1-7/16-12 | 2.80" | 1.82" | 1.63" |
| FJ3468-2020S | -20 | 1-11/16-12 | 3.10" | 1.91" | 1.88" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
