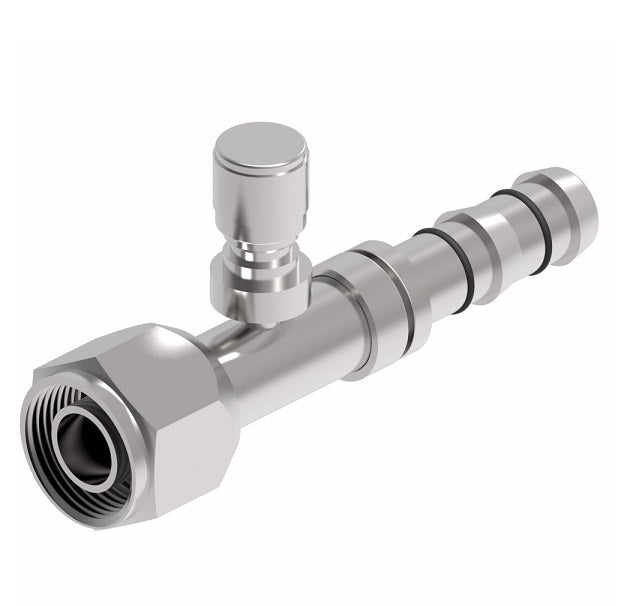

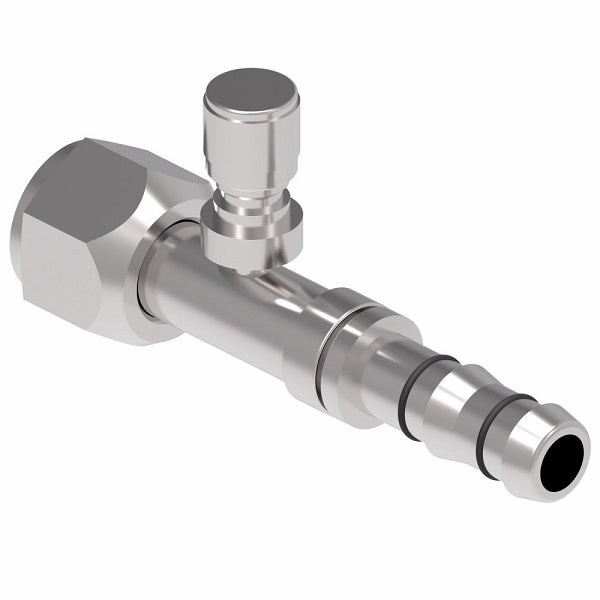

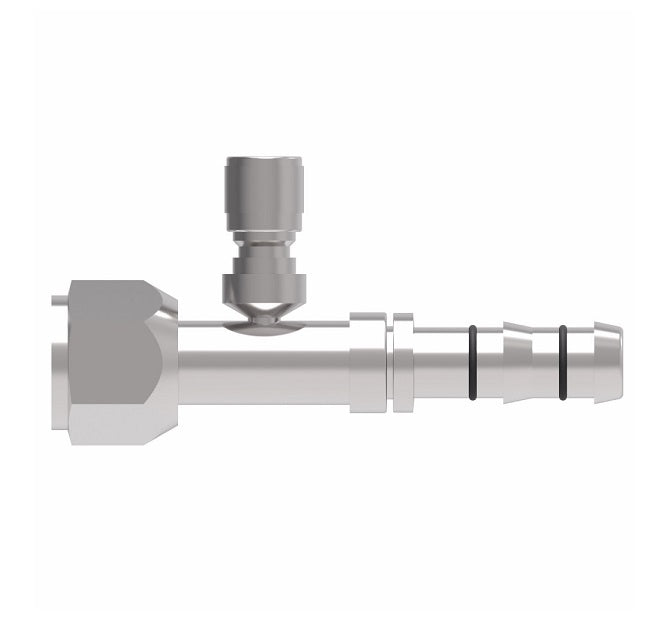

FJ3461-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with Switch Port (M12 X 1.25) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) with Switch Port (M12 X 1.25) - Straight
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $149.05 |
| 20–59 | $134.78 |
| 60+ | $118.92 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | ||||||||
| FJ3461-01-1010S | 7/8-14 | -10 | 4.25" | 2.25" | 0.63" | 1.06" | FF14173 | 22546-15 | FF90178-15 |
| FJ3461-02-1012S | 7/8-14 | -12 | 4.27" | 2.25" | 0.63" | 1.06" | FF14174 | 22546-15 | FF90178-15 |
| FJ3461-03-1212S | 1-1/16-14 | -12 | 4.86" | 2.71" | 0.54" | 1.25" | FF14174 | 22546-17 | FF90178-17 |
