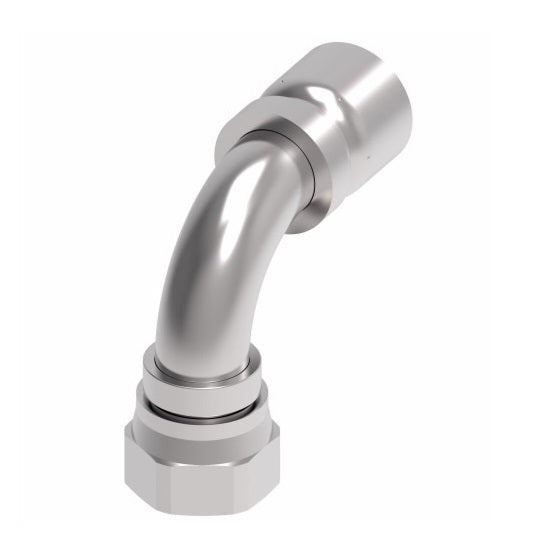

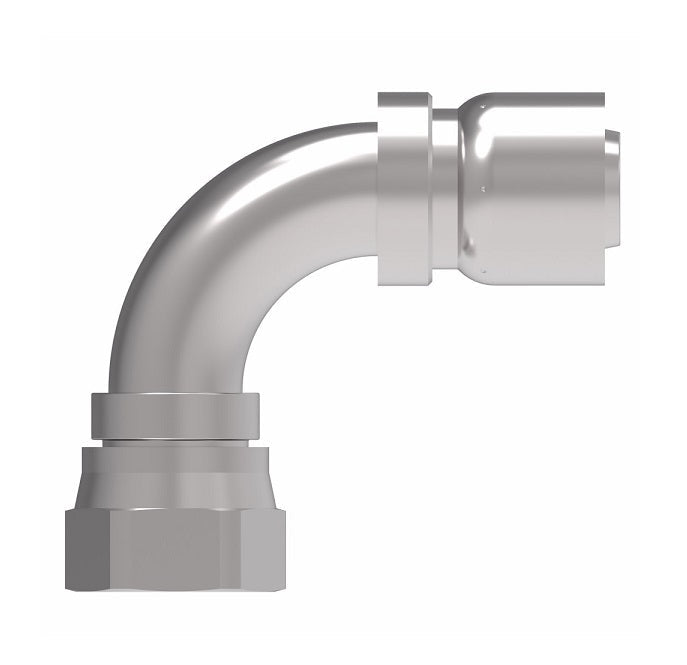

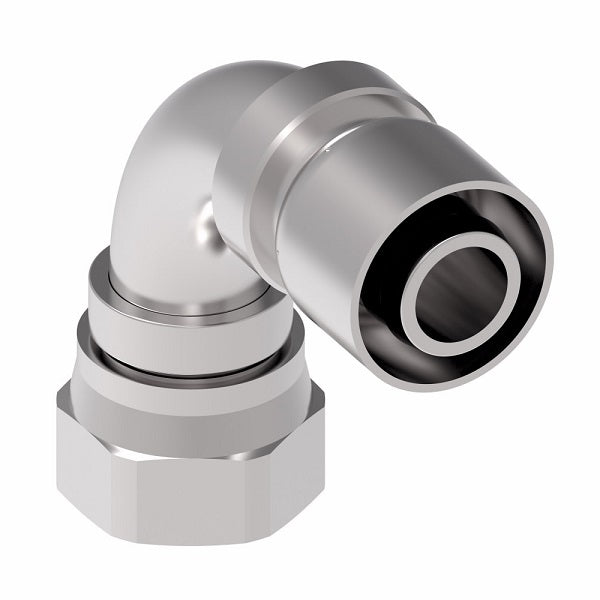

FJ3250-2424S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -24 Female 37° JIC Swivel x -24 Hose Barb | Steel
FJ3250-2424S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -24 Female 37° JIC Swivel x -24 Hose Barb | Steel
FJ3250-2424S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -24 Female 37° JIC Swivel x -24 Hose Barb | Steel

FJ3250-2424S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -24 Female 37° JIC Swivel x -24 Hose Barb | Steel

Sale price$214.12
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Steel
Part Number 		Hose Size Thread A D H Hex
FJ3250-0604S -04 9/16-18 1.83" 1.05" 0.85" 0.69"
FJ3250-0606S -06 9/16-18 1.84" 1.05" 0.85" 0.69"
FJ3250-0608S -08 9/16-18 1.85" 1.05" 0.85" 0.69"
FJ3250-1212S -12 1-1/16-12 2.78" 1.90" 1.82" 1.25"
FJ3250-1616S -16 1-5/16-12 3.19" 2.20" 2.39" 1.50"
FJ3250-2020S -20 1-5/8-12 4.27" 2.90" 3.25" 2.00"
FJ3250-2424S -24 1-7/8-12 4.27" 2.79" 3.05" 2.25"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Female JIC
  • 1-1/2in Hose Barb
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
