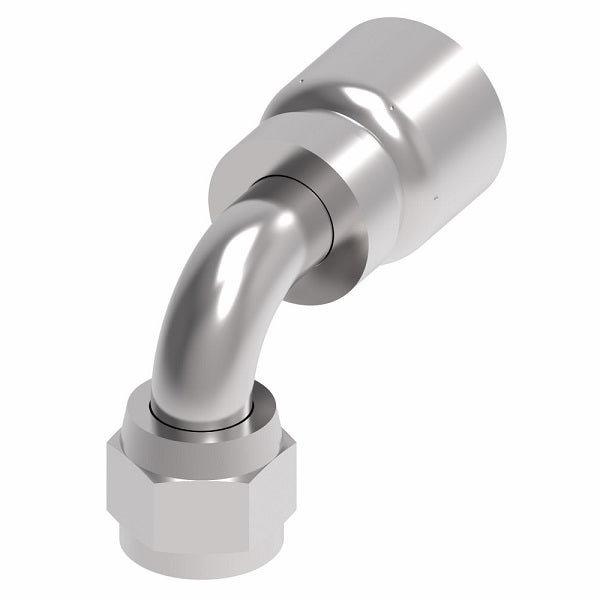

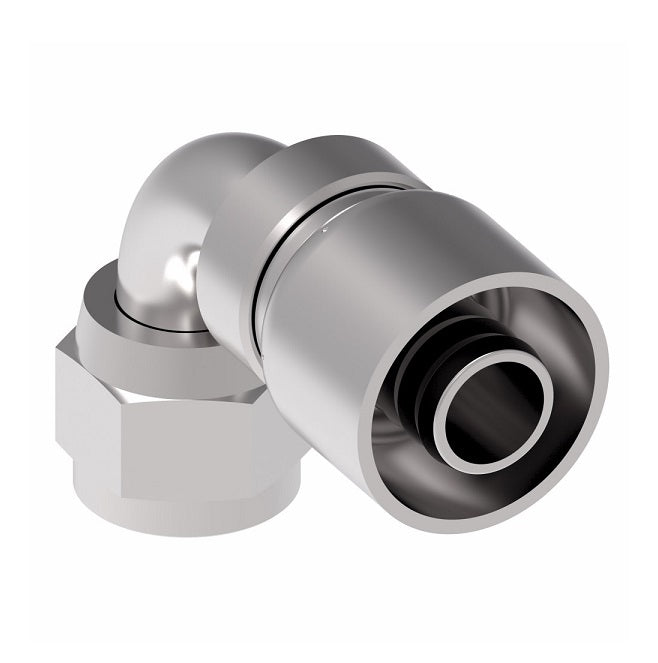

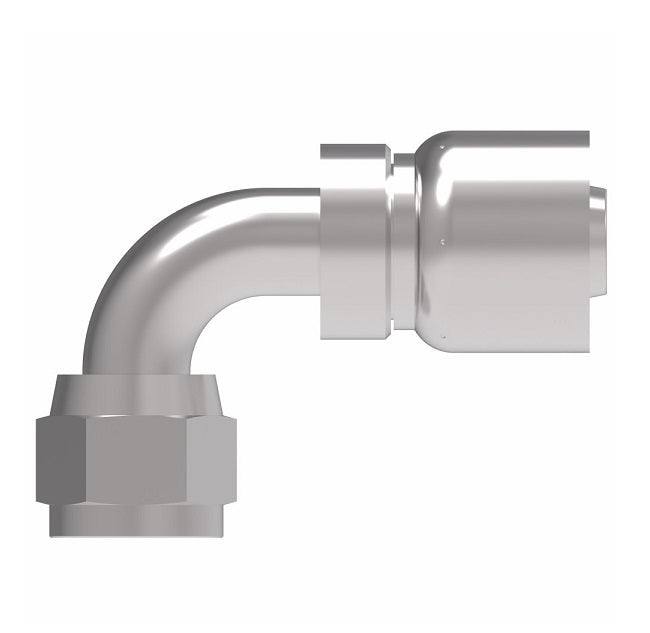

FJ3250-0604S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -04 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | H | Hex |
| FJ3250-0604S | -04 | 9/16-18 | 1.83" | 1.05" | 0.85" | 0.69" |
| FJ3250-0606S | -06 | 9/16-18 | 1.84" | 1.05" | 0.85" | 0.69" |
| FJ3250-0608S | -08 | 9/16-18 | 1.85" | 1.05" | 0.85" | 0.69" |
| FJ3250-1212S | -12 | 1-1/16-12 | 2.78" | 1.90" | 1.82" | 1.25" |
| FJ3250-1616S | -16 | 1-5/16-12 | 3.19" | 2.20" | 2.39" | 1.50" |
| FJ3250-2020S | -20 | 1-5/8-12 | 4.27" | 2.90" | 3.25" | 2.00" |
| FJ3250-2424S | -24 | 1-7/8-12 | 4.27" | 2.79" | 3.05" | 2.25" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
