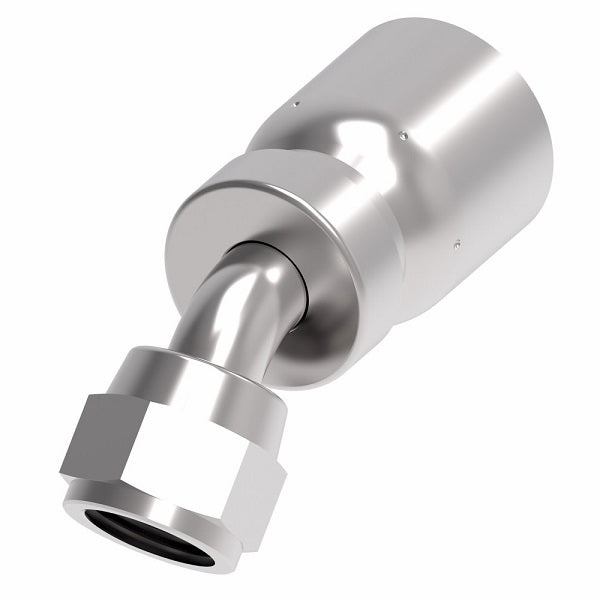

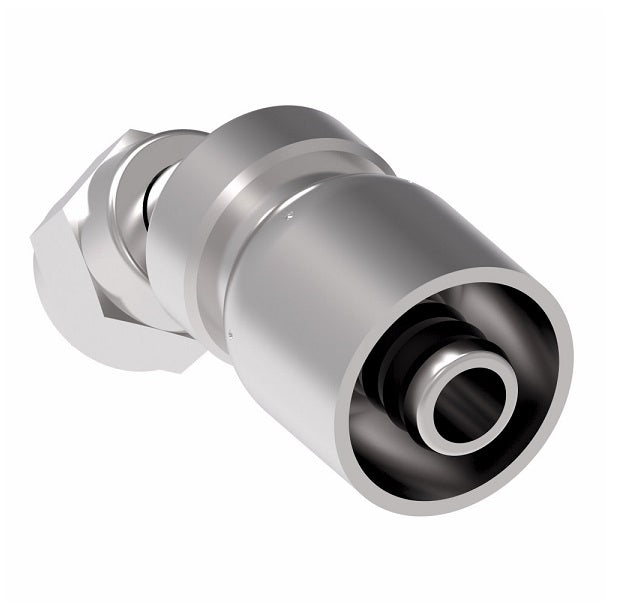

FJ3249-0608S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -08 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | H | Hex |
| FJ3249-0606S | -06 | 9/16-18 | 1.94" | 1.15" | 0.39" | 0.69" |
| FJ3249-0608S | -08 | 9/16-18 | 1.96" | 1.15" | 0.39" | 0.69" |
| FJ3249-1210S | -10 | 1-1/16-12 | - | 1.94" | - | 1.25" |
| FJ3249-1212S | -12 | 1-1/16-12 | 2.82" | 1.94" | 0.77" | 1.25" |
| FJ3249-1616S | -16 | 1-5/16-12 | 3.38" | 2.39" | 1.07" | 1.50" |
| FJ3249-2020S | -20 | 1-5/8-12 | 3.96" | 2.59" | 1.22" | 2.00" |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
