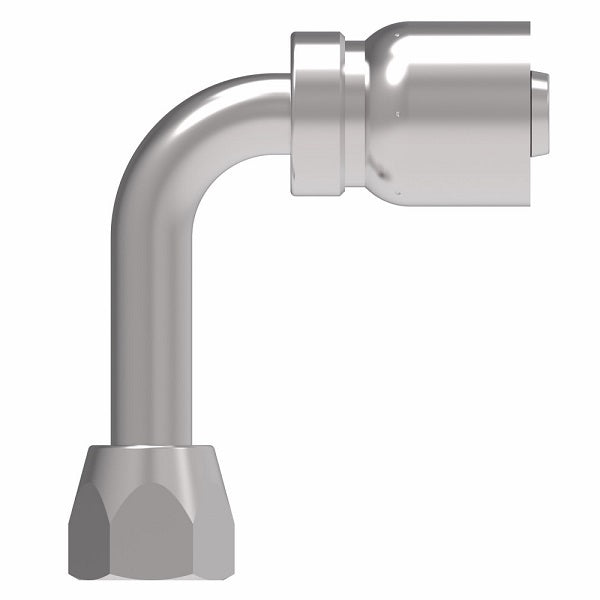

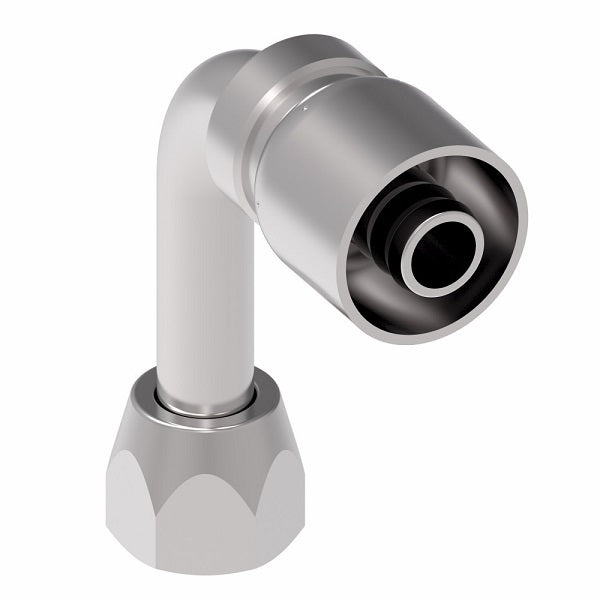

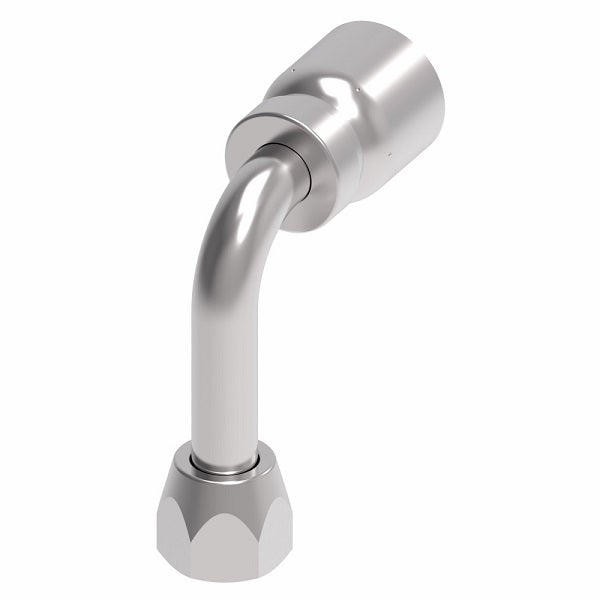

FJ3245-1010S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel
FJ3245-1010S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel
FJ3245-1010S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel

FJ3245-1010S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel

Sale price$38.36

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel Long Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $36.06
40–79 $32.61
80+ $28.77
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 5/8in Female JIC
  • 5/8in Hose Barb
  • 5/8in Female SAE 45 Flare
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Hose Size Thread A D H Hex
FJ3245-0404S -04 7/16-20 1.61" 0.83" 1.80" 0.56"
FJ3245-0808S -08 3/4-16 2.19" 1.39" 2.43" 0.88"
FJ3245-0810S -10 3/4-16 2.30" 1.42" 2.43" 0.88"
FJ3245-1010S -10 7/8-14 2.46" 1.57" 2.57" 1.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
