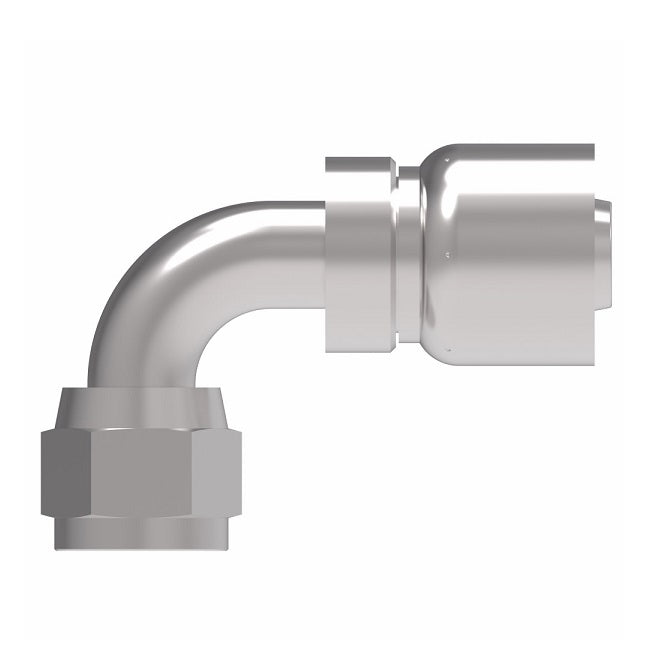

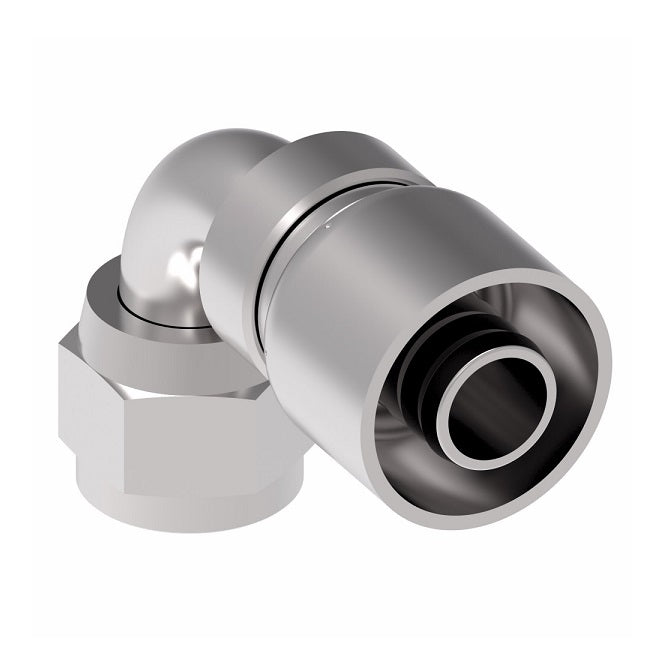

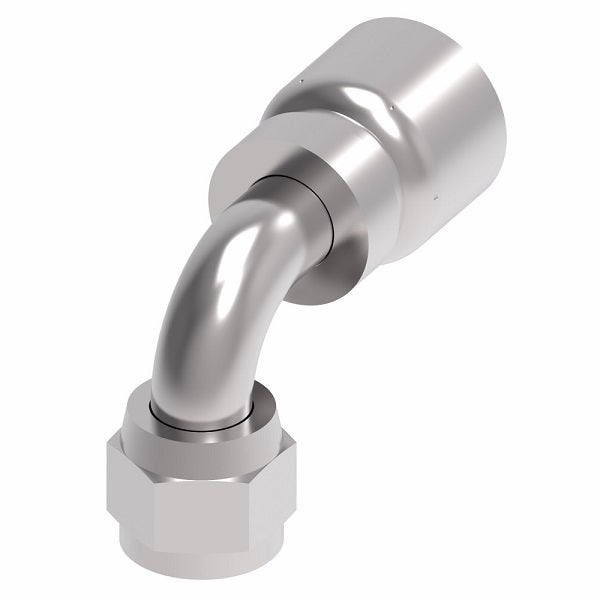

FJ3244-0404S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Hose Barb | Steel
Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel - 90° Elbow
Female JIC Swivel also Couples with SAE 45° Flare.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $19.35 |
| 40–79 | $17.49 |
| 80+ | $15.44 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | H | Hex |
| FJ3244-0404S | -04 | 7/16-20 | 1.61" | 0.83" | 0.68" | 0.56" |
| FJ3244-0405S | -05 | 7/16-20 | 1.62" | 0.83" | 0.68" | 0.56" |
| FJ3244-0505S | -05 | 1/2-20 | 1.68" | 0.89" | 0.77" | 0.62" |
| FJ3244-0808S | -08 | 3/4-16 | 2.07" | 1.27" | 1.09" | 0.88" |
| FJ3244-0810S | -10 | 3/4-16 | 2.17" | 1.29" | 1.09" | 0.88" |
| FJ3244-1010S | -10 | 7/8-14 | 2.51" | 1.63" | 1.23" | 1.00" |
| FJ3244-1012S | -12 | 7/8-14 | 2.60" | 1.71" | 1.23" | 1.00" |
