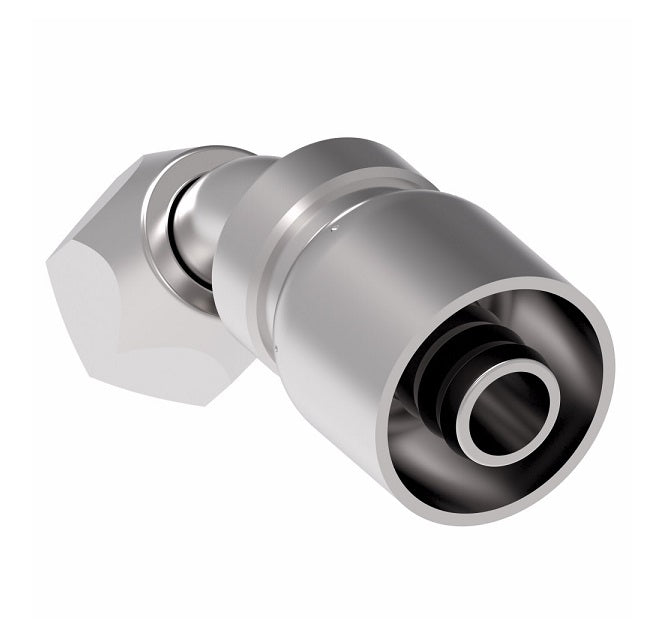

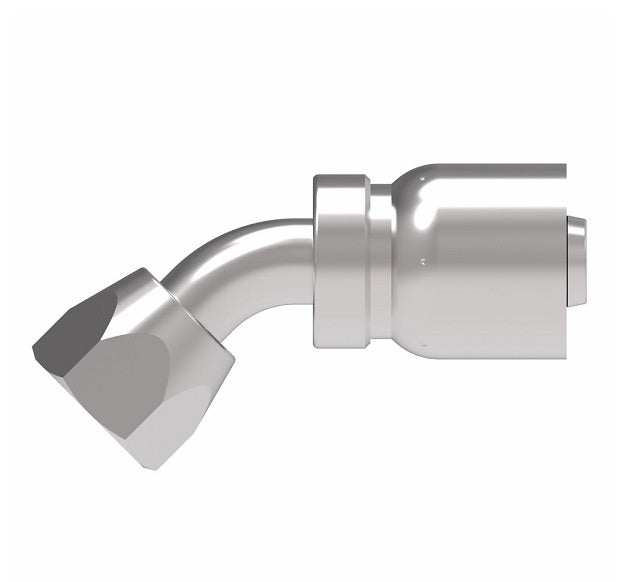

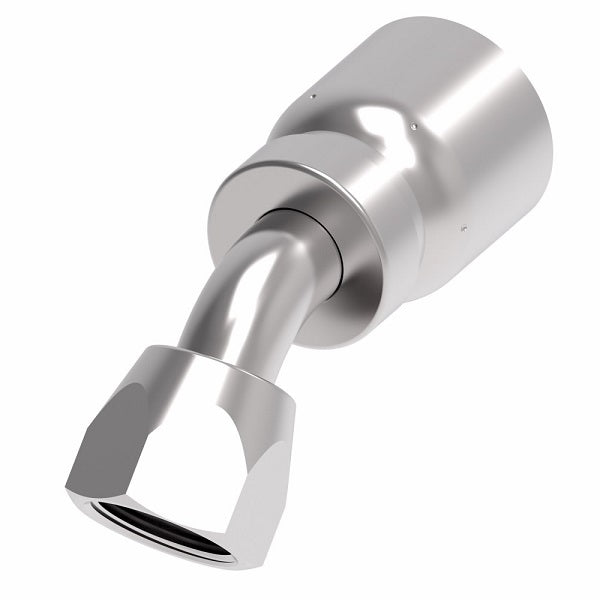

FJ3243-0505S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -05 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -05 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | H | Hex |
| FJ3243-0404S | -04 | 7/16-20 | 1.72" | 0.94" | 0.33" | 0.56" |
| FJ3243-0505S | -05 | 1/2-20 | 1.79" | 0.99" | 0.36" | 0.62" |
| FJ3243-0808S | -08 | 3/4-16 | 2.30" | 1.58" | 0.55" | 0.88" |
| FJ3243-0810S | -10 | 3/4-16 | 2.42" | 1.54" | 0.55" | 0.88" |
| FJ3243-1010S | -10 | 7/8-14 | 2.50" | 1.62" | 0.63" | 1.00" |
| FJ3243-1012S | -12 | 7/8-14 | - | 1.70" | 0.64" | - |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
