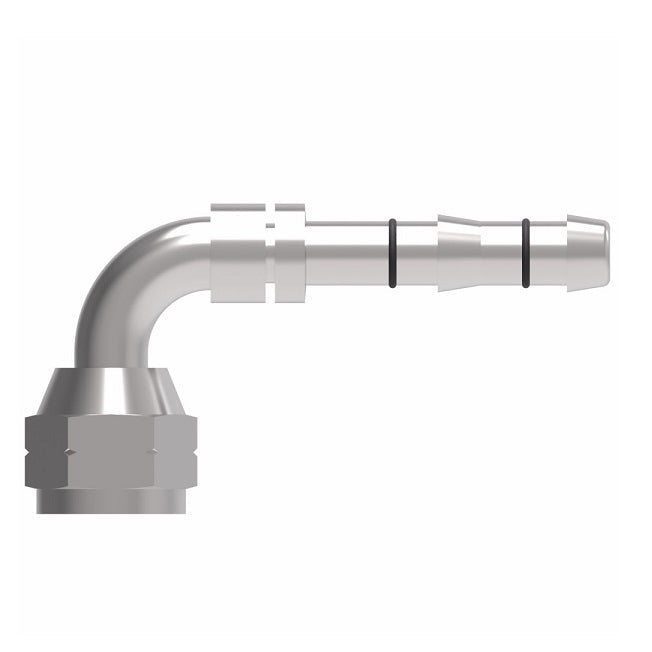

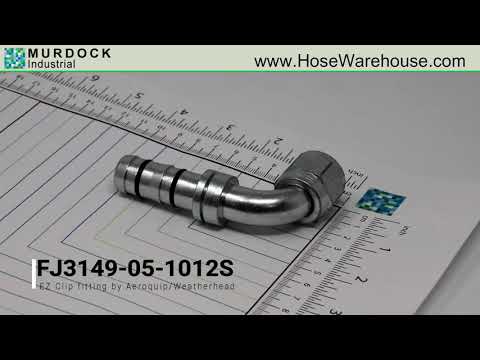

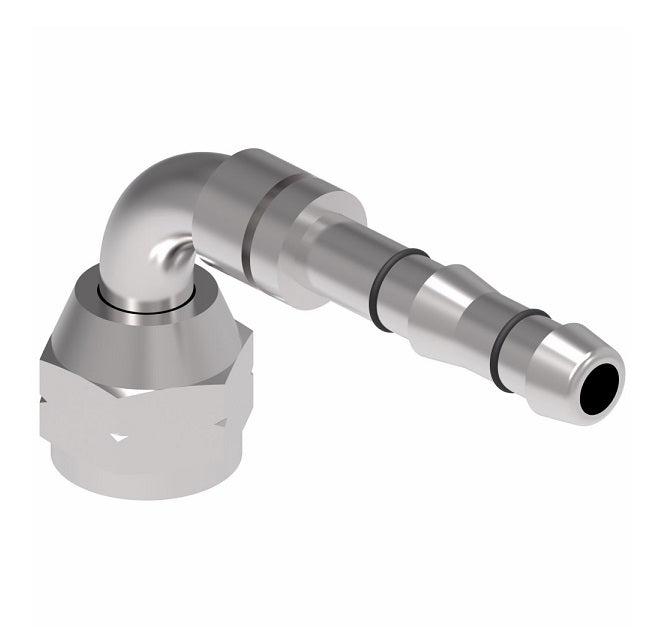

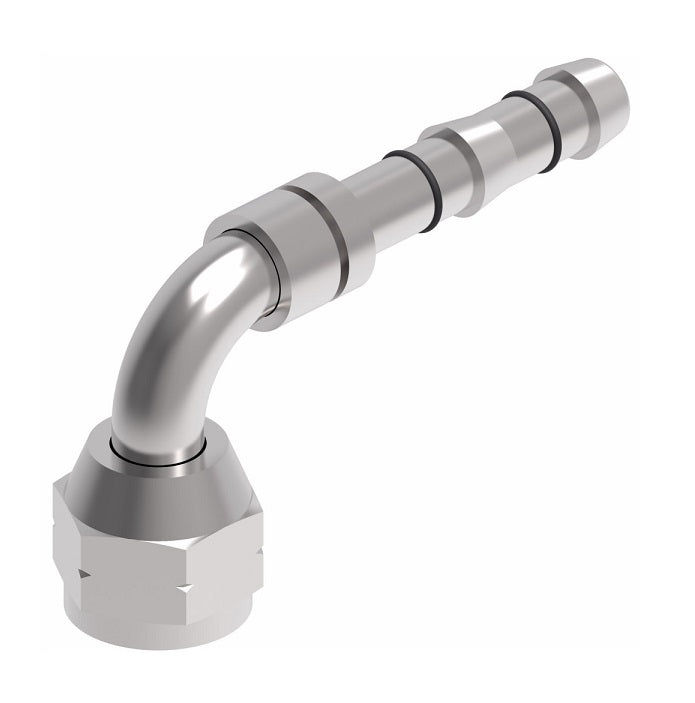

FJ3149-05-1012S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 90° Elbow | A/C Refrigeration Fitting | -10 Female SAE 45° Flare x -12 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female SAE 45° Flare - 45° Elbow
Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $30.44 |
| 40–79 | $27.52 |
| 80+ | $24.29 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
| FJ3149-0404S* | 7/16-20 | -04 | 1.47" | 0.80" | 0.68" | 0.56" | FF14175 |
| FJ3149-01-0606S** | 5/8-18 | -06 | 2.51" | 0.98" | 0.85" | 0.75" | FF14171 |
| FJ3149-02-0608S** | 5/8-18 | -08 | 2.52" | 0.98" | 0.85" | 0.75" | FF14172 |
| FJ3149-03-0808S* | 3/4-16 | -08 | 2.74" | 1.20" | 1.09" | 0.88" | FF14172 |
| FJ3149-04-1010S* | 7/8-14 | -10 | 3.09" | 1.54" | 1.19" | 1.00" | FF14173 |
| FJ3149-05-1012S* | 7/8-14 | -12 | 3.09" | 1.54" | 1.19" | 1.00" | FF14174 |
| FJ3149-06-1212S* | 1-1/16-14 | -12 | 3.68" | 2.11" | 1.80" | 1.25" | FF14174 |
| FJ3149-07-0810S* | 7/8-14 | -10 | 2.83" | 1.30" | 1.09" | 0.88" | FF14173 |
* Universal flare
** Double notch in nut for universal type identification.
