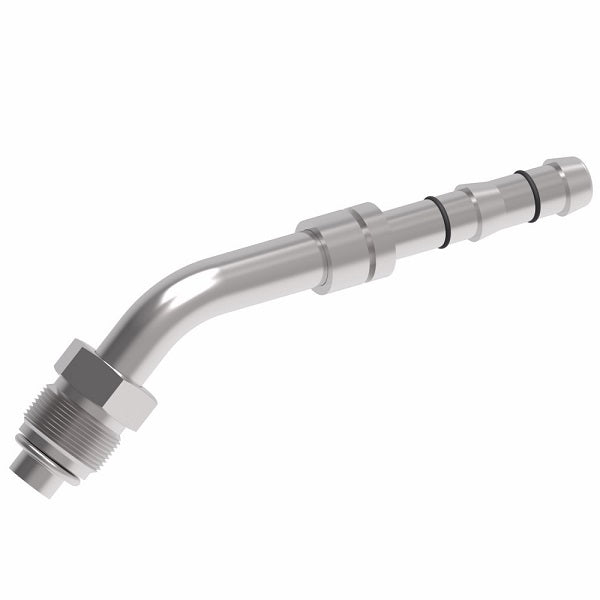

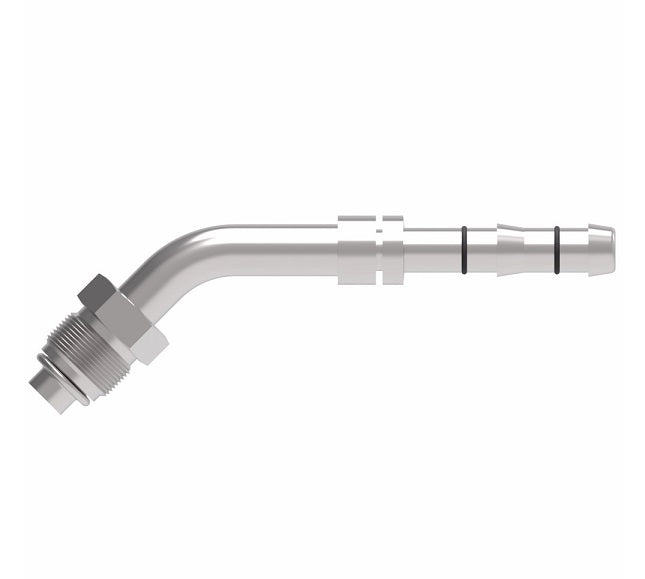

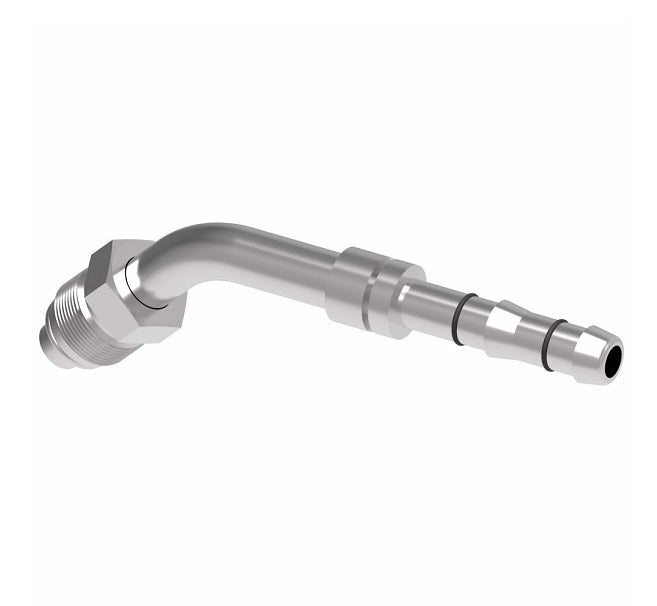

FJ3116-06-1212S E-Z Clip System by Danfoss | Male O-Ring 45° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Male O-Ring Short Pilot x -12 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) - 45° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.50 |
| 40–79 | $41.14 |
| 80+ | $36.30 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | ||||||||
| FJ3116-01-0606S | 5/8-18 | -06 | 3.99" | 2.47" | 0.94" | 0.62" | FF14171 | 22546-11 | FF90178-11 |
| FJ3116-04-0608S | 5/8-18 | -08 | 4.01" | 2.47" | 0.94" | 0.62" | FF14172 | 22546-11 | FF90178-11 |
| FJ3116-03-0808S | 3/4-18 | -08 | 4.59" | 2.83" | 1.20" | 0.75" | FF14172 | 22546-13 | FF90178-13 |
| FJ3116-02-1010S | 7/8-18 | -10 | 4.65" | 3.10" | 1.46" | 0.88" | FF14173 | 22546-15 | FF90178-15 |
| FJ3116-05-1012S | 7/8-18 | -12 | 4.68" | 3.10" | 1.47" | 0.88" | FF14174 | 22546-15 | FF90178-15 |
| FJ3116-06-1212S | 1-1/16-16 | -12 | 4.90" | 3.32" | 1.53" | 1.06" | FF14174 | 22546-17 | FF90178-17 |
