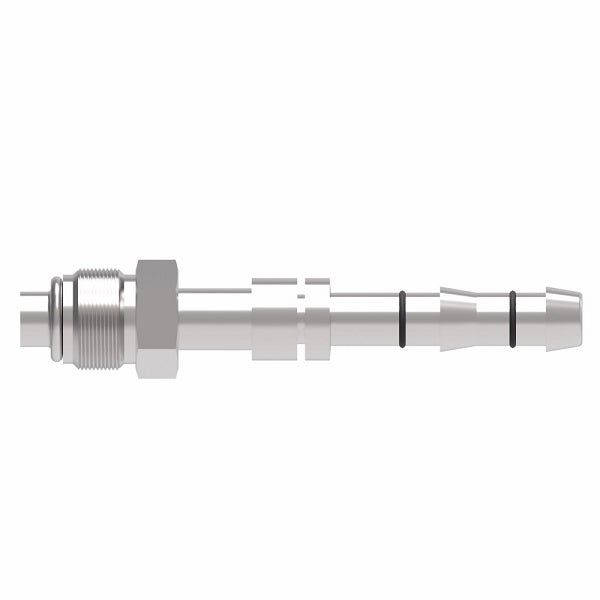

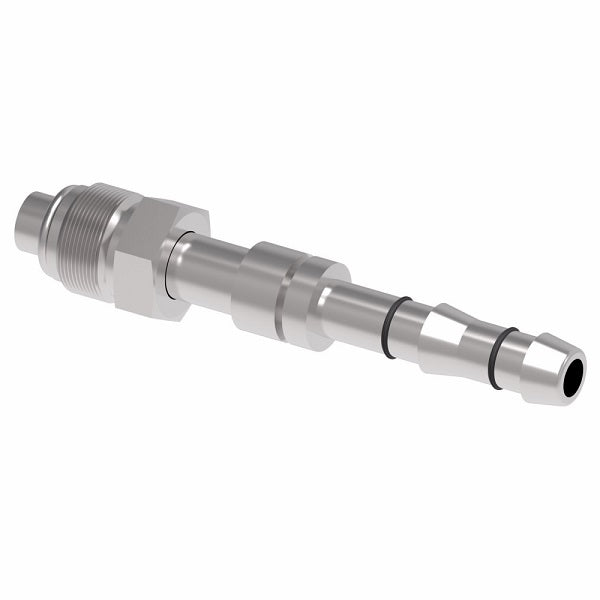

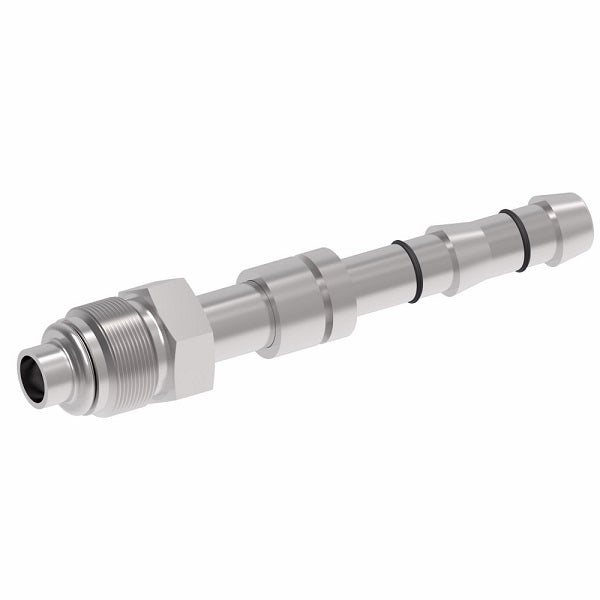

FJ3052-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
| Additional Information: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | |||||||
| FJ3052-0606S | 5/8-18 | -06 | 3.41" | 1.70" | 0.62" | FF14171 | 22546-11 | FF90178-11 |
| FJ3052-0608S | 5/8-18 | -08 | 3.43" | 1.70" | 0.62" | FF14172 | 22546-11 | FF90178-11 |
| FJ3052-0808S | 3/4-18 | -08 | 4.37" | 2.64" | 0.75" | FF14172 | 22546-13 | FF90178-13 |
| FJ3052-1010S | 7/8-18 | -10 | 3.66" | 1.92" | 0.88" | FF14173 | 22546-15 | FF90178-15 |
| FJ3052-1012S | 7/8-18 | -12 | 3.68" | 1.92" | 0.88" | FF14174 | 22546-15 | FF90178-15 |
| FJ3052-1016S | 7/8-18 | -16 | 4.33" | 2.47" | 0.88" | FF14401 | 22546-15 | FF90178-15 |
| FJ3052-1212S | 1-1/16-16 | -12 | 3.68" | 1.92" | 1.06" | FF14174 | 22546-17 | FF90178-17 |
| FJ3052-1216S | 1-1/16-16 | -16 | 4.28" | 2.42" | 1.06" | FF14401 | 22546-17 | FF90178-17 |
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $31.92 |
| 40–79 | $28.87 |
| 80+ | $25.47 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) - Straight
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
