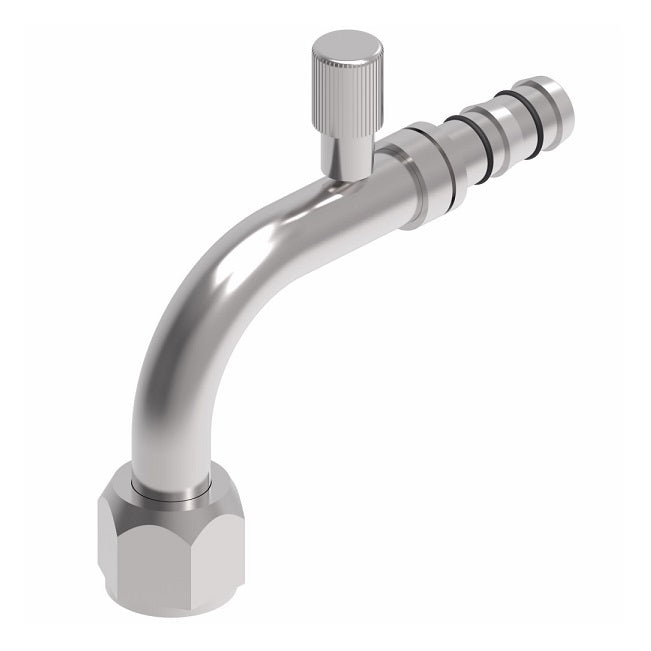

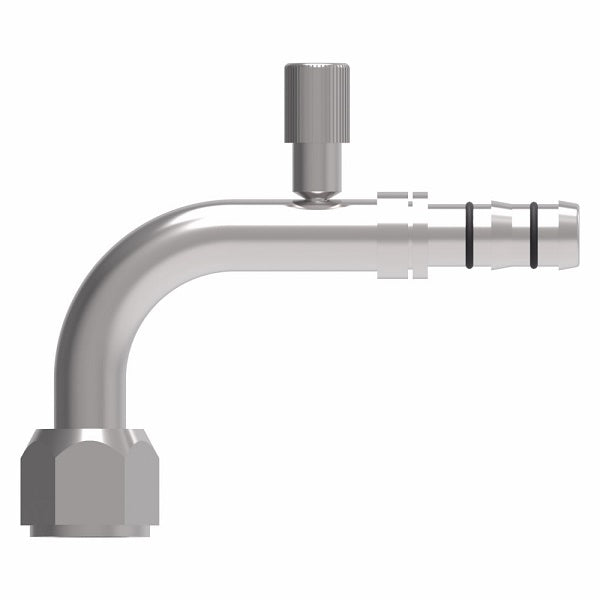

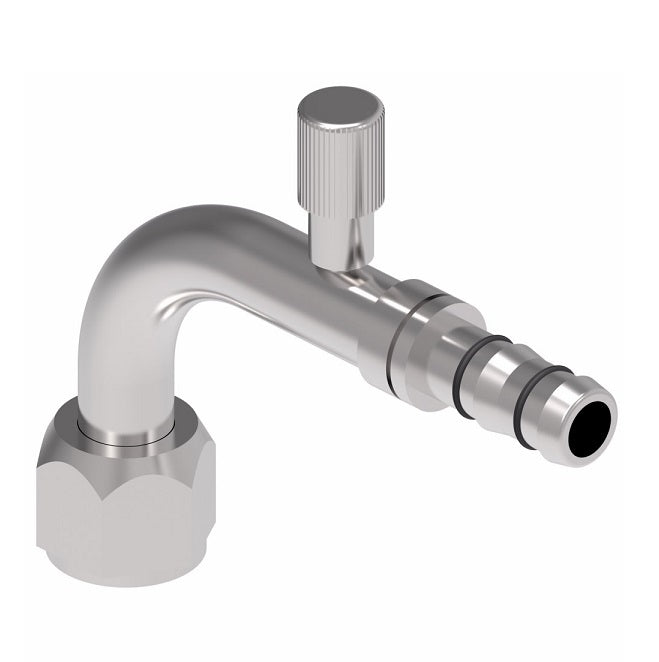

FJ3012-01-1012S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) with R134A Low Side Port | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -12 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) with R134A Low Side Port - 90° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $62.36 |
| 40–79 | $56.39 |
| 80+ | $49.76 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | |||||||||
| FJ3012-01-1012S | 7/8-14 | -12 | 4.83" | 3.25" | 0.63" | 1.89" | 1.06" | FF14174 | 22546-15 | FF90178-15 |
| FJ3012-02-1010S | 7/8-14 | -10 | 4.88" | 3.33" | 0.63" | 1.89" | 1.06" | FF14173 | 22546-15 | FF90178-15 |
| FJ3012-03-1212S | 1-1/16-14 | -12 | 5.10" | 3.25" | 0.63" | 2.56" | 1.25" | FF14174 | 22546-17 | FF90178-17 |
