FFX90M-08-08-W by Kurt Hydraulics | Female O-Ring Face Seal | 90 Degree Medium Drop Bent Tube | Swivel | for 1/2" Hose ID

FFX90M-08-08-W by Kurt Hydraulics | Female O-Ring Face Seal | 90 Degree Medium Drop Bent Tube | Swivel | for 1/2" Hose ID

Sale price$20.75
by Kurt Hydraulics
FFX90-W - O-Ring Face Seal 90 deg. Medium Drop Bent Tube Female Swivel
Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $19.51
40–79 $17.64
80+ $15.56
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Female O-Ring Face Seal

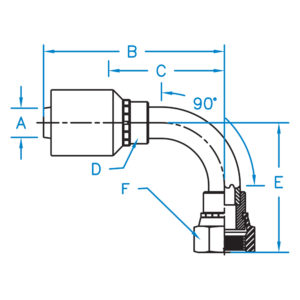

Part Number A B C D E F Hose ID
(In)		 Thread
FFX90M-06-06-W 0.375 3.029 1.804 3/4R 1.50 13/16 3/8" 11/16-16
FFX90M-08-08-W 0.500 3.046 1.706 7/8 R 1.614 15/16 1/2" 13/16-16
FFX90M-12-12-W 0.750 4.434 2.555 1.0R 2.283 1-3/8 3/4" 1-3/16-12
FFX90M-16-16-W 1.000 5.193 3.080 1-5/16R 2.845 1-5/8 1.000" 1-7/16-12


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
