FFX90M-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female O-Ring Face Seal Swivel | Medium Drop | 90° Elbow | Carbon Steel
Kurt Hydraulics
FFX90M - O-Ring Face Seal 90° Medium Drop Bent Tube Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $42.78 |
| 40–79 | $38.68 |
| 80+ | $34.13 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

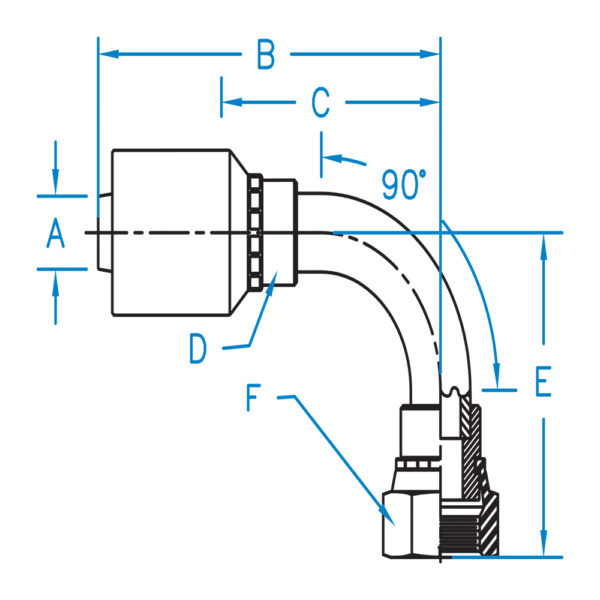

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FFX90M-04-04-K2 | 1/4" | 2.70" | 1.64" | 5/8" | 1.26" | 11/16" | 9/16 – 18 |
| FFX90M-06-06-K2 | 3/8" | 3.17" | 1.80" | 3/4" | 1.50" | 13/16" | 11/16 – 16 |
| FFX90M-08-08-K2 | 1/2" | 3.05" | 1.71" | 7/8" | 1.61" | 15/16" | 13/16 – 16 |
| FFX90M-08-10-K2 | 1/2" | 2.95" | 1.61" | 7/8" | 1.85" | 1-1/8" | 1 – 14 |
