FFX90L-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | 90° Long Drop Elbow | Female O-Ring Face Seal | Swivel | for 1" Hose ID
by Kurt Hydraulics
FFX90L-WHP - O-Ring Face Seal 90 deg. Bent Tube Female Swivel Long Drop - Ultra High Pressure Non Skive
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $53.16 |
| 40–79 | $48.07 |
| 80+ | $42.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

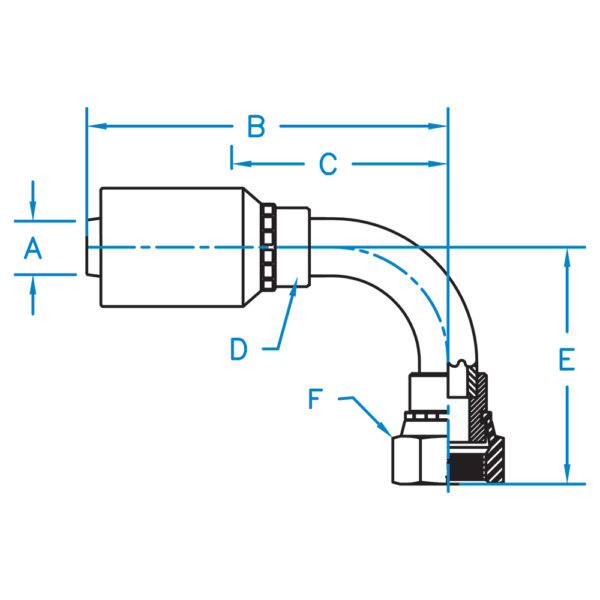

| Part Number | A | B | C | D | E | F |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FFX90L-12-12-WHP | 0.750 | 5.022 | 2.592 | 1-3/16R | 3.780 | 1-3/8 | 3/4" | 1-3/16-12 |
| FFX90L-16-16-WHP | 1.000 | 5.591 | 3.061 | 1-7/16R | 4.488 | 1-5/8 | 1.000" | 1-7/16-12 |
