FFX90L-12-12 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Long Drop Elbow | Swivel | for 3/4" Hose ID

FFX90L-12-12 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Long Drop Elbow | Swivel | for 3/4" Hose ID

Sale price$43.69

by Kurt Hydraulics
FFX90L - O-Ring Face Seal 90 deg. Long Drop Female Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $41.07
40–79 $37.14
80+ $32.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

90 Degree

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Female O-Ring Face Seal

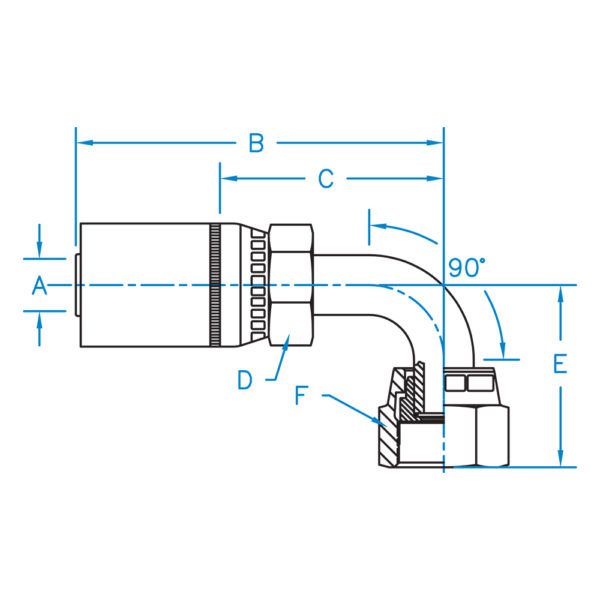

Part Number A B C D E F Hose ID
(In)		 Thread
FFX90L-04-04 0.25 2.323 1.068 5/8 1.8 11/16 1/4" 9/16-18
FFX90L-06-06 0.375 3.38 1.88 3/4 2.13 13/16 3/8" 11/16-16
FFX90L-06-08 0.375 3.677 2.177 3/4 R 2.52 15/16 3/8" 13/16-16
FFX90L-08-08 0.5 3.75 2.25 7/8 2.52 15/16 1/2" 13/16-16
FFX90L-08-10 0.5 3.709 2.209 7/8 2.755 1-1/8 1/2" 1-14
FFX90L-10-10 0.625 3.905 2.025 1-1/8 2.77 1-1/8 5/8" 1-14
FFX90L-10-12 0.625 3.716 2.216 1-1/8 3.83 1-3/8 5/8" 1-3/16-12
FFX90L-12-12 0.75 3.89 2.3 1-1/8 3.83 1-3/8 3/4" 1-3/16-12
FFX90L-16-16 1 4.648 2.368 1-3/8 4.5 1-5/8 1" 1-7/16-12
