FFX90-08-10-W by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | 90 Degree Bent Tube | Swivel | for 1/2" Hose ID
by Kurt Hydraulics
FFX90-W - O-Ring Face Seal 90 deg. Bent Tube Female Swivel
FFX90-W - O-Ring Face Seal 90 deg. Bent Tube Female Swivel
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.29 |
| 40–79 | $18.34 |
| 80+ | $16.19 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

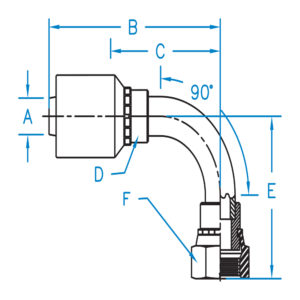

| Part Number | A | B | C | D | E | F | Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FFX90-06-06-W | 0.375 | 2.400 | 1.170 | 13/16 | 0.900 | 13/16 | 3/8" | 11/16-16 |
| FFX90L-06-06-W | 0.375 | 2.770 | 1.540 | 13/16 | 0.900 | 13/16 | 3/8" | 11/16-16 |
| FFX90-06-08-W | 0.375 | 3.026 | 1.656 | 15/16 | 1.142 | 15/16 | 3/8" | 13/16-16 |
| FFX90-08-08-W | 0.500 | 2.680 | 1.350 | 15/16 | 1.150 | 15/16 | 1/2" | 13/16-16 |
| FFX90L-08-08-W | 0.500 | 2.680 | 2.146 | 15/16 | 1.142 | 15/16 | 1/2" | 13/16-16 |
| FFX90-08-10-W | 0.500 | 2.770 | 1.430 | 1-1/8 | 1.260 | 1-1/8 | 1/2" | 1-14 |
| FFX90-08-12-W | 0.500 | 3.870 | 2.555 | 1-3/8 | 1.881 | 1-3/8 | 1/2" | 1-3/16-12 |
| FFX90-10-08-W | 0.625 | 3.876 | 1.776 | 15/16 | 1.142 | 15/16 | 5/8" | 13/16-16 |
| FFX90-10-10-W | 0.625 | 4.28 | 2.18 | 1-1/8 | 1.260 | 1-1/8 | 5/8" | 1-14 |
| FFX90-10-12-W | 0.625 | 4.703 | 2.603 | 1-3/8 | 1.881 | 1-3/8 | 5/8" | 1-3/16-12 |
| FFX90-12-10-W | 0.750 | N/A | N/A | N/A | N/A | 1-1/8 | 3/4" | 1-14 |
| FFX90-12-12-W | 0.750 | 4.820 | 2.568 | 1-3/8 | 1.881 | 1-3/8 | 3/4" | 1-3/16-12 |
| FFX90L-12-12-W | 0.750 | 4.359 | 2.570 | 1-3/8 | 3.780 | 1-3/8 | 3/4" | 1-3/16-12 |
| FFX90-12-16-W | 0.750 | 4.820 | 2.570 | 1-5/8 | 2.210 | 1-5/8 | 3/4" | 1-7/16-12 |
| FFX90-16-16-W | 1.000 | 5.220 | 2.940 | 1-5/8 | 2.210 | 1-5/8 | 1.000" | 1-7/16-12 |
| FFX90L-16-16-W | 1.000 | 5.075 | 2.962 | 1-5/8 | 4.490 | 1-5/8 | 1.000" | 1-7/16-12 |
| FFX90-16-20-W | 1.000 | 5.220 | 3.110 | 2.000 | 3.020 | 1-7/8 | 1.000" | 1-11/16-12 |
| FFX90-20-20-W | 1.250 | 6.230 | 3.712 | 2.000 | 2.510 | 1-7/8 | 1-1/4" | 1-11/16-12 |
| FFX90L-20-20-W | 1.250 | 6.437 | 3.986 | 2.000 | 4.539 | 1-7/8 | 1-1/4" | 1-11/16-12 |
| FFX90-20-24-W | 1.250 | 6.230 | 3.780 | 2-1/4 | 3.360 | 2-1/4 | 1-1/4" | 2-12 |
| FFX90-24-24-W | 1.500 | 6.740 | 4.120 | 2-1/4 | 2.780 | 2-1/4 | 1-1/2" | 2-12 |
