FFX45-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female O-Ring Face Seal | 45° Elbow | Swivel | for 3/4" Hose ID
by Kurt Hydraulics
FFX45-WHP - O-Face Seal Female 45 deg. Bent Tube Swivel - Ultra High Pressure Non Skive
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.51 |
| 40–79 | $41.15 |
| 80+ | $36.31 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Special Properties:

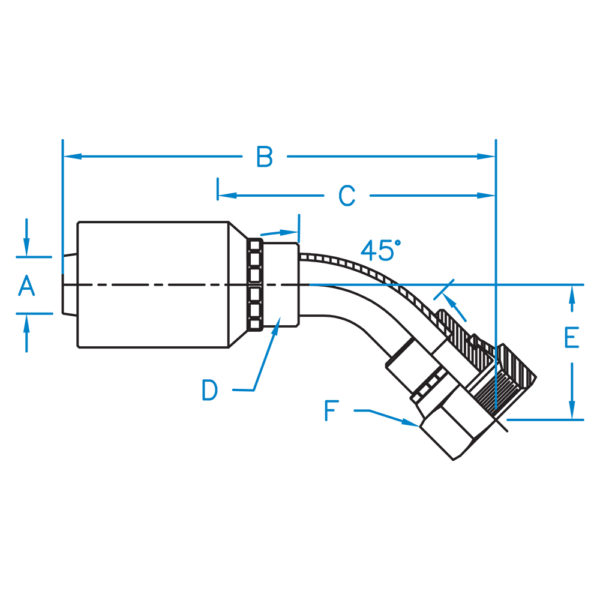

| Part Number | A | B | C | D | E | F |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FFX45-12-12-WHP | 0.750 | 5.169 | 2.739 | 1-3/16R | 0.810 | 1-3/8 | 3/4" | 1-3/16-12 |
| FFX45-16-16-WHP | 1.000 | 5.639 | 3.109 | 1-7/16R | 0.940 | 1-5/8 | 1.000" | 1-7/16-12 |
