FFX45-10-10-SST by Kurt Hydraulics | Female O-Ring Face Seal | 45° Elbow | Swivel | PTFE Coupling | for 5/8" Hose ID

FFX45-10-10-SST by Kurt Hydraulics | Female O-Ring Face Seal | 45° Elbow | Swivel | PTFE Coupling | for 5/8" Hose ID

Sale price$30.95

by Kurt Hydraulics
FFX45-SST - O-Face Seal Female 45 deg. Bent Tube Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $29.09
40–79 $26.31
80+ $23.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • SST Series
Shape:

45 Degree

Ends Configuration:
  • 5/8in Hose Barb
  • 5/8in Female O-Ring Face Seal

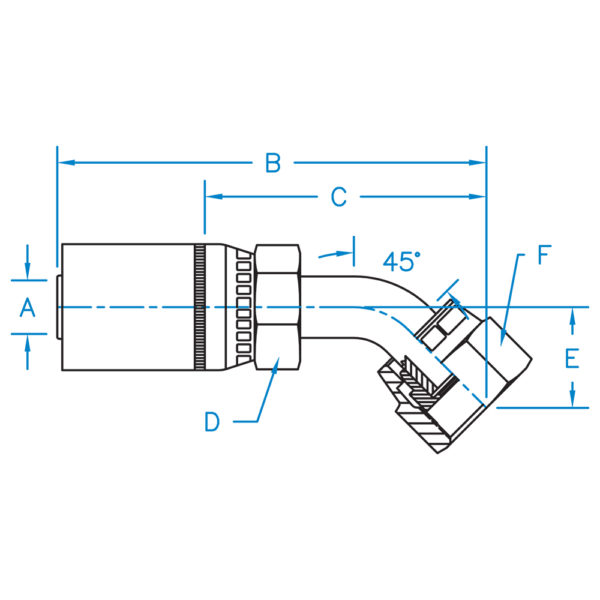

Part Number A B C D E F Hose ID
(In)		 Thread
FFX45-04-04-SST 0.250 2.551 1.473 5/8 0.409 11/16 1/4" 9/16-18
FFX45-04-06-SST 0.250 2.650 1.513 3/4 0.429 13/16 1/4" 11/16-16
FFX45-06-06-SST 0.375 2.825 1.513 3/4 0.429 13/16 3/8" 11/16-16
FFX45-06-08-SST 0.375 3.152 1.752 7/8 0.590 15/16 3/8" 13/16-16
FFX45-08-08-SST 0.500 3.315 1.752 7/8 0.590 15/16 1/2" 13/16-16
FFX45-08-10-SST 0.500 3.580 2.312 7/8 0.690 1-1/8 1/2" 1-14
FFX45-10-10-SST 0.625 3.610 2.218 7/8 0.690 1-1/8 5/8" 1-14
FFX45-10-12-SST 0.625 4.110 2.572 1-1/8 0.831 1-3/8 5/8" 1-3/16-12
FFX45-12-12-SST 0.750 4.329 2.572 1-1/8 0.831 1-3/8 3/4" 1-3/16-12
FFX45-16-16-SST 1.000 4.550 2.843 1-3/8 0.970 1-5/8 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
