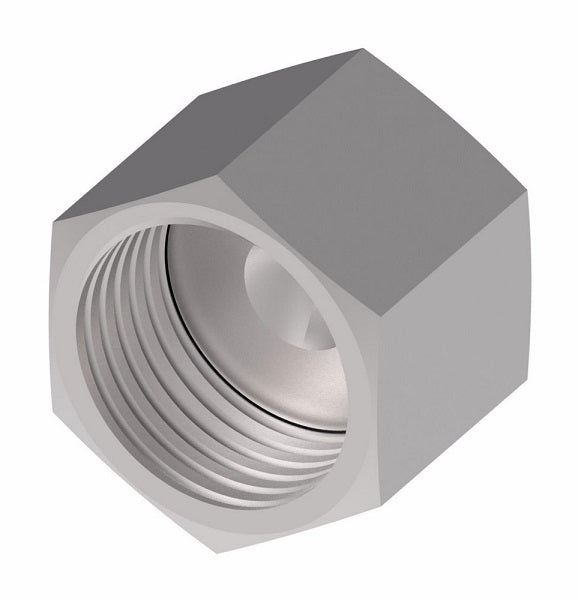

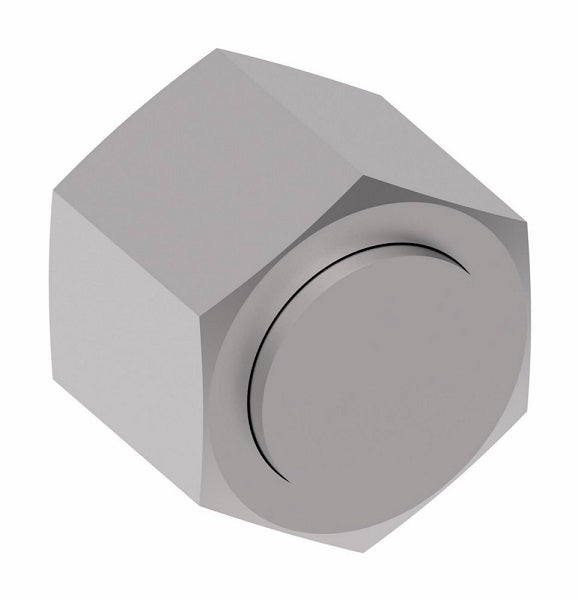

FF9863-10S Aeroquip by Danfoss | Female O-Ring Face Seal (ORS) Cap | -10 Size | Steel
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Female O-Ring Face Seal (ORS) Cap
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.85 |
| 40–79 | $6.20 |
| 80+ | $5.47 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Tube OD | Thread T1 | A | D | Hex 1 |
| FF9863-04S | 0.25" | 9/16-18 | 0.66" | 0.32" | 0.69" |
| FF9863-06S | 0.38" | 11/16-16 | 0.75" | 0.38" | 0.81" |
| FF9863-08S | 0.50" | 13/16-16 | 0.90" | 0.43" | 0.94" |
| FF9863-10S | 0.63" | 1-14 | 1.00" | 0.53" | 1.12" |
| FF9863-12S | 0.75" | 1-3/16-12 | 1.10" | 0.57" | 1.38" |
| FF9863-16S | 1.00" | 1-7/16-12 | 1.17" | 0.58" | 1.62" |
| FF9863-20S | 1.25" | 1-11/16-12 | 1.17" | 0.58" | 1.88" |
| FF9863-24S | 1.50" | 2-12 | 1.17" | 0.58" | 2.25" |
