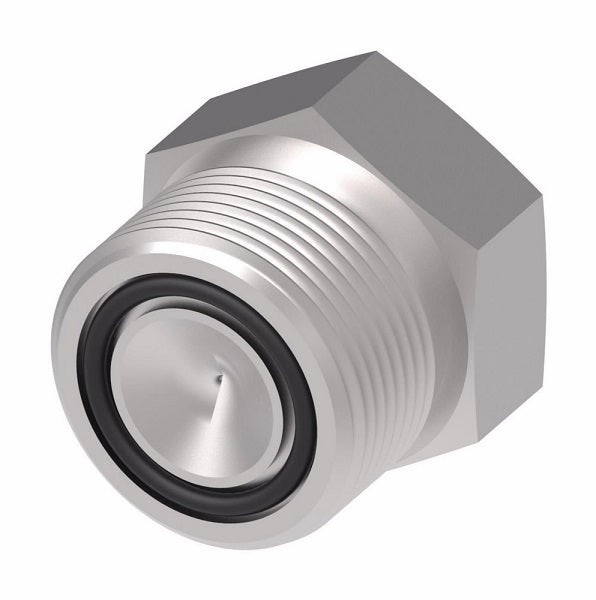

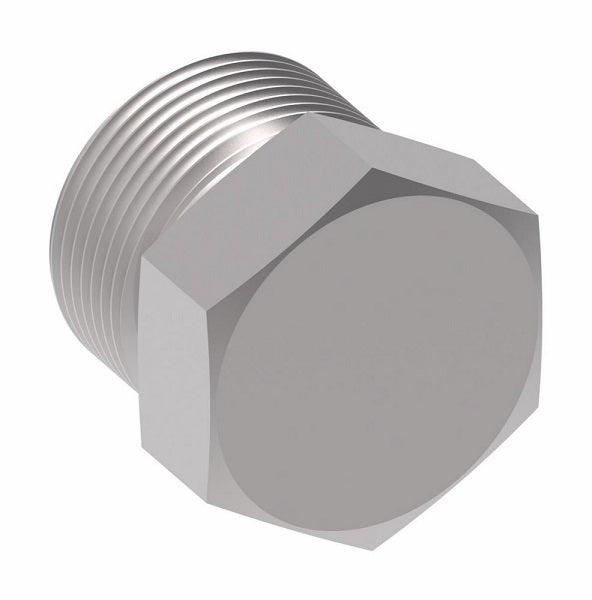

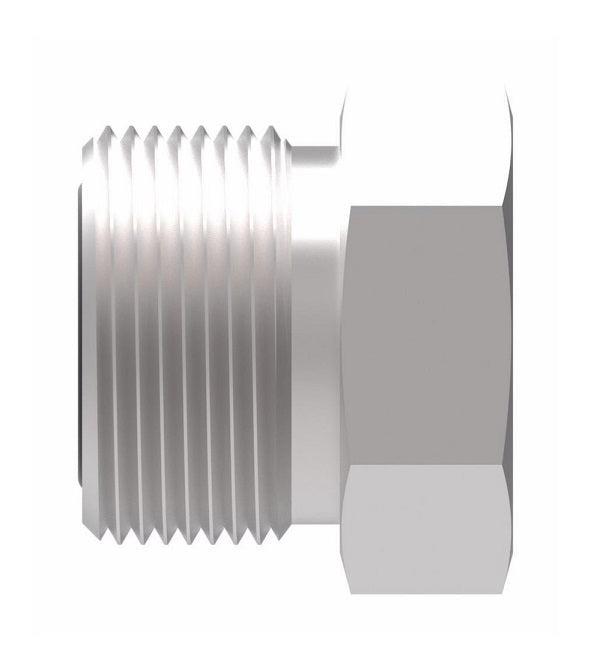

FF9767T24-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -24 Size | Steel
FF9767T24-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -24 Size | Steel
FF9767T24-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -24 Size | Steel

FF9767T24-S Aeroquip by Danfoss | Male O-Ring Face Seal (ORS) Plug | -24 Size | Steel

Sale price$32.06

Aeroquip® by Danfoss
O-Ring Face Seal (ORS) Plug

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $30.14
40–79 $27.25
80+ $24.05
Discounts applied in cart/checkout.
Specifications:
  • Ref. SAE 520109
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 A Hex 1
FF9767T04-S 0.25" 9/16-18 0.66" 0.62"
FF9767T06-S 0.38" 11/16-16 0.75" 0.75"
FF9767T08-S 0.50" 13/16-16 0.87" 0.88"
FF9767T10-S 0.63" 1-14 1.02" 1.06"
FF9767T12-S 0.75" 1-3/16-12 1.08" 1.25"
FF9767T16-S 1.00" 1-7/16-12 1.10" 1.50"
FF9767T20-S 1.25" 1-11/16-12 1.10" 1.75"
FF9767T24-S 1.50" 2-12 1.10" 2.12"

Product Data:

Shape:

No Orientation

Ends Configuration:
  • 1-1/2in Male O-Ring Face Seal
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
