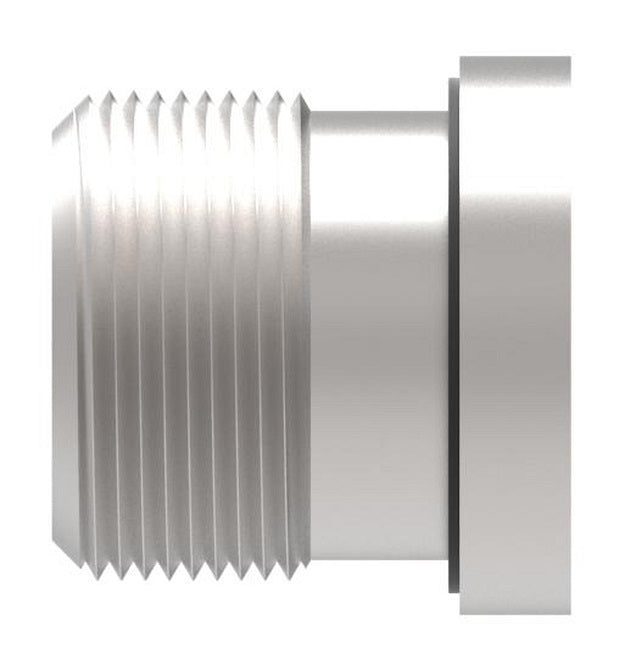

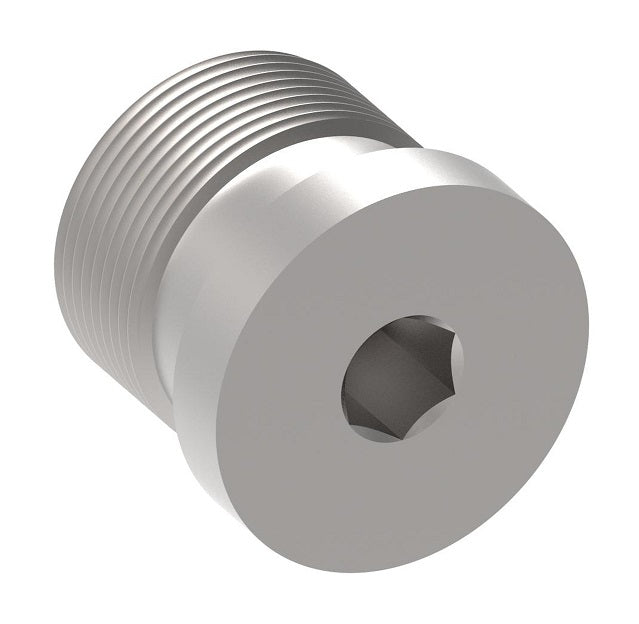

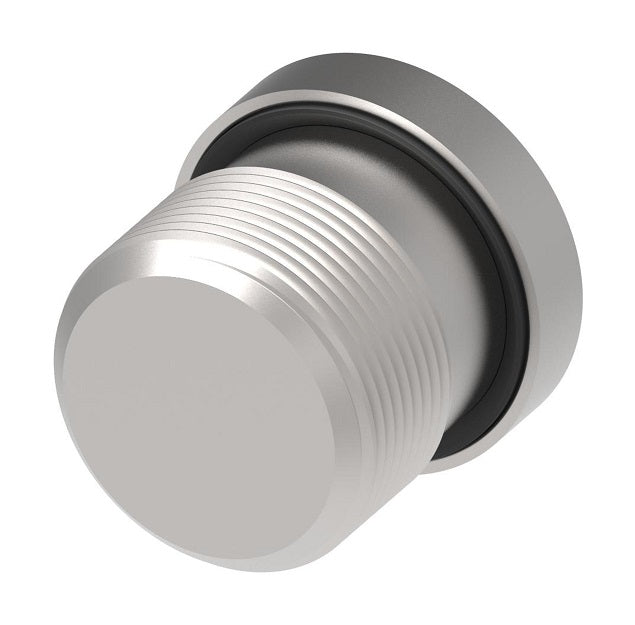

FF91577-22S Aeroquip by Danfoss | Metric Captive Seal Hollow Hex Plug | M22 Male Metric | Carbon Steel
FF91577-22S Aeroquip by Danfoss | Metric Captive Seal Hollow Hex Plug | M22 Male Metric | Carbon Steel
FF91577-22S Aeroquip by Danfoss | Metric Captive Seal Hollow Hex Plug | M22 Male Metric | Carbon Steel

FF91577-22S Aeroquip by Danfoss | Metric Captive Seal Hollow Hex Plug | M22 Male Metric | Carbon Steel

Minimum Order Quantity: 5 Units

Sale price$2.07

Aeroquip® by Danfoss
Metric Captive Seal Hollow Hex Plug

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–39 $1.95
40–79 $1.76
80+ $1.55
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Material(s):
  • Carbon Steel
Specifications:
  • Ref. ISO 9974-4
Steel
Part Number 		Thread T A Hex C
mm in mm in
FF91577-10S M10 x 1 12,3mm 0.48" 5,0mm 0.20"
FF91577-12S M12 x 1.5 17,3mm 0.68" 6,0mm 0.24"
FF91577-14S M14 x 1.5 17,3mm 0.68" 6,0mm 0.24"
FF91577-16S M16 x 1.5 17,3mm 0.68" 8,0mm 0.31"
FF91577-18S M18 x 1.5 17,3mm 0.68" 8,0mm 0.31"
FF91577-20S M20 x 1.5 19,3mm 0.76" 10,0mm 0.39"
FF91577-22S M22 x 1.5 19,3mm 0.76" 10,0mm 0.39"
FF91577-26S M26 x 1.5 21,3mm 0.84" 12,0mm 0.47"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
