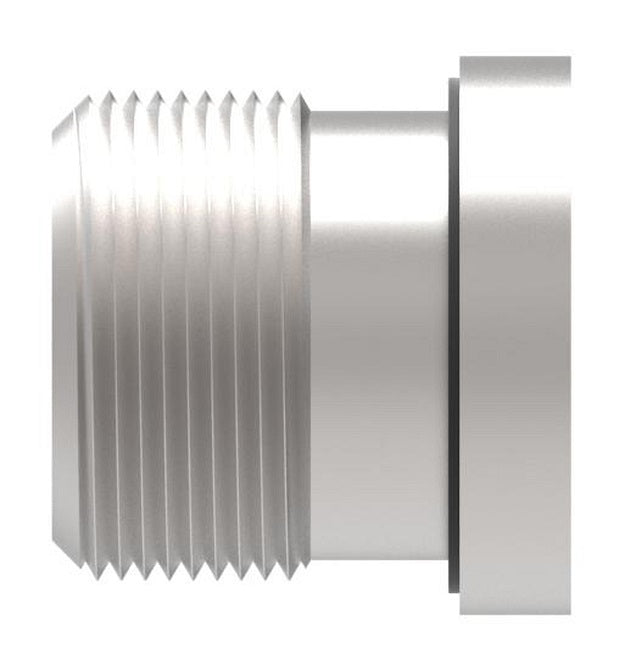

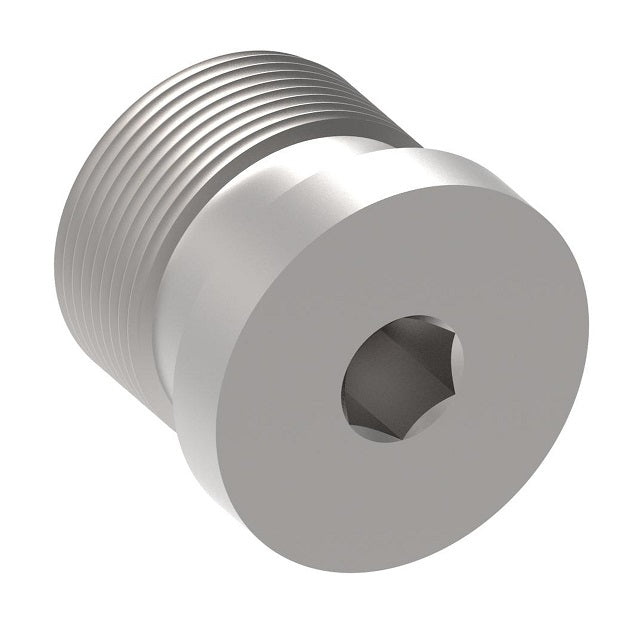

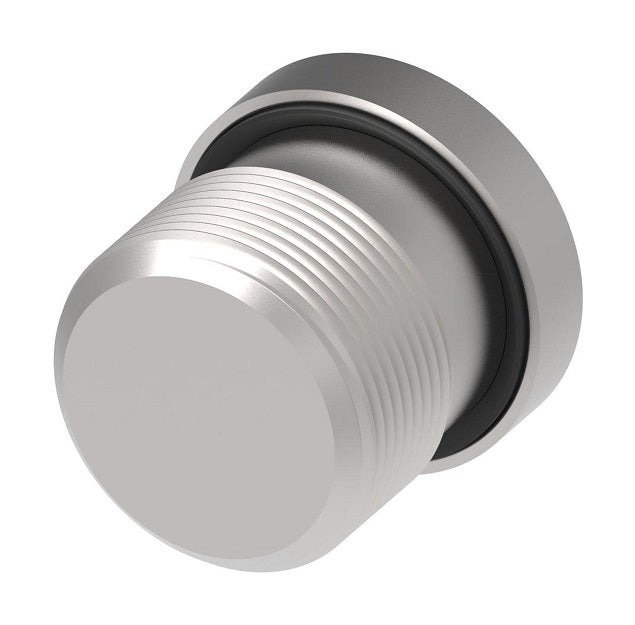

FF91572-04S Aeroquip by Danfoss | BSPP Captive Seal Hollow Hex Plug | -04 Male BSPP | Carbon Steel
Minimum Order Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Specifications: | |||
|---|---|---|---|
|
 |
||||
|---|---|---|---|---|
| Steel Part Number |
Thread T | A | C (Round) | Hex B |
| FF91572-02S | G 1/8-28 | 0.48" | 0.55" | 0.20" |
| FF91572-04S | G 1/4-19 | 0.68" | 0.74" | 0.24" |
| FF91572-06S | G 3/8-19 | 0.68" | 0.86" | 0.31" |
| FF91572-08S | G 1/2-14 | 0.76" | 1.06" | 0.39" |
| FF91572-12S | G 3/4-14 | 0.83" | 1.26" | 0.47" |
| FF91572-16S | G 3/8-19 | 0.90" | 1.57" | 0.67" |
| FF91572-20S | G 1-1/4-11 | 1.06" | 1.96" | 0.87" |
| FF91572-24S | G 1-1/2-11 | 1.13" | 2.16" | 0.94" |
Additional Product Data:
Brand:
Ends Configuration:
Material(s):
