FF90213-01-04S Aeroquip by Danfoss | STC (Snap to Connect) Release Tool | for -04 STC Fittings

FF90213-01-04S Aeroquip by Danfoss | STC (Snap to Connect) Release Tool | for -04 STC Fittings

Sale price$50.68

Aeroquip® by Danfoss

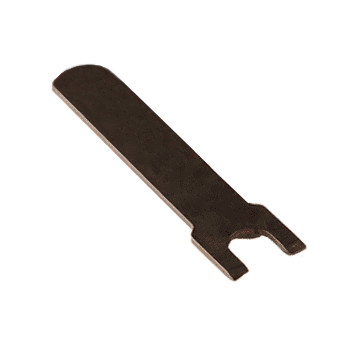

STC (Snap to Connect) Fitting Release Tool

Used for disconnecting the two halves of an STC connection.

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $47.64
40–79 $43.08
80+ $38.01
Discounts applied in cart/checkout.

Product Data:
How it Works:
  • As the STC tool is inserted behind the release sleeve, the steel insert pushes the latching ring forward into a groove in the female half I.D., allowing the two halves to be pulled apart. The thickness of the tool moves the sleeve forward far enough to make the disconnection, so prying sideways with the tool is unnecessary.
  • Note: Do not use the disconnect tool to pry on the parts. Prying can result in damage. Insert the tool straight into the connection.
Technical Info:
Part Number For Fitting Size:
FF90213-01-04S STC -04
FF90213-06 STC -06
FF90213-08 STC -08
FF90213-10 STC -10
FF90213-12 STC -12
FF90213-01-16S STC -16

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
