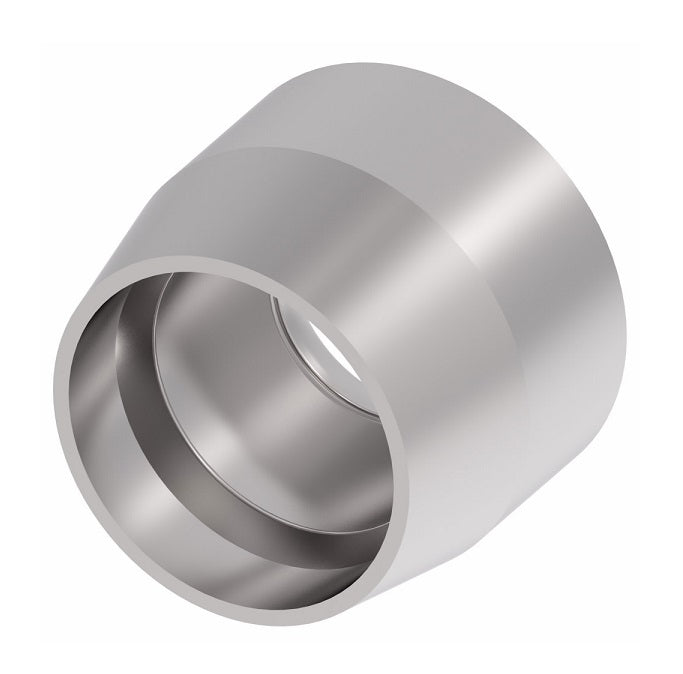

FF90103-10S Aeroquip by Danfoss | ORS-TF Sleeve Adapter | -10 O-Ring Face Seal | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Construction: | |||
|---|---|---|---|
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube OD | A | E | F |
| FF90103-04S | 0.25" | 0.32" | 0.17" | 0.25" |
| FF90103-06S | 0.38" | 0.34" | 0.26" | 0.38" |
| FF90103-08S | 0.50" | 0.37" | 0.38" | 0.50" |
| FF90103-10S | 0.63" | 0.40" | 0.48" | 0.63" |
| FF90103-12S | 0.75" | 0.44" | 0.61" | 0.76" |
| FF90103-16S | 1.00" | 0.50" | 0.81" | 1.00" |
| FF90103-20S | 1.25" | 0.56" | 1.05" | 1.26" |
| FF90103-24S | 1.50" | 0.62" | 1.26" | 1.51" |
Additional Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
