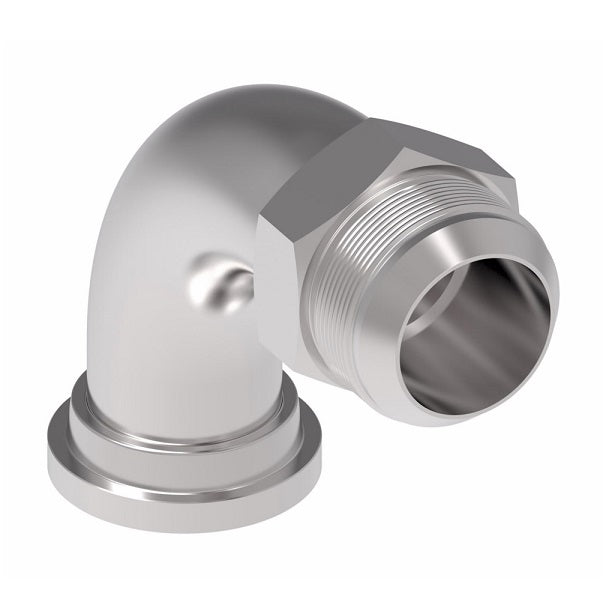

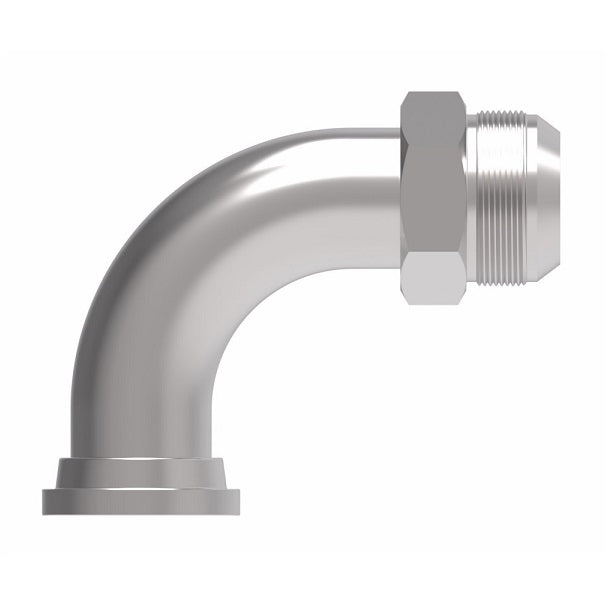

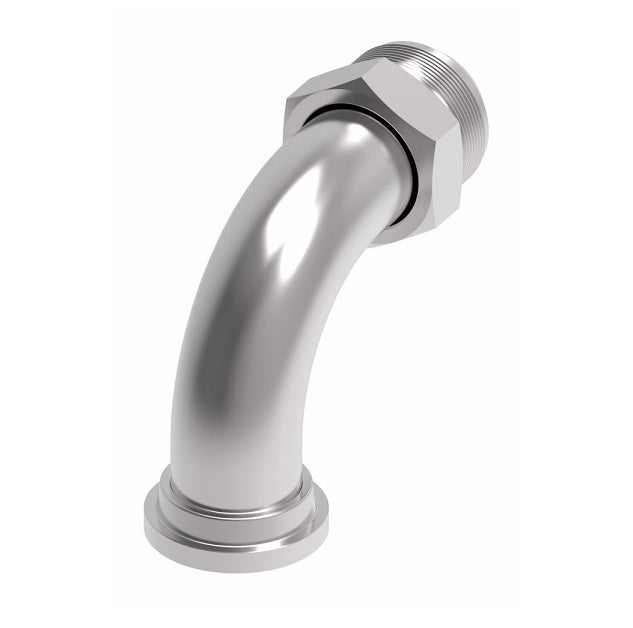

FF5540-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel
FF5540-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel
FF5540-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel

FF5540-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel

Sale price$101.08
Buy more, save moreDiscounts applied in cart/checkout.
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • mates with FC3425 - size-449 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A B
FF5540-1212S 3/4" 0.75" 1-1/16-12 2.81" 2.13"
FF5540-1612S 1" 0.75" 1-1/16-12 2.81" 2.13"
FF5540-1616S 1" 1.00" 1-5/16-12 3.41" 2.38"
FF5540-2016S 1-1/4" 1.00" 1-5/16-12 3.41" 2.38"
FF5540-2020S 1-1/4" 1.25" 1-5/8-12 3.71" 2.62"
FF5540-2416S 1-1/2" 1.00" 1-5/16-12 3.41" 2.75"
FF5540-2420S 1-1/2" 1.25" 1-5/8-12 3.71" 2.62"
FF5540-2424S 1-1/2" 1.50" 1-7/8-12 4.33" 3.12"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Code 62 Flange
  • 1-1/4in Male JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
