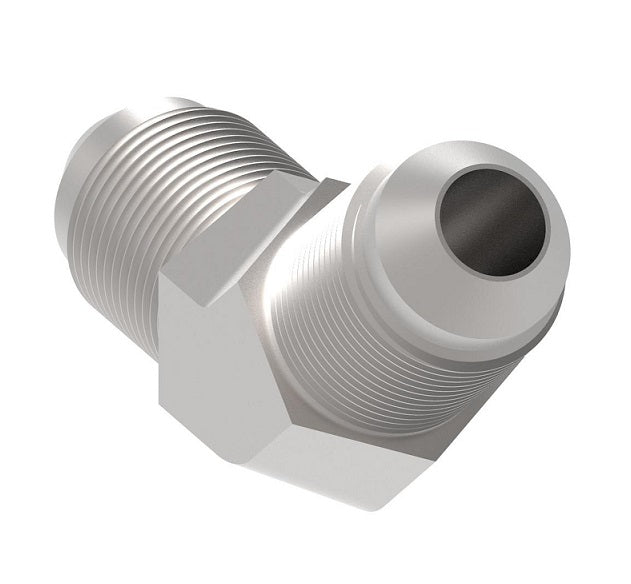

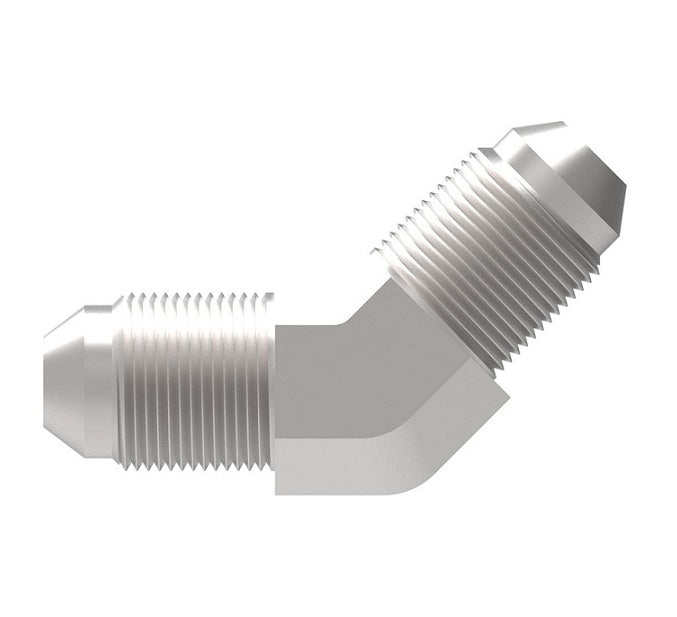

FF4308-0404S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -04 Male 37° JIC x -04 Male 37° JIC | Carbon Steel
FF4308-0404S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -04 Male 37° JIC x -04 Male 37° JIC | Carbon Steel
FF4308-0404S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -04 Male 37° JIC x -04 Male 37° JIC | Carbon Steel

FF4308-0404S Aeroquip by Danfoss | 37° JIC/37° JIC Adapter | 45° Elbow | -04 Male 37° JIC x -04 Male 37° JIC | Carbon Steel

Minimum Order Quantity: 5 Units

Sale price$3.66

Aeroquip® by Danfoss
37° JIC/37° JIC Adapter
Male 37° JIC x Male 37° JIC
45° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–39 $3.44
40–79 $3.11
80+ $2.75
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Shape:

45 Degree

Ends Configuration:
  • 1/4in Male JIC
  • 1/4in Male JIC
  • Some Ends Match
Specifications:
  • Ref. Performance per ISO 8434-2
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF4308-0404S 0.25" 7/16-20 7/16-20 0.85" 0.85"
FF4308-0606S 0.38" 9/16-18 9/16-18 0.90" 0.90"
FF4308-0808S 0.50" 1/2-14 1/2-14 1.06" 1.06"
FF4308-1212S 0.75" 1-1/16-12 1-1/16-12 1.40" 1.40"
FF4308-1616S 1.00" 1-5/16-12 1-5/16-12 1.52" 1.52"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
