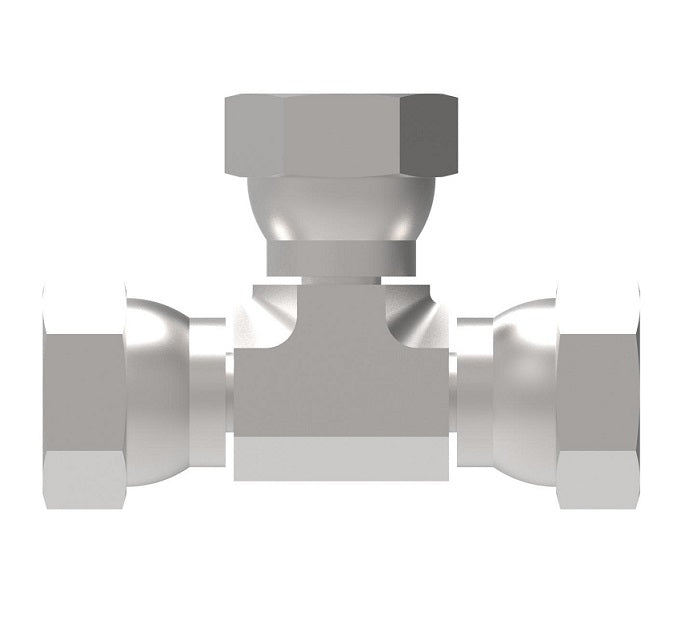

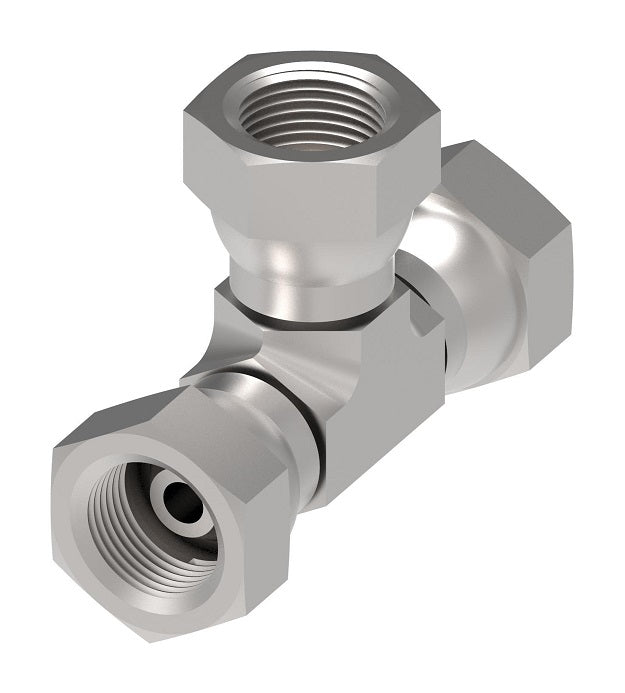

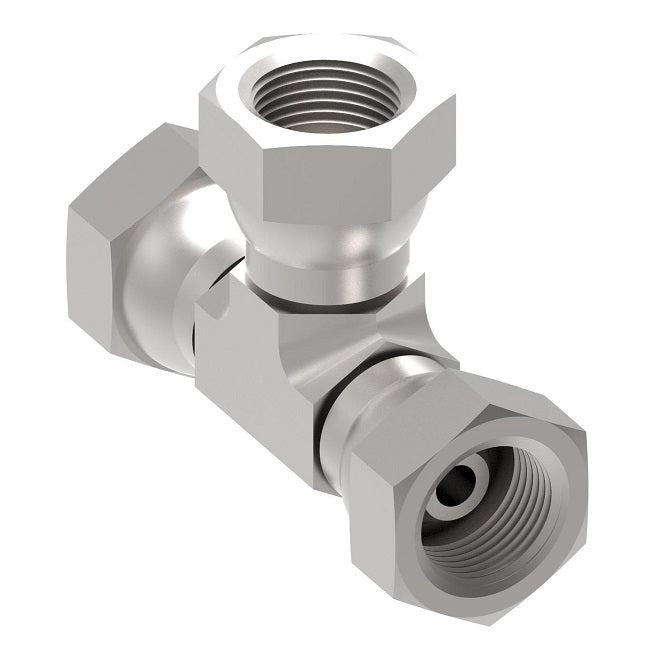

FF4306-0808S Aeroquip by Danfoss | JIC Union Adapter | Tee | -08 Female JIC x -08 Female JIC x -08 Female JIC | Carbon Steel
FF4306-0808S Aeroquip by Danfoss | JIC Union Adapter | Tee | -08 Female JIC x -08 Female JIC x -08 Female JIC | Carbon Steel
FF4306-0808S Aeroquip by Danfoss | JIC Union Adapter | Tee | -08 Female JIC x -08 Female JIC x -08 Female JIC | Carbon Steel

FF4306-0808S Aeroquip by Danfoss | JIC Union Adapter | Tee | -08 Female JIC x -08 Female JIC x -08 Female JIC | Carbon Steel

Sale price$17.60

Aeroquip® by Danfoss
JIC 74° Adapter Tee
Female JIC 74° x Female JIC 74° x Female JIC 74°

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $16.54
40–79 $14.96
80+ $13.20
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Shape:

Tee

Ends Configuration:
  • 1/2in Female JIC
  • 1/2in Female JIC
  • 1/2in Female JIC
  • Some Ends Match
Specifications:
  • Ref. Performance per ISO 8434-2
Steel
Part Number 		Tube OD Thread T A B
FF4306-0404S 0.25" 7/16-20 0.63" 0.63"
FF4306-0606S 0.38" 9/16-18 0.79" 0.79"
FF4306-0808S 0.50" 1/2-14 0.87" 0.87"
FF4306-1212S 0.75" 1 1/16-12 1.18" 1.18"
FF4306-1616S 1.00" 1 5/16-12 1.36" 1.36"
FF4306-2020S 1.25" 1 5/8-12 1.69" 1.69"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
