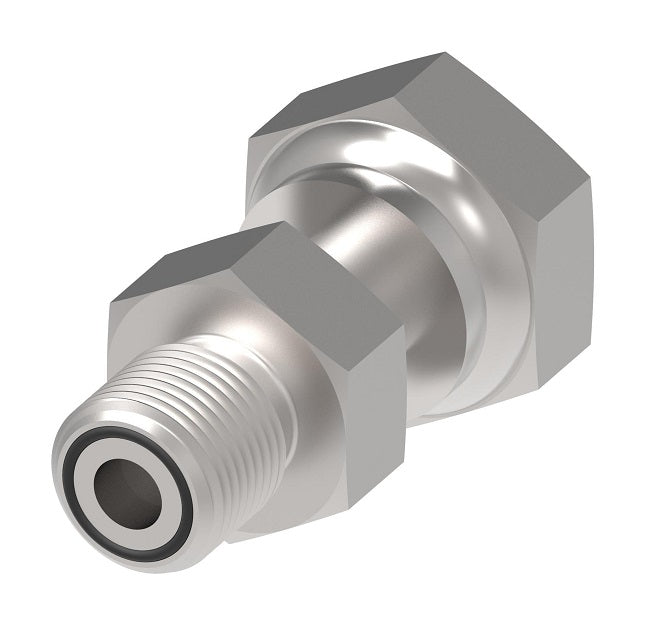

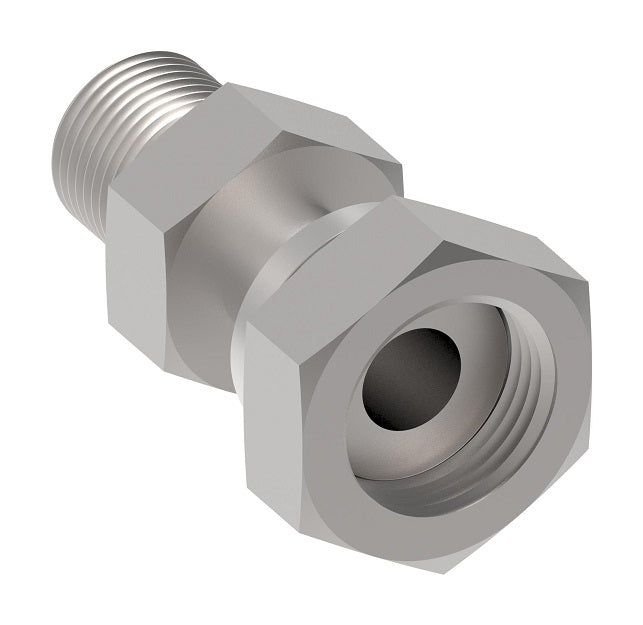

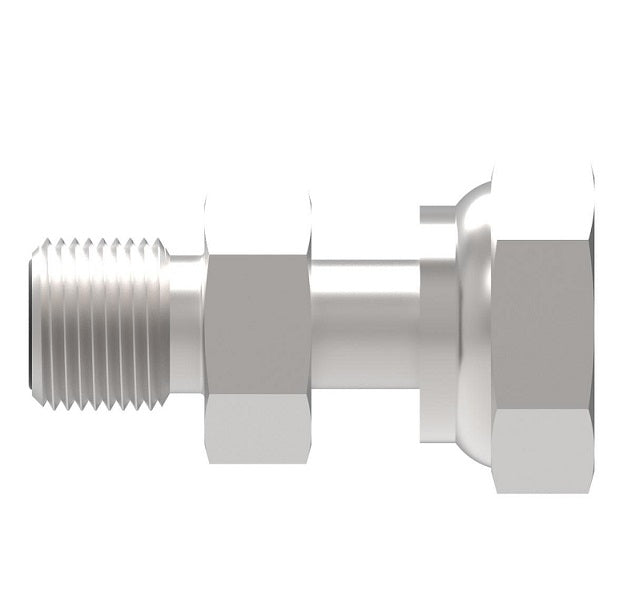

FF4278T1616S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -16 Male O-Ring Face Seal x -16 Female O-Ring Face Seal Swivel | Carbon Steel
FF4278T1616S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -16 Male O-Ring Face Seal x -16 Female O-Ring Face Seal Swivel | Carbon Steel
FF4278T1616S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -16 Male O-Ring Face Seal x -16 Female O-Ring Face Seal Swivel | Carbon Steel

FF4278T1616S Aeroquip by Danfoss | ORS/ORS Swivel Adapter | -16 Male O-Ring Face Seal x -16 Female O-Ring Face Seal Swivel | Carbon Steel

Sale price$16.55

Aeroquip® by Danfoss
ORS Male/ORS Female Swivel Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal Swivel
Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $15.56
40–79 $14.07
80+ $12.41
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Ends Configuration:
  • 1in Male O-Ring Face Seal
  • 1in Female O-Ring Face Seal
Material(s):
  • Carbon Steel
Specifications:
  • Ref. ISO 8434-3
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF4278T0404S 0.25" 9/16-18 9/16-18 1.30" 0.39"
FF4278T0606S 0.38" 11/16-16 11/16-16 1.52" 0.43"
FF4278T0808S 0.50" 13/16-16 13/16-16 1.69" 0.51"
FF4278T1212S 0.75" 1-3/16-12 1-3/16-12 2.20" 0.67"
FF4278T1616S 1.00" 1-7/16-12 1-7/16-12 2.36" 0.69"
FF4278T2020S 1.25" 1-11/16-12 1-11/16-12 2.44" 0.69"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
