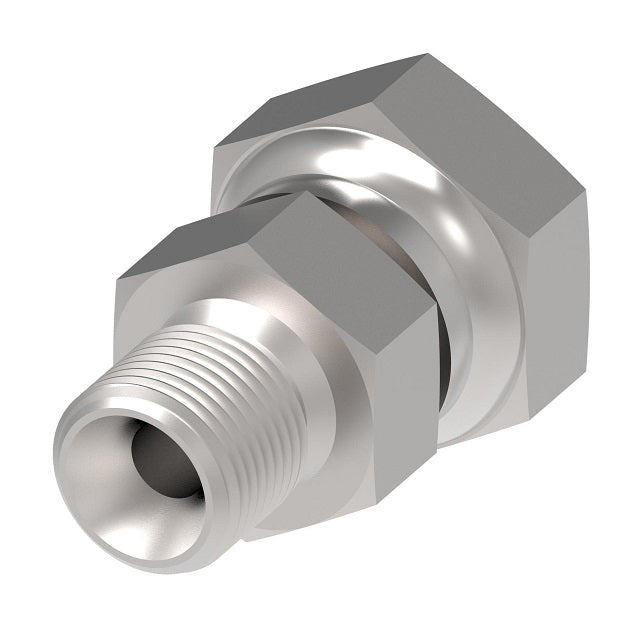

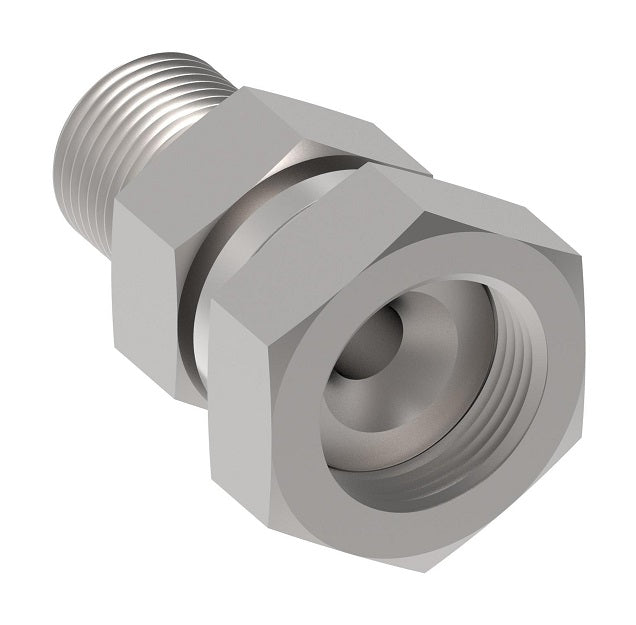

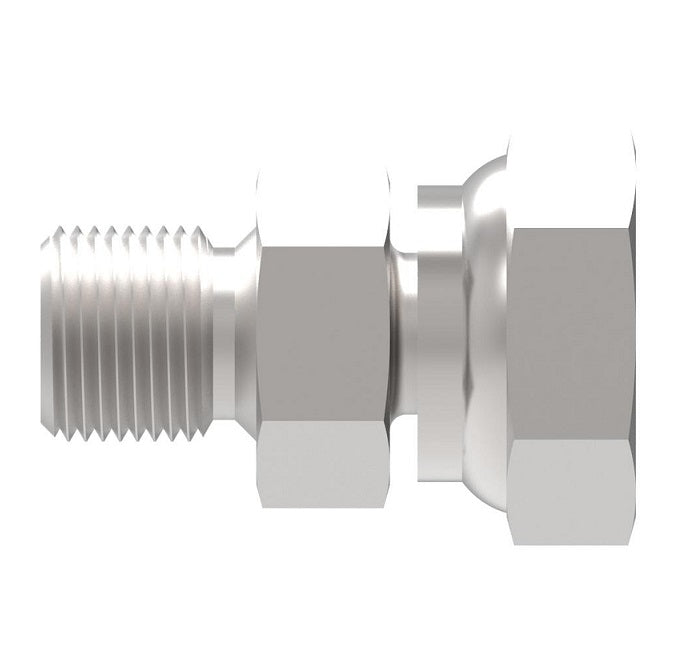

FF4179-1008S Aeroquip by Danfoss | 37° JIC / BSPP Swivel Adapter | -10 Female 37° JIC Swivel x -08 Male BSPP | Carbon Steel
FF4179-1008S Aeroquip by Danfoss | 37° JIC / BSPP Swivel Adapter | -10 Female 37° JIC Swivel x -08 Male BSPP | Carbon Steel
FF4179-1008S Aeroquip by Danfoss | 37° JIC / BSPP Swivel Adapter | -10 Female 37° JIC Swivel x -08 Male BSPP | Carbon Steel
Danfoss/Eaton

FF4179-1008S Aeroquip by Danfoss | 37° JIC / BSPP Swivel Adapter | -10 Female 37° JIC Swivel x -08 Male BSPP | Carbon Steel

Sale price$24.58

Aeroquip® by Danfoss
37° JIC / BSPP Swivel Adapter
Female JIC 37° Swivel x Male BSPP
Straight

Formerly Weatherhead series M9600x

(Formerly Eaton Aeroquip)

Product Data:

Brand:
  • Aeroquip
Ends Configuration:
  • 3/4in Female JIC
  • 1/2in Male BSPP
Material(s):
  • Carbon Steel
Steel
Part Number 		Tube OD Male BSPP Hex Size Hex C1 D D1 L
FF4179-0404S 1/4" G 1/4-19 9/16" 9/16" .172" .198"* 1.43"
FF4179-0504S - - - - - - -
FF4179-0604S 3/8" G 1/4-19 11/16" 11/16" .297" .198"* 1.56"
FF4179-0606S 3/8" G 3/8-19 11/16" 11/16" .297" .322"* 1.66"
FF4179-0806S 1/2" G 3/8-19 7/8" 7/8" .391" .322"* 1.77"
FF4179-0808S 1/2" G 1/2-14 7/8" 7/8" .391" .448"* 1.92"
FF4179-1008S 5/8" G 1/2-14 1" 1" .484" .448"* 1.97"
FF4179-1212S 3/4" G 3/4-14 1-1/4" 1-1/8" .609" .666"* 2.25"
FF4179-1616S 1" G 1-11 1-1/2" 1-3/8" .845" .885"* 2.48"

* Optional counterbore

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
