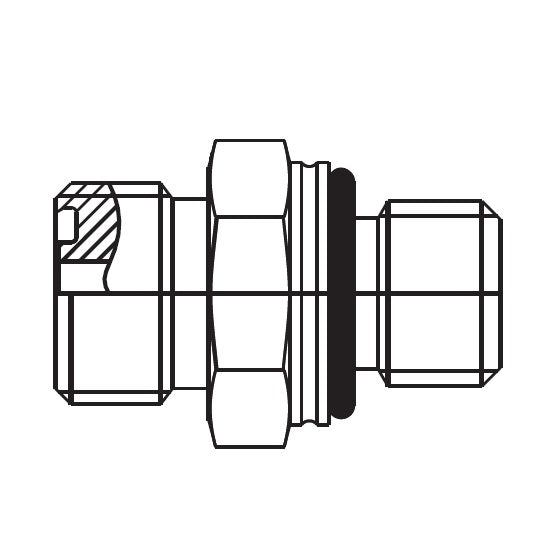

FF2742T1022S Aeroquip by Danfoss | ORS/Male ISO 6149 Boss (S-Series) Adapter | -10 Male O-Ring Face Seal x M22 Male ISO 6149 Boss | Steel

FF2742T1022S Aeroquip by Danfoss | ORS/Male ISO 6149 Boss (S-Series) Adapter | -10 Male O-Ring Face Seal x M22 Male ISO 6149 Boss | Steel

Sale price$15.73
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 52M0187
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A B C
FF2742T0612S 0.38" 11/16-16 M12 x 1.5 1.26" 0.44" 0.43"
FF2742T0614S 0.38" 11/16-16 M14 x 1.5 1.26" 0.44" 0.43"
FF2742T0818S - - - - - -
FF2742T0822S 0.50" 13/16-16 M22 x 1.5 1.55" 0.50" 0.59"
FF2742T1022S 0.63" 1-14 M22 x 1.5 1.65" 0.61" 0.59"
FF2742T1222S 0.75" 1-3/16-12 M22 x 1.5 1.71" 0.67" 0.59"

Additional Product Data:

Shape:

Straight

Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
