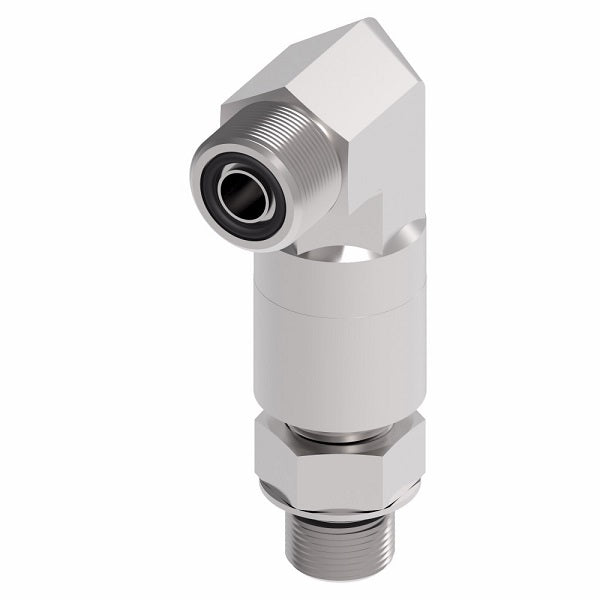

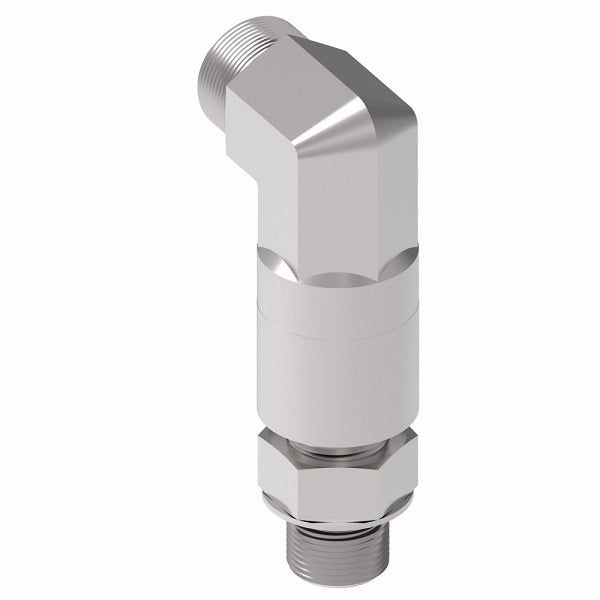

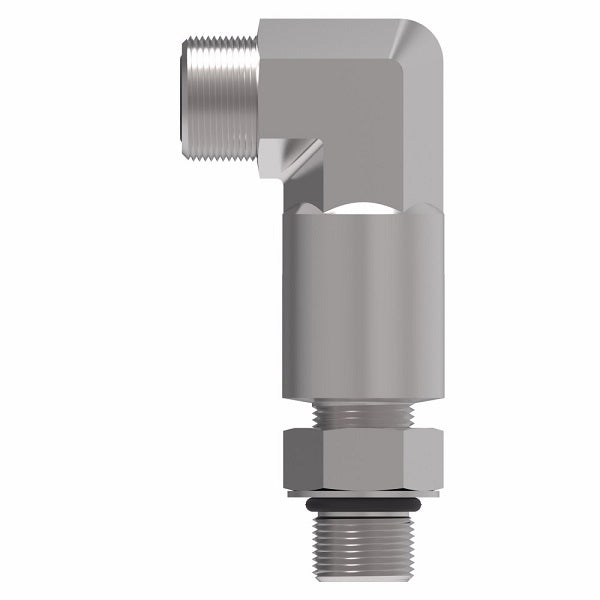

FF2227T1616S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Steel
Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Long 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $46.76 |
| 40–79 | $42.28 |
| 80+ | $37.31 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel with Buna-N O-Ring Part Number |
Steel with Viton O-Ring Part Number |
Tube OD | Thread T1 | Thread T2 | A | B | C |
| FF2227T0404S | 0.25" | 9/16-18 | 7/16-20 | 0.85" | 2.23" | 0.43" | |
| FF2227T0606S | 0.38" | 11/16-16 | 9/16-18 | 0.98" | 2.61" | 0.47" | |
| FF2227T0808S | 0.50" | 13/16-16 | 3/4-16 | 1.10" | 2.95" | 0.55" | |
| FF2227T1010S | 0.63" | 1-14 | 7/8-14 | 1.31" | 3.51" | 0.63" | |
| FF2227T1212S | 0.75" | 1-3/16-12 | 1-1/16-12 | 1.47" | 3.97" | 0.73" | |
| FF2227T1616S | FF2227T1616-213 | 1.00" | 1-7/16-12 | 1-5/16-12 | 1.64" | 4.51" | 0.73" |
| FF2227T2020S | 1.25" | 1-11/16-12 | 1-5/8-12 | 1.76" | 4.98" | 0.73" | |
