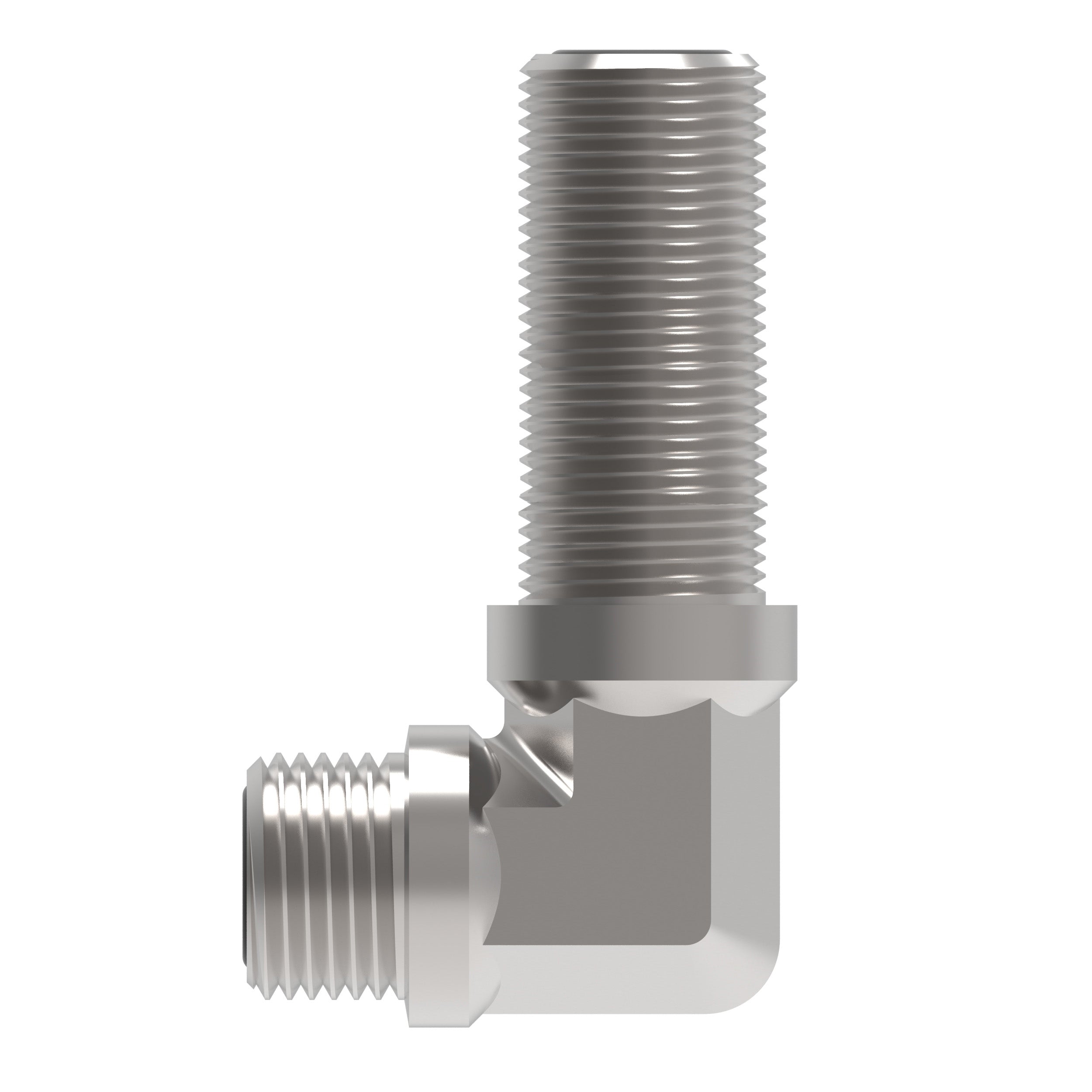

FF2030H4-1212S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter without Nut | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

FF2030H4-1212S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter without Nut | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

Sale price$26.82

Aeroquip® by Danfoss
ORS Male/ORS Male Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
90° Elbow

Formerly Weatherhead Series 4525x

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $25.21
40–79 $22.80
80+ $20.12
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Ends Configuration:
  • 3/4in Male O-Ring Face Seal
  • 3/4in Male O-Ring Face Seal
  • Some Ends Match
Material(s):
  • Steel
Specifications:
  • Ref. SAE 520701
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Steel
Part Number
without Nut		 Tube OD Thread T1 Thread T2 A B E
FF2030T0404S - 0.25" 9/16-18 9/16-18 0.89" 1.85" 0.17"
FF2030T0606S FF2030H4-0606S 0.38" 11/16-16 11/16-16 1.02" 2.05" 0.26"
FF2030T0806S - 0.50" 13/16-16 11/16-16 1.14" 2.12" 0.26"
FF2030T0808S FF2030H4-0808S 0.50" 13/16-16 13/16-16 1.14" 2.18" 0.38"
FF2030T1010S - 0.63" 1-14 1-14 1.36" 2.48" 0.48"
FF2030T1212S FF2030H4-1212S 0.75" 1-3/16-12 1-3/16-12 1.52" 2.65" 0.61"
FF2030T1616S FF2030H4-1616S 1.00" 1-7/16-12 1-7/16-12 1.67" 2.80" 0.81"
FF2030T2020S - 1.25" 1-11/16-12 1-11/16-12 1.79" 2.97" 1.03"
