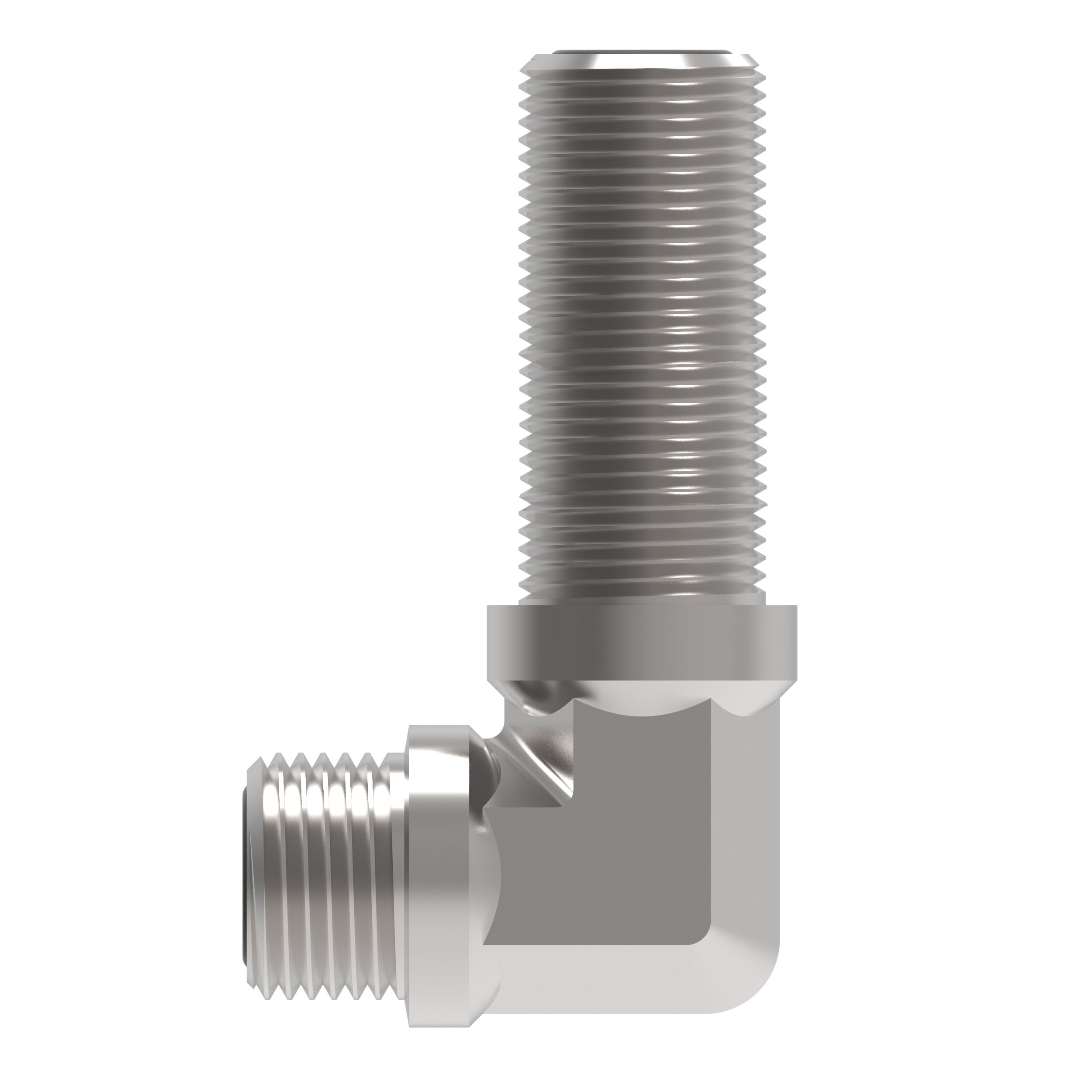

FF2030H4-0808S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter without Nut | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel

FF2030H4-0808S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter without Nut | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel

Sale price$19.96
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 520701
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Steel
Part Number
without Nut		 Tube OD Thread T1 Thread T2 A B E
FF2030T0404S - 0.25" 9/16-18 9/16-18 0.89" 1.85" 0.17"
FF2030T0606S FF2030H4-0606S 0.38" 11/16-16 11/16-16 1.02" 2.05" 0.26"
FF2030T0806S - 0.50" 13/16-16 11/16-16 1.14" 2.12" 0.26"
FF2030T0808S FF2030H4-0808S 0.50" 13/16-16 13/16-16 1.14" 2.18" 0.38"
FF2030T1010S - 0.63" 1-14 1-14 1.36" 2.48" 0.48"
FF2030T1212S FF2030H4-1212S 0.75" 1-3/16-12 1-3/16-12 1.52" 2.65" 0.61"
FF2030T1616S FF2030H4-1616S 1.00" 1-7/16-12 1-7/16-12 1.67" 2.80" 0.81"
FF2030T2020S - 1.25" 1-11/16-12 1-11/16-12 1.79" 2.97" 1.03"

Additional Product Data:

Brand:
  • Aeroquip
Ends Configuration:
  • 1/2in Male O-Ring Face Seal
  • 1/2in Male O-Ring Face Seal
  • Some Ends Match
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
