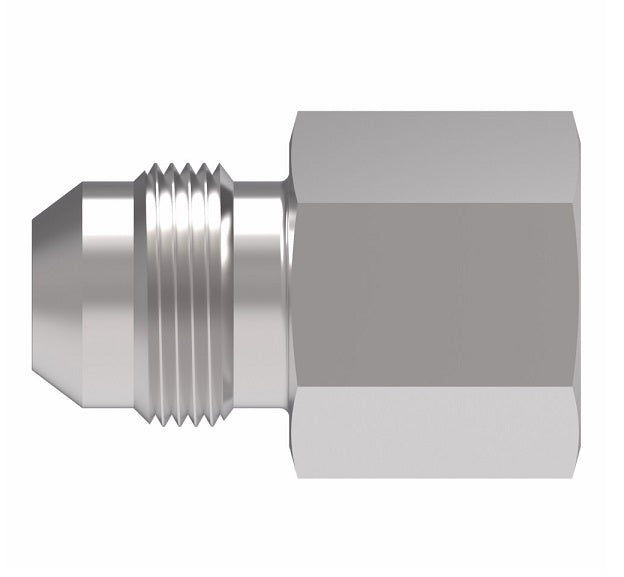

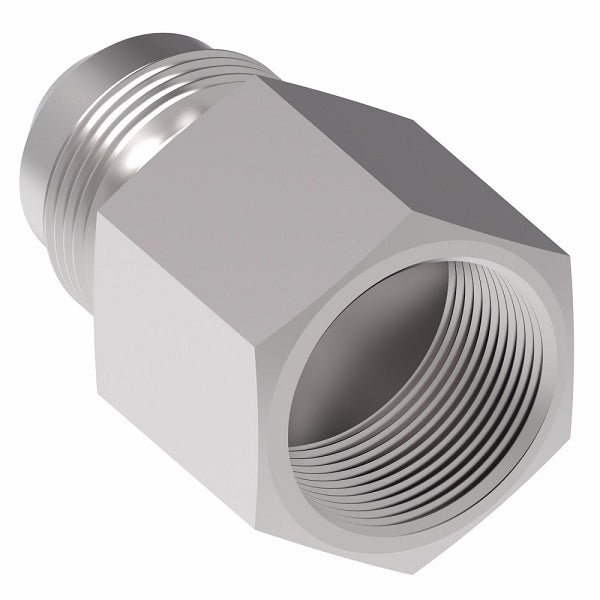

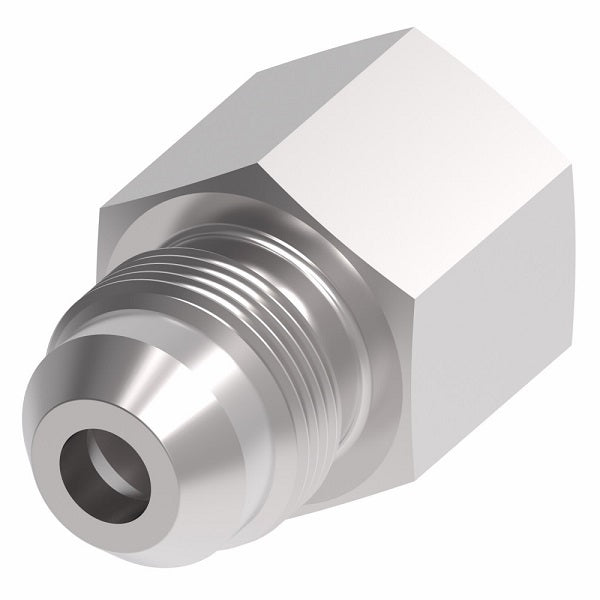

FF1981-060-0606 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -06 Male 37° JIC Flare x -06 Female 37° JIC Flare | 0.060" Drill Size | Steel
Aeroquip® by Danfoss
Restrictor 37° Male Flare/37° Female Adapter
Male 37° JIC Flare x Female 37° JIC Flare
Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $26.17 |
| 40–79 | $23.66 |
| 80+ | $20.88 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Tube O.D. | Drill Size | Thread T1 | Thread T2 | A | B* |
| FF1981-000-0404 | 0.25" | - | 7/16-20 | 7/16-20 | 1.14" | 0.69" |
| FF1981-020-0404 | 0.25" | 0.020" | 7/16-20 | 7/16-20 | 1.14" | 0.69" |
| FF1981-031-0404 | 0.25" | 0.031" | 7/16-20 | 7/16-20 | 1.14" | 0.69" |
| FF1981-045-0404 | 0.25" | 0.045" | 7/16-20 | 7/16-20 | 1.14" | 0.69" |
| FF1981-047-0404 | 0.25" | 0.047" | 7/16-20 | 7/16-20 | 1.14" | 0.69" |
| FF1981-000-0606 | 0.38" | - | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-015-0606 | 0.38" | 0.015" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-020-0606 | 0.38" | 0.020" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-030-0606 | 0.38" | 0.030" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-031-0606 | 0.38" | 0.031" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-039-0606 | 0.38" | 0.039" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-047-0606 | 0.38" | 0.047" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-060-0606 | 0.38" | 0.060" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-062-0606 | 0.38" | 0.062" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-125-0606 | 0.38" | 0.125" | 9/16-18 | 9/16-18 | 1.19" | 0.72" |
| FF1981-000-0808 | 0.50" | - | 3/4-16 | 3/4-16 | 1.36" | 1.01" |
| FF1981-031-0808 | 0.50" | 0.031" | 3/4-16 | 3/4-16 | 1.36" | 1.01" |
| FF1981-078-0808 | 0.50" | 0.078" | 3/4-16 | 3/4-16 | 1.36" | 1.01" |
| FF1981-125-0808 | 0.50" | 0.125" | 3/4-16 | 3/4-16 | 1.36" | 1.01" |
*Length required to insert adapter at installation.
