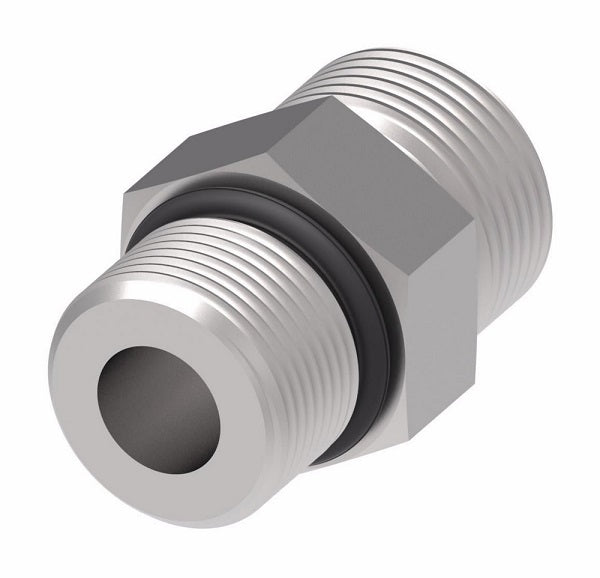

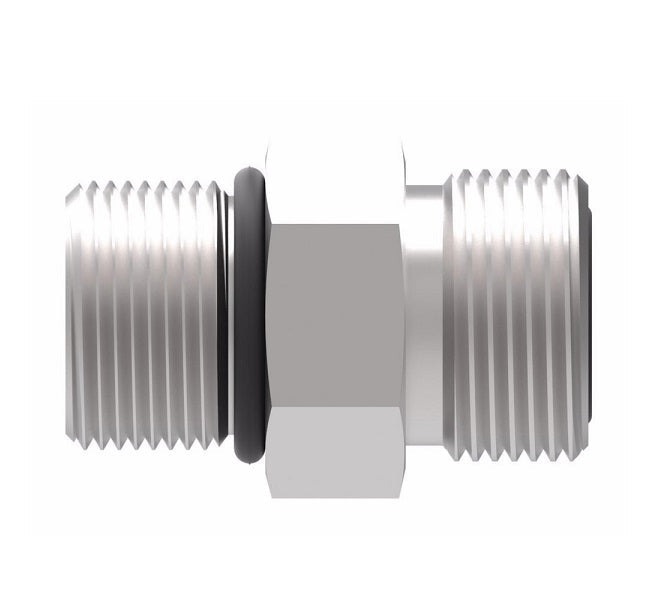

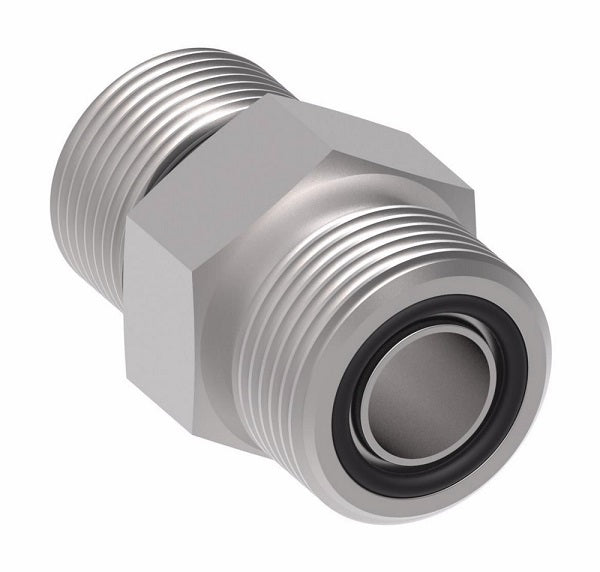

FF1852T1210S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel
Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.85 |
| 40–79 | $10.72 |
| 80+ | $9.46 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel with Buna-N O-Ring Part Number |
Steel with Viton O-Ring Part Number |
Tube OD | Thread T1 | Thread T2 | A | C | Hex 1 |
| FF1852T0403S | - | 0.25" | 9/16-18 | 3/8-24 | 1.07" | 0.37" | 0.62" |
| FF1852T0404S | - | 0.25" | 9/16-18 | 7/16-20 | 1.13" | 0.43" | 0.62" |
| FF1852T0405S | - | 0.25" | 9/16-18 | 1/2-20 | 1.13" | 0.43" | 0.62" |
| FF1852T0406S | - | 0.25" | 9/16-18 | 9/16-18 | 1.20" | 0.47" | 0.69" |
| FF1852T0408S | - | 0.25" | 9/16-18 | 3/4-16 | 1.32" | 0.55" | 0.88" |
| FF1852T0603S | - | 0.38" | 11/16-16 | 3/8-24 | 1.28" | 0.37" | 0.75" |
| FF1852T0604S | - | 0.38" | 11/16-16 | 7/16-20 | 1.34" | 0.43" | 0.75" |
| FF1852T0605S | - | 0.38" | 11/16-16 | 1/2-20 | 1.22" | 0.43" | 0.75" |
| FF1852T0606S | - | 0.38" | 11/16-16 | 9/16-18 | 1.26" | 0.47" | 0.75" |
| FF1852T0608S | FF1852T0608-213 | 0.38" | 11/16-16 | 3/4-16 | 1.38" | 0.55" | 0.88" |
| FF1852T0610S | - | 0.38" | 11/16-16 | 7/8-14 | 1.53" | 0.63" | 1.00" |
| FF1852T0612S | - | 0.38" | 11/16-16 | 1-1/16-12 | 1.69" | 0.73" | 1.25" |
| FF1852T0616S | - | 0.38" | 11/16-16 | 1-5/16-12 | 1.73" | 0.73" | 1.50" |
| FF1852T0806S | FF1852T0806-213 | 0.50" | 13/16-16 | 9/16-18 | 1.48" | 0.47" | 0.88" |
| FF1852T0808S | - | 0.50" | 13/16-16 | 3/4-16 | 1.44" | 0.55" | 0.88" |
| FF1852T0810S | - | 0.50" | 13/16-16 | 7/8-14 | 1.59" | 0.63" | 1.00" |
| FF1852T0812S | - | 0.50" | 13/16-16 | 1-1/16-12 | 1.75" | 0.73" | 1.25" |
| FF1852T0814S | - | 0.50" | 13/16-16 | 1-3/16-12 | 1.75" | 0.73" | 1.38" |
| FF1852T0816S | - | 0.50" | 13/16-16 | 1-5/16-12 | 1.79" | 0.73" | 1.50" |
| FF1852T1008S | - | 0.63" | 1-14 | 3/4-16 | 1.78" | 0.55" | 1.06" |
| FF1852T1010S | - | 0.63" | 1-14 | 7/8-14 | 1.70" | 0.63" | 1.06" |
| FF1852T1012S | - | 0.63" | 1-14 | 1-1/16-12 | 1.86" | 0.73" | 1.25" |
| FF1852T1206S | - | 0.75" | 1-3/16-12 | 9/16-18 | 1.77" | 0.47" | 1.25" |
| FF1852T1208S | - | 0.75" | 1-3/16-12 | 3/4-16 | 1.91" | 0.55" | 1.25" |
| FF1852T1210S | - | 0.75" | 1-3/16-12 | 7/8-14 | 1.99" | 0.63" | 1.25" |
| FF1852T1212S | - | 0.75" | 1-3/16-12 | 1-1/16-12 | 1.92" | 0.73" | 1.25" |
| FF1852T1214S | - | 0.75" | 1-3/16-12 | 1-3/16-12 | 1.92" | 0.73" | 1.38" |
| FF1852T1216S | - | 0.75" | 1-3/16-12 | 1-5/16-12 | 1.96" | 0.73" | 1.50" |
| FF1852T1608S | - | 1.00" | 1-7/16-12 | 3/4-16 | 1.96" | 0.55" | 1.50" |
| FF1852T1610S | - | 1.00" | 1-7/16-12 | 7/8-14 | 2.04" | 0.63" | 1.50" |
| FF1852T1612S | - | 1.00" | 1-7/16-12 | 1-1/16-12 | 2.14" | 0.73" | 1.50" |
| FF1852T1614S | - | 1.00" | 1-7/16-12 | 1-3/16-12 | 1.98" | 0.73" | 1.50" |
| FF1852T1616S | FF1852T1616-213 | 1.00" | 1-7/16-12 | 1-5/16-12 | 1.98" | 0.73" | 1.50" |
| FF1852T1620S | - | 1.00" | 1-7/16-12 | 1-5/8-12 | 2.06" | 0.73" | 1.88" |
| FF1852T2016S | - | 1.25" | 1-11/16-12 | 1-5/16-12 | 2.28" | 0.73" | 1.75" |
| FF1852T2020S | - | 1.25" | 1-11/16-12 | 1-5/8-12 | 2.06" | 0.73" | 1.88" |
| FF1852T2024S | - | 1.25" | 1-11/16-12 | 1-7/8-12 | 2.13" | 0.73" | 2.12" |
| FF1852T2420S | - | 1.50" | 2-12 | 1-5/8-12 | 2.35" | 0.73" | 2.12" |
| FF1852T2424S | - | 1.50" | 2-12 | 1-7/8-12 | 2.13" | 0.73" | 2.12" |
