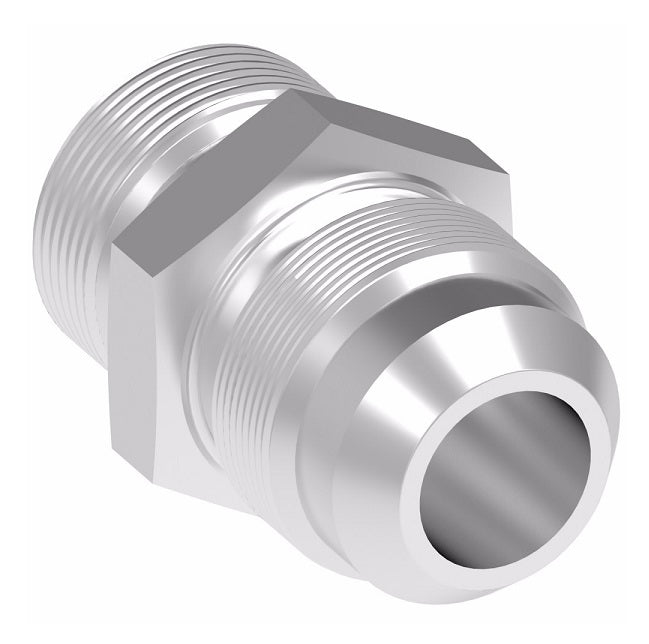

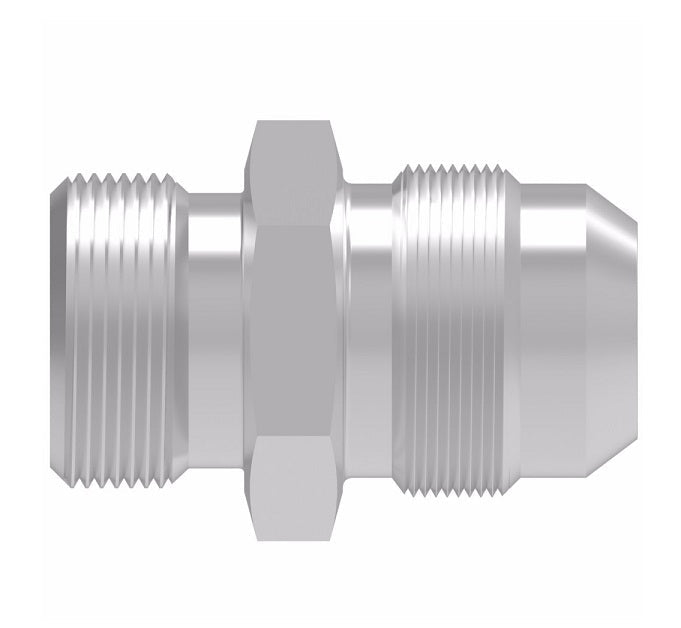

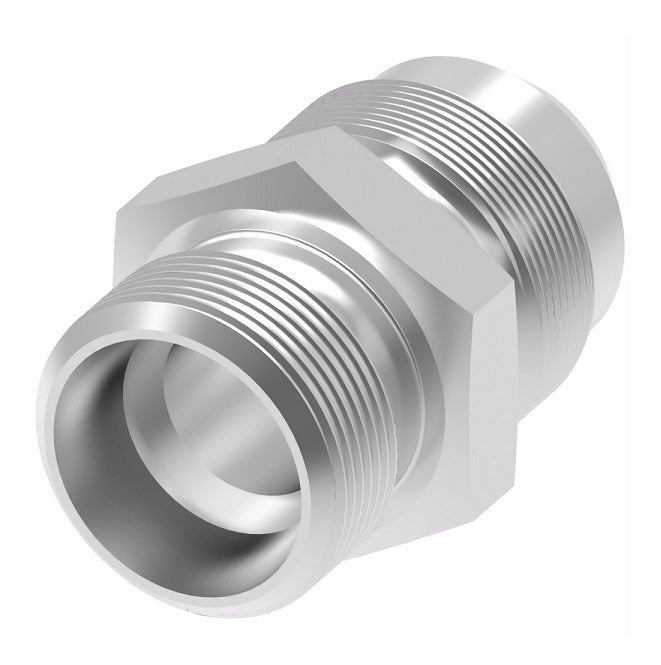

FF1315-1212S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -12 Male SAE Flareless x -12 Male 37° JIC Flare | Steel
Aeroquip® by Danfoss
Male SAE Flareless/37° JIC Flare Adapter
Male SAE Flareless x Male 37° JIC Flare
Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $30.46 |
| 40–79 | $27.54 |
| 80+ | $24.30 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
 |
|||||
|---|---|---|---|---|---|
| Part Number Steel |
Tube O.D. | Thread T1 | Thread T2 | A | B |
| FF1315-0404S | 0.25" | 7/16-20 | 7/16-20 | 1.22" | 0.50" |
| FF1315-0604S | 0.38" | 9/16-18 | 7/16-20 | 1.27" | 0.62" |
| FF1315-0606S | 0.38" | 9/16-18 | 9/16-18 | 1.28" | 0.62" |
| FF1315-0806S | 0.50" | 3/4-16 | 9/16-18 | 1.37" | 0.81" |
| FF1315-0808S | 0.50" | 3/4-16 | 3/4-16 | 1.47" | 0.81" |
| FF1315-1008S | 0.63" | 7/8-14 | 3/4-16 | 1.59" | 0.94" |
| FF1315-1010S | 0.63" | 7/8-14 | 7/8-14 | 1.69" | 0.94" |
| FF1315-1212S | 0.75" | 1-1/16-12 | 1-1/16-12 | 1.93" | 1.12" |
| FF1315-1616S | 1.00" | 1-5/16-12 | 1-5/16-12 | 1.98" | 1.38" |
