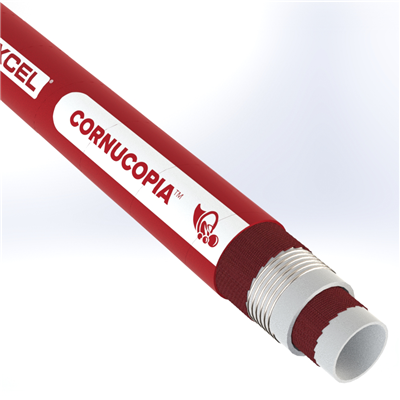

FDA-4.0 by Texcel | CORNUCOPIA Series | All-Purpose Sanitary Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red
Texcel
CORNUCOPIA Series | All-Purpose Sanitary Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 3–5 | $68.30 |
| 6+ | $65.39 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | CORNOCUPIA™ hose is a multipurpose sanitary hose. CORNUCOPIA™ is formulated for use with fatty foods, wine, beer, potable water, and other related foodstuffs. The white, smooth EPDM tube ensures food quality by being odorless and does not alter taste. The UHMWPE outer cover not only dramatically increases the abrasion resistance of the hose but is Antimicrobial and offers increased dragability. The high working temperature allows for the sterilization of the hose with steam at 230°F for 30 minutes. Meets FDA title 21 part. 177.2600(f) for fatty foods, BfR, ADI Free, D.M. 21/03/73, EC 1935 / 2004. | Tube: | White, EPDM |
| Cover: | Red, EPDM with a clear UHMWPE wrap | Reinforcement: | High strength synthetic plies with steel helix |
| Safety Factor: | 3:1 | Temperature: | -40°F to +284°F |
| Branding: | TEXCEL® CORNUCOPIA™ ALL PURPOSE SANITARY HOSE 150 PSI (10 BAR) W.P. UHMW COVER TEMP. -40F TO 284F (-40C TO 140C) FDA BfR D.M.21/03/73 ADI FREE STERILIZATION AT 230F FOR 30 MINS | Safety Note: | It is recommended that all food grade hose be thoroughly flushed prior to initial use |
| Features: | FDA and USDA compliant UHMWPE abrasion-resistant, Antimicrobial cover |
||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| FDA-1.0 | 1" | 1-24/64" | 150 psi | 29 | 3.5" | 0.54 lbs |
| FDA-1.5 | 1-1/2" | 1-62/64" | 150 psi | 29 | 5" | 0.93 lbs |
| FDA-2.0 | 2" | 2-32/64" | 150 psi | 29 | 7.5" | 1.28 lbs |
| FDA-3.0 | 3" | 3-32/64" | 150 psi | 29 | 11" | 2.02 lbs |
| FDA-4.0 | 4" | 4-36/64" | 150 psi | 29 | 13" | 3.09 lbs |
