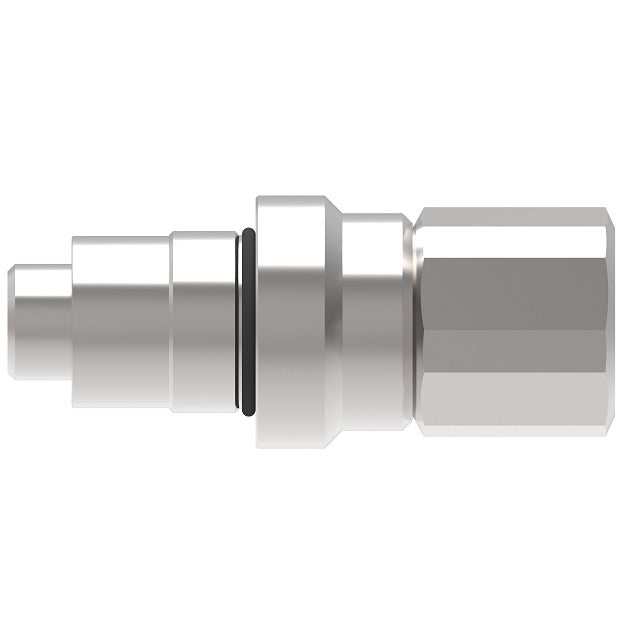

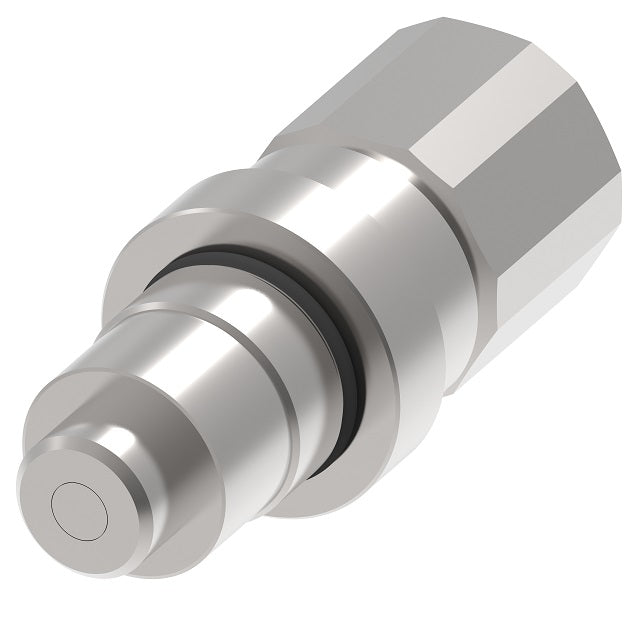

FD96-1005-20-20 Hansen® by Danfoss | Quick Disconnect Coupling | FD96 Series | 1-1/4" Female SAE O-Ring Boss x 1-1/4" High Pressure Thread to Connect Flush Face | Plug | NBR Seal | Steel
FD96-1005-20-20 Hansen® by Danfoss | Quick Disconnect Coupling | FD96 Series | 1-1/4" Female SAE O-Ring Boss x 1-1/4" High Pressure Thread to Connect Flush Face | Plug | NBR Seal | Steel
FD96-1005-20-20 Hansen® by Danfoss | Quick Disconnect Coupling | FD96 Series | 1-1/4" Female SAE O-Ring Boss x 1-1/4" High Pressure Thread to Connect Flush Face | Plug | NBR Seal | Steel

FD96-1005-20-20 Hansen® by Danfoss | Quick Disconnect Coupling | FD96 Series | 1-1/4" Female SAE O-Ring Boss x 1-1/4" High Pressure Thread to Connect Flush Face | Plug | NBR Seal | Steel

Sale price$489.28
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Thread together design allows connection and disconnection under pressure up to 4,300 psi.
  • Low connection force.
  • Dual flush-face valving with non-spill design.
  • Working pressures up to 8,700 psi.
Applications & Markets:
  • Hydraulic Fluid Transfer
  • High-impulse Hydraulics
  • Oilfields
  • Mining
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent and black oxide plating.
Body
Size		 Max. Operating Pressure Min. Burst Pressure Rated Flow Fluid
Loss		 Req. Torque
to Connect
Connected Plug
Male Half		 Socket
Female Half		 Connected Plug
Male Half		 Socket
Female Half
1/4" 600 bar 8,700 psi 600 bar 8,700 psi 420 bar 6,090 psi 1,500 bar 21,750 psi 1,500 bar 21,750 psi 1,260 bar 18,270 psi 12 lpm 3.2 gpm .012 cc 29-37 lbs. 40-50 N
3/8" 550bar 7,980 psi 550 bar 7,980 psi 330 bar 4,785 psi 1,400 bar 20,300 psi 1,400 bar 20,300 psi 1,000 bar 14,500 psi 23 lpm 6.1 gpm .040 cc 37-44 lbs. 50-60 N
1/2" 550 bar 7,980 psi 550 bar 7,980 psi 330 bar 4,785 psi 1,400 bar 20,300 psi 1,400 bar 20,300 psi 1,000 bar 14,500 psi 45 lpm 11.9 gpm .025 cc 48-55 lbs. 65-75 N
3/4" 550bar 7,980 psi 550 bar 7,980 psi 330 bar 4,785 psi 1,400 bar 20,300 psi 1,400 bar 20,300 psi 1,000 bar 14,500 psi 74 lpm 19.6 gpm .033 cc 52-59 lbs. 70-80 N
1" 500bar 7,250 psi 500 bar 7,250 psi 330 bar 4,785 psi 1,250 bar 18,125 psi 1,250 bar 18,125 psi 1,000 bar 14,500 psi 100 lpm 26.5 gpm .018 cc 66-81 lbs. 90-110 N
1-1/4" 470 bar 6,800 psi 470 bar 6,800 psi 300 bar 4,350 psi 1,200 bar 17,400 psi 1,200 bar 17,400 psi 800 bar 11,600 psi 189 lpm 50.1 gpm .060 cc 92-107 lbs. 125-145 N
1-1/2" 400 bar 5,800 psi 400 bar 5,800 psi 270 bar 3,915 psi 1,700 bar 15,950 psi 1,100 bar 15,950 psi 800 bar 11,600 psi 288 lpm 76.3 gpm .200 cc 114-129 lbs. 155-175 N
2" 350 bar 5,080 psi 350 bar 5,080 psi 270 bar 3,915 psi 1,100 bar 15,950 psi 1,100 bar 15,950 psi 800 bar 11,600 psi 379 lpm 100.4 gpm .350 cc 236-258 lbs. 320-355 N
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Connected Length
FD96 Series | Female SAE O-Ring Boss
Part Number Body
Size		 Port
Size		 Coupling
Type		 Thread Type Figure Dimensions Dust Cap/Plug
Part Number
A B Hex 1 Plug & Socket
Connected Length
L
FD96-1004-06-04 1/4" 3/8" Socket/Female 9/16-18 UNF Female SAE ORB 2 2.25"
(57.1mm)		 1.53"
(38.8mm)		 1.06"
(27mm)		 3.54"
(90.0mm)		 FD96-1009-04
FD96-1005-06-04 1/4" 3/8" Plug/Male 9/16-18 UNF Female SAE ORB 1 2.87"
(72.8mm)		 1.37"
(34.8mm)		 0.87"
(22mm)		 3.54"
(90.0mm)
FD96-1004-08-06 3/8" 1/2" Socket/Female 3/4-16 UNF Female SAE ORB 2 2.79"
(70.8mm)		 1.65"
(41.8mm)		 1.18"
(30mm)		 5.16"
(131.0mm)		 FD96-1009-06
FD96-1005-08-06 3/8" 1/2" Plug/Male 3/4-16 UNF Female SAE ORB 1 3.43"
(87.0mm)		 1.49"
(37.8mm)		 1.06"
(27mm)		 5.16"
(131.0mm)		 FD96-1010-06
FD96-1004-12-08 1/2" 3/4" Socket/Female 1-1/16-12 UNF Female SAE ORB 2 3.06"
(84.8mm)		 1.96"
(49.8mm)		 1.42"
(36mm)		 6.30"
(160.0mm)
FD96-1005-12-08 1/2" 3/4" Plug/Male 1-1/16-12 UNF Female SAE ORB 1 3.95"
(100.4mm)		 1.80"
(45.8mm)		 1.42"
(36mm)		 6.30"
(160.0mm)
FD96-1004-12-12 3/4" 3/4" Socket/Female 1-1/16-12 UNF Female SAE ORB 2 3.34"
(84.9mm)		 2.12"
(53.8mm)		 1.61"
(41mm)		 6.50"
(165.0mm)
FD96-1005-12-12 3/4" 3/4" Plug/Male 1-1/16-12 UNF Female SAE ORB 1 4.02"
(102.0mm)		 1.96"
(49.8mm)		 1.42"
(36mm)		 6.50"
(165.0mm)
FD96-1004-12-16 1" 3/4" Socket/Female 1-1/16-12 UN Female SAE ORB 2 3.93"
(99.7mm)		 2.31"
(58.8mm)		 1.81"
(46mm)		 - FD96-1009-16
FD96-1005-12-16 1" 3/4" Plug/Male 1-1/16-12 UN Female SAE ORB 1 4.55"
(115.6mm)		 2.16"
(54.8mm)		 1.81"
(46mm)		 - FD96-1010-16
FD96-1004-20-20 1-1/4" 1-1/4" Socket/Female 1-5/8-12 UN Female SAE ORB 2 4.20"
(106.8mm)		 2.75"
(69.8mm)		 2.17"
(55mm)		 -
FD96-1005-20-20 1-1/4" 1-1/4" Plug/Male 1-5/8-12 UN Female SAE ORB 1 4.86"
(123.4mm)		 2.54"
(64.5mm)		 2.17"
(55mm)		 -
FD96-1004-24-24 1-1/2" 1-1/2" Socket/Female 1-7/8-12 UN Female SAE ORB 2 5.26"
(133.5mm)		 3.62"
(92.0mm)		 2.56"
(65mm)		 10.08"
(256.0mm)
FD96-1005-24-24 1-1/2" 1-1/2" Plug/Male 1-7/8-12 UN Female SAE ORB 1 5.91"
(150.0mm)		 3.54"
(89.8mm)		 2.56"
(65mm)		 10.08"
(256.0mm)

Additional Product Data:

Brand:
  • Hansen
Series:
  • FD96 Series
Shape:

Straight
