FD90-1206-04-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 1/4" Male O-Ring Face Seal Bulkhead x 1/4" SAE J1502 Interchange | Plug | NBR Seal | Valved | Steel

FD90-1206-04-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 1/4" Male O-Ring Face Seal Bulkhead x 1/4" SAE J1502 Interchange | Plug | NBR Seal | Valved | Steel

Sale price$52.78
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Automatic sleeve for one hand push-to-connect operation.
  • Flush face valving provides minimal fluid loss and low air inclusion.
  • Self-sealing valve design allows connection and disconnection at 500 psi.
Applications & Markets:
  • Diagnostic pressure testing for hydraulic systems.
Materials:
  • Standard body material: High resistance carbon steel with Zinc trivalent plating.
  • Standard seal materials: Nitrile (NBR)
Coupling Body Size Max. Operating Pressure
Connected		 Minimum Burst Pressure
Connected Only		 Vacuum Rated Flow Air Inclusion Fluid Loss
bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4" 483 bar 7,000 psi 1,931 bar 28,000 psi 28 in./Hg 1.89 lpm 0.6 gpm 0.02 cc. max 0.10 cc. max

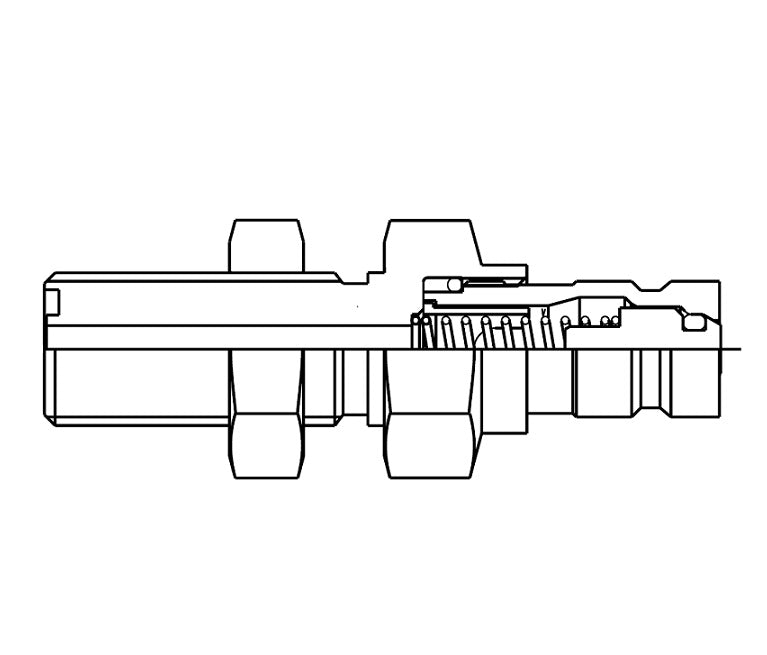

Plug/Male | Figure 1
Dimensions (Male ORS Bulkhead, Valved)
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
NBR A B Hex 1
FD90-1206-04-04 Plug/Male 1/4" 9/16 9/16-18 Male O-Ring Face Seal 1 2.46"
(62.5mm)		 0.81"
(20.6mm)		 0.81"
(20.6mm)

Additional Product Data:

Brand:
  • Hansen
Series:
  • FD90 Series
Shape:

Straight
