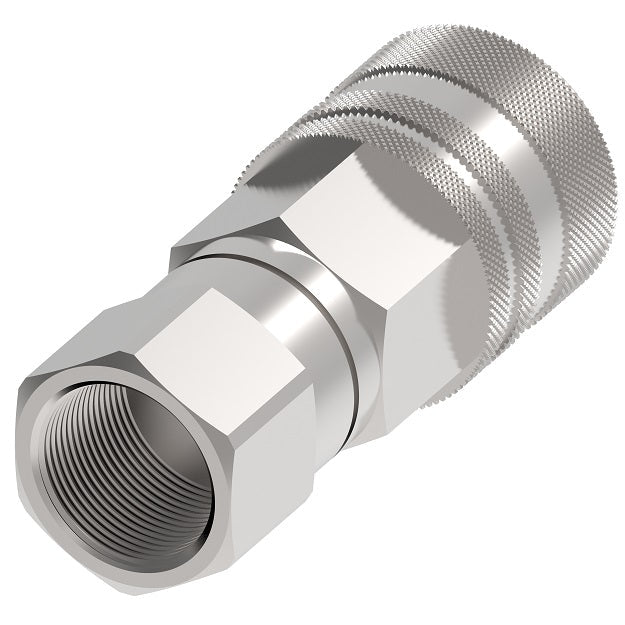

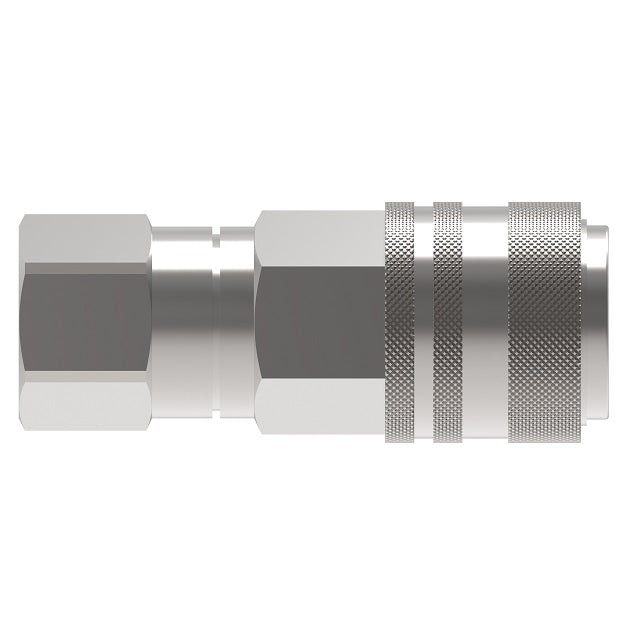

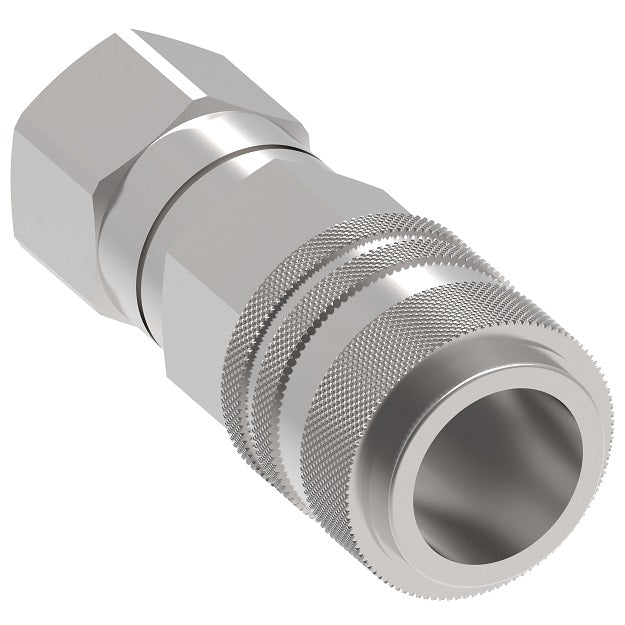

FD90-1041-04-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 1/4" Female SAE O-Ring x 1/4" SAE J1502 Interchange | Socket | NBR Seal | Valved | Steel
FD90-1041-04-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 1/4" Female SAE O-Ring x 1/4" SAE J1502 Interchange | Socket | NBR Seal | Valved | Steel
FD90-1041-04-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 1/4" Female SAE O-Ring x 1/4" SAE J1502 Interchange | Socket | NBR Seal | Valved | Steel

FD90-1041-04-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 1/4" Female SAE O-Ring x 1/4" SAE J1502 Interchange | Socket | NBR Seal | Valved | Steel

Sale price$63.00
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Automatic sleeve for one hand push-to-connect operation.
  • Flush face valving provides minimal fluid loss and low air inclusion.
  • Self-sealing valve design allows connection and disconnection at 500 psi.
Applications & Markets:
  • Diagnostic pressure testing for hydraulic systems.
Materials:
  • Standard body material: High resistance carbon steel with Zinc trivalent plating.
  • Standard seal materials: Nitrile (NBR)
Coupling Body Size Max. Operating Pressure
Connected		 Minimum Burst Pressure
Connected Only		 Vacuum Rated Flow Air Inclusion Fluid Loss
bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4" 483 bar 7,000 psi 1,931 bar 28,000 psi 28 in./Hg 1.89 lpm 0.6 gpm 0.02 cc. max 0.10 cc. max
Plug/Male | Figure 1
Dimensions (Female SAE O-Ring, Valved)
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
NBR A B Hex 1
FD90-1041-04-04 Plug/Male 1/4" 7/16 7/16-20 Female SAE O-Ring Boss 1 2.20"
(55.9mm)		 1.00"
(25.40mm)		 0.75"
(19.1mm)

Additional Product Data:

Brand:
  • Hansen
Series:
  • FD90 Series
Shape:

Straight

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
