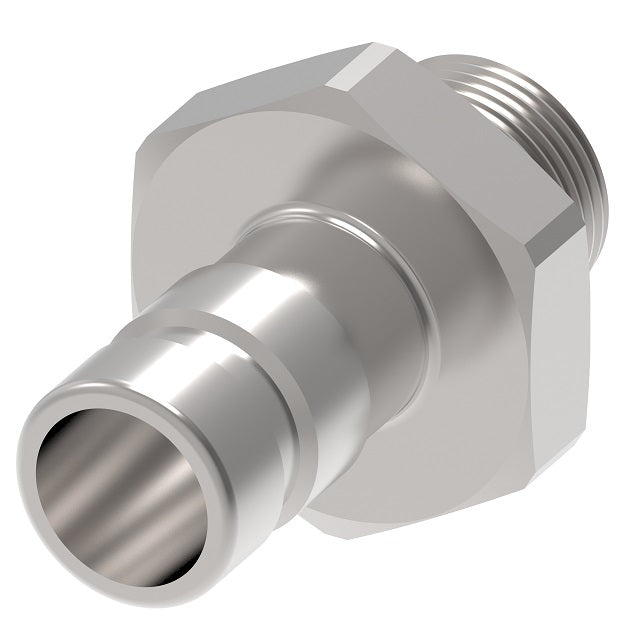

FD90-1004-06-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 3/8" Male SAE O-Ring Boss x 1/4" SAE J1502 Interchange | Plug | NBR Seal | Valved with Dust Cap | Steel
FD90-1004-06-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 3/8" Male SAE O-Ring Boss x 1/4" SAE J1502 Interchange | Plug | NBR Seal | Valved with Dust Cap | Steel
FD90-1004-06-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 3/8" Male SAE O-Ring Boss x 1/4" SAE J1502 Interchange | Plug | NBR Seal | Valved with Dust Cap | Steel

FD90-1004-06-04 Hansen® by Danfoss | Quick Disconnect Diagnostic Coupling | FD90 Series | 3/8" Male SAE O-Ring Boss x 1/4" SAE J1502 Interchange | Plug | NBR Seal | Valved with Dust Cap | Steel

Sale price$17.88
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Automatic sleeve for one hand push-to-connect operation.
  • Flush face valving provides minimal fluid loss and low air inclusion.
  • Self-sealing valve design allows connection and disconnection at 500 psi.
Applications & Markets:
  • Diagnostic pressure testing for hydraulic systems.
Materials:
  • Standard body material: High resistance carbon steel with Zinc trivalent plating.
  • Standard seal materials: Nitrile (NBR)
Coupling Body Size Max. Operating Pressure
Connected		 Minimum Burst Pressure
Connected Only		 Vacuum Rated Flow Air Inclusion Fluid Loss
bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4" 483 bar 7,000 psi 1,931 bar 28,000 psi 28 in./Hg 1.89 lpm 0.6 gpm 0.02 cc. max 0.10 cc. max
Plug/Male | Figure 1
Dimensions (Male SAE O-Ring Boss, Valved)
Part Number Part Number
with Dust Cap		 Coupling Type Body Size Port Size Thread Figure Dimensions
NBR NBR A B Hex 1
FD90-1044-03-04 FD90-1004-03-04 Plug/Male 1/4" 3/8" 3/8-24 Male SAE O-Ring Boss 1 1.52"
(38.6mm)		 - 0.62"
(15.7mm)
FD90-1044-04-04 FD90-1004-04-04 Plug/Male 1/4" 7/16" 7/16-20 Male SAE O-Ring Boss 1 1.58"
(40.1mm)		 - 0.62"
(15.7mm)
FD90-1044-05-04 FD90-1004-05-04 Plug/Male 1/4" 1/2" 1/2-20 Male SAE O-Ring Boss 1 1.32"
(33.5mm)		 - 0.62"
(15.7mm)
FD90-1044-06-04 FD90-1004-06-04 Plug/Male 1/4" 9/16" 9/16-18 Male SAE O-Ring Boss 1 1.32"
(33.5mm)		 - 0.69"
(17.5mm)

Additional Product Data:

Brand:
  • Hansen
Series:
  • FD90 Series
Shape:

No Orientation

Danfoss (Eaton - Aeroquip)
