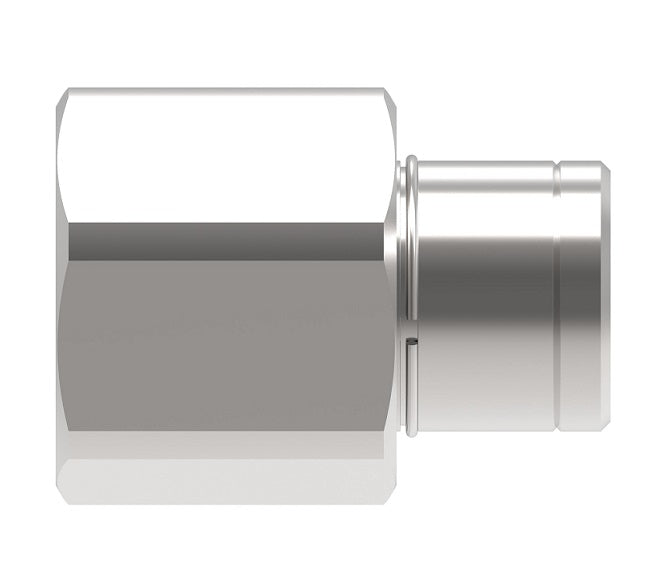

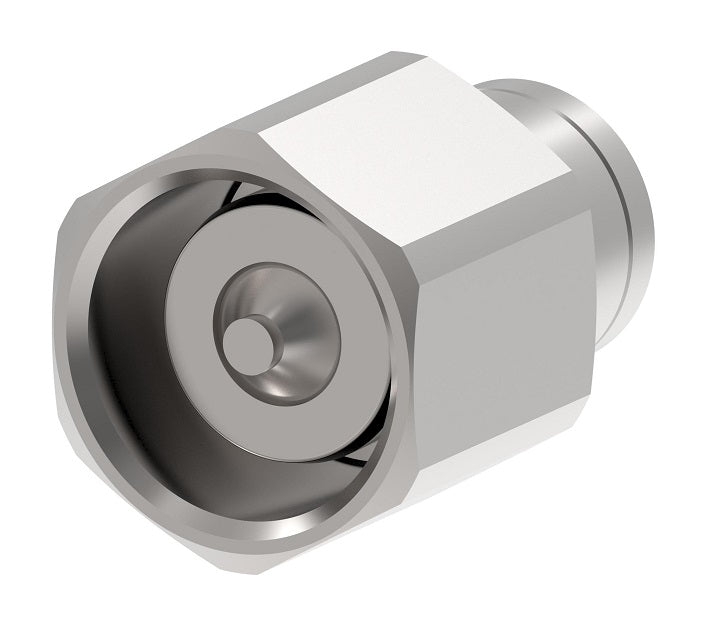

FD85-1003-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | FD85 Series | 3/4" Female NPT x 3/4" Thread to Connect (Hex Nut) | Socket | NBR Seal | Steel
FD85-1003-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | FD85 Series | 3/4" Female NPT x 3/4" Thread to Connect (Hex Nut) | Socket | NBR Seal | Steel
FD85-1003-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | FD85 Series | 3/4" Female NPT x 3/4" Thread to Connect (Hex Nut) | Socket | NBR Seal | Steel

FD85-1003-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | FD85 Series | 3/4" Female NPT x 3/4" Thread to Connect (Hex Nut) | Socket | NBR Seal | Steel

Sale price$125.68

Hansen® by Danfoss
FD85 Series | Thread to Connect

Fluid Transfer and Hydraulic Quick Disconnect Coupling

The Danfoss Hansen FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are present.
Buy More, Save More!
Quantity Price Each
5–19 $118.14
20–59 $106.83
60+ $94.26
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • FD85 Series
Shape:

Straight
Product Features:
  • Thread to connect feature allows for use in high vibration and impulse applications.
  • Connect under pressure capability up to 5,000 psi (345 bar).
  • Wing nut and hex flat design allows for easy connection and disconnection.
  • 3/4" design is offered in a hex nut design.
Applications & Markets:
  • Oilfields
  • Offshore Drilling
  • Construction
  • Oil and Gas
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal materials: Nitrile (NBR).
Lloyd's Register Certification:
  • The FD85 Series carries a Lloyd's Registry Certificate for fire conditions outlined in API 16D and EUB Directive 36. These parts meet the requirements that couplings shall be capable of maintaining pressure when exposed to a 700ºC (1,300ºF) temperature for a five-minute period in connected state.
  • Certification only applies to those assemblies where both mating parts socket/female and plug/male are Danfoss FD85 Series thread to connect couplings.
Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow Fluid Loss Air Inclusion
Connected Plug/Male Half Socket/Female Half Connected Plug/Male Half Socket/Female Half
3/4" 345 bar 5,000 psi 345 bar 5,000 psi 345 bar 5,000 psi 1,380 bar 20,000 psi 1,380 bar 20,000 psi 1,380 bar 20,000 psi 100 L/min 26.4 gpm 10 ml-cc 10 ml-cc
1" 345 bar 5,000 psi 345 bar 5,000 psi 345 bar 5,000 psi 1,380 bar 20,000 psi 1,380 bar 20,000 psi 1,380 bar 20,000 psi 189 L/min 50 gpm 20 ml-cc 26 ml-cc
1-1/2" 345 bar 5,000 psi 345 bar 5,000 psi 345 bar 5,000 psi 1,035 bar 15,000 psi 1,035 bar 15,000 psi 1,035 bar 15,000 psi 379 L/min 100 gpm 83 ml-cc 85 ml-cc
Plug/Male (Figure 1)
Socket/Female
Wing Nut Style (Figure 2)
Socket/Female
Hex Nut Style (Figure 3)
FD85 Series | Thread to Connect
Part Number Coupling
Type		 Body
Size		 Thread Figure Dimensions
NBR A B C A/F D E F G A/F
FD85-1001-12-12 Plug/Male 3/4" 3/4-14 Female NPT 1 1.39"
(35.2mm)		 3.27"
(83.1mm)		 1.74"
(44.3mm)		 1-1/3"
(33mm)		 - - - - -
FD85-1003-12-12 Socket/Female 3/4" 3/4-14 Female NPT 3 - - - - 1.94"
(49.2mm)		 2.17"
(55mm)		 1.74"
(44.3mm)		 1.39"
(35.2mm)		 1-1/3"
(33mm)
FD85-1001-16-16 Plug/Male 1" 1-11-1/2 Female NPT 1 1.77"
(45mm)		 4.17"
(106mm)		 2.25"
(57.1mm)		 1-5/8"
(41mm)		 - - - - -
FD85-1003-16-16 Socket/Female 1" 1-11-1/2 Female NPT 2 - - - - 2.68"
(68mm)		 4.25"
(108mm)		 2.2"
(56mm)		 1.77"
(45mm)		 1 5/8"
(41mm)
FD85-1001-24-24 Plug/Male 1-1/2" 1-1/2-11-1/2 Female NPT 1 2.5"
(63.5mm)		 5.99"
(152.2mm)		 3.25"
(82.55mm)		 2-3/8"
(60mm)		 - - - - -
FD85-1003-24-24 Socket/Female 1-1/2" 1-1/2-11-1/2 Female NPT 2 - - - - 3.66"
(93mm)		 5.67"
(144mm)		 3.31"
(84mm)		 2.5"
(63.5mm)		 2-3/8"
(60mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
